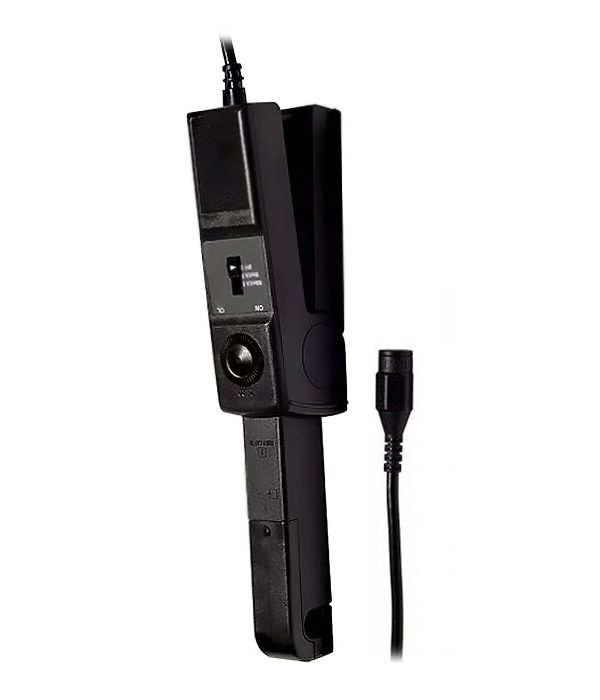

Chauvin-Arnoux E3N AC/DC Current Clamp
Click to enlarge

    Chauvin-Arnoux E3N AC/DC Current Clamp

    Compare
    1 Comments

    The Chauvin-Arnoux E3N clamp utilizes Hall-effect technology to measure AC and DC currents. Because of its narrow, elongated design, it is perfect for measurements inside cable bundles or in confined areas like the wiring on switchboards, motor control units, and automotive electrical circuits.

    Terms of sending goods ›
    • In-stock items are delivered within 2 business days.
    • We are not Supporting COD Payments Terms Outside UAE
    • For out-of-stock items, delivery may take 2 to 4 business weeks.
    SKU: 27788 Categories: ,
    Brand:Chauvin-Arnoux

    Show Price on WhatsApp

    Order Via phone number
    In stockDelivers in 2-3 business days.
    Description

    Chauvin-Arnoux E3N AC/DC Current Clamp With Power Supply Adapter

    The Chauvin-Arnoux E3N clamp utilizes Hall-effect technology to measure AC and DC currents. Because of its narrow, elongated design, it is perfect for measurements inside cable bundles or in confined areas like the wiring on switchboards, motor control units, and automotive electrical circuits.

    It is especially appreciated for its True RMS measurements on AC+DC signals. It offers 2 different sensitivities.

    The E3N variant has an integrated power supply adapter that powers the device and enables the collection of a wider range of current measurements. With a frequency response range of 40Hz to 1kHz, it can measure current up to 60A AC/DC.

    Chauvin-Arnoux E3N Features

    • Rated current: 100 A DC or peak
    • Output signal: DC and AC voltage
    • Output/input ratio: 100 mV / mA, 10 mV / A
    • Output via coaxial cable and isolated BNC male plug

    Chauvin-Arnoux E3N Specifications

    Specification Details
    Current Range 0.1 A … 10 A peak, 0.5 A … 100 A peak
    Output Signal 100 mV AC+DC / A AC+DC (1 V for 10 A), 10 mV AC+DC / A AC+DC (1 V for 100 A)
    Shock Resistance 100 g / 6 ms / half-period (IEC 68-2-27)
    Battery 9 V alkaline (NEDA 1604A, IEC 6LR61)
    Battery Life 55 hours typical
    Clamping Capacity Cable: Ø max 11.8 mm
    Output Via 2 m coaxial cable terminated by BNC insulated plug
    Dimensions 231 x 67 x 36 mm
    Weight 330 g with battery
    Operating Temperature 0° to +50°C
    Storage Temperature -30°C to +80°C
    Shock Resistance 100 g / 6 ms / half-period (IEC 68-2-27)
    Vibration Resistance 10/55/10 Hz, 0.15 mm (IEC 68-2-6)
    Datasheet

    Datasheet

    Mme-pdfs-image

    Specifications

    Specifications

    Chauvin-Arnoux E3N Specifications

    Specification Details
    Current Range 0.1 A … 10 A peak, 0.5 A … 100 A peak
    Output Signal 100 mV AC+DC / A AC+DC (1 V for 10 A), 10 mV AC+DC / A AC+DC (1 V for 100 A)
    Shock Resistance 100 g / 6 ms / half-period (IEC 68-2-27)
    Battery 9 V alkaline (NEDA 1604A, IEC 6LR61)
    Battery Life 55 hours typical
    Clamping Capacity Cable: Ø max 11.8 mm
    Output Via 2 m coaxial cable terminated by BNC insulated plug
    Dimensions 231 x 67 x 36 mm
    Weight 330 g with battery
    Operating Temperature 0° to +50°C
    Storage Temperature -30°C to +80°C
    Shock Resistance 100 g / 6 ms / half-period (IEC 68-2-27)
    Vibration Resistance 10/55/10 Hz, 0.15 mm (IEC 68-2-6)
    Reviews (1)
    5
    1 review
    1
    0
    0
    0
    0

    1 review for Chauvin-Arnoux E3N AC/DC Current Clamp

    Clear filters

    1. rose –

      Value for money
      Durability
      Delivery speed

      As an electrician, I appreciate the accuracy of the Chauvin-Arnoux E3N.
