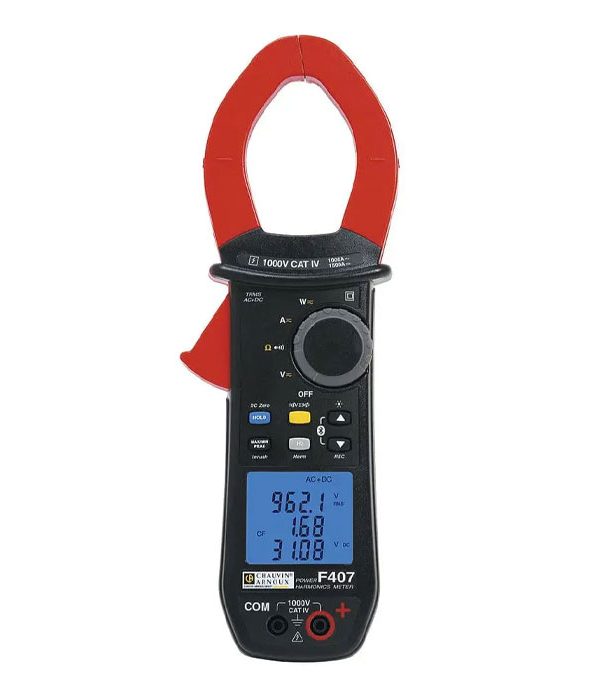

Chauvin Arnoux F407 Power/Harmonics Clamp Meter
Brand:
Chauvin-Arnoux
SKU:
27697
The Chauvin-Arnoux F407 clamp is ideal for medium and low-voltage networks in low-voltage power generation and distribution, industry, railways, etc. It is also suitable for rig builders and other professionals in lifting and handling equipment. transfer. Maintenance, testing, monitoring, diagnostics, and connection are the main applications of this clamp line.
- Safe Buy
- Fast Delivery
- Original Guarantee
- Online Payment
Description
Chauvin Arnoux F407 Clamp Multimeter
The Chauvin Arnoux F407 clamp meter is ideal for medium and low-voltage networks in low-voltage power generation and distribution, industry, railways, etc. It is also suitable for rig builders and other professionals in lifting and handling equipment. transfer. Maintenance, testing, monitoring, diagnostics, and connection are the main applications of this clamp line.
The rapid 12-bit TRMS digital acquisition mechanism included in chauvin arnoux F407 clamps allows for extremely precise readings. These clamps ensure precise readings regardless of the kind of signal because of their wide bandwidth and high crest factor.
All the devices in this range come standard with automatic AC/DC detection and IP54 protection. The 10,000-count big illuminated display makes it simple to read in any situation. It is easy to operate because each position of the rotary switch corresponds to a specific function.
Chauvin-Arnoux F407 Features
- Measurements up to 3,000 A AC/DC/AC+DC
- 60 mm clamping diameter!
- True-Inrush function to measure all types of inrush!
- Complete analysis of harmonic orders
- Continuous recording & Bluetooth PC communication
Datasheet
Datasheet
Technical data
Technical data
| Specification | F407 |
|---|---|
| Current (RMS) – AC | 1% ±3 pts, up to 1,000 A |
| Current (RMS) – DC and AC+DC | Up to 1,500 A peak |
| Voltage (RMS) – AC | 1% ±3 pts, 200 mV to 1,000 V |
| Voltage (RMS) – DC and AC+DC | 200 mV to 1,000 V |
| Auto AC/DC | Yes (V and A) |
| Ripple | Yes |
| Resistance | 100 kΩ |
| Continuity / buzzer | Yes (<40 Ω) |
| Power W, var, VA | Yes, single and total three-phase |
| Crest factor (CF) | Yes |
| PF and cos φ (DPF) | Yes / Yes |
| Auto-shutdown | Yes |
| Hold function | Yes |
| Backlighting function | Yes |
| Min/Max key | Yes |
| Peak + / Peak – function | Yes / Yes |
| True-Inrush function | Yes |
| THD-f / THD-r harmonics function | Yes / Yes |
| Breakdown into harmonic orders | Yes |
| REC recording function | Yes |
| Recordings (with Min/Max) | Up to 3,000 measurements |
| BT Bluetooth communication function | Yes |
| Hz function | Yes |
| Clamping diameter | Ø 48 mm |
| Mechanical protection | IP54 |
