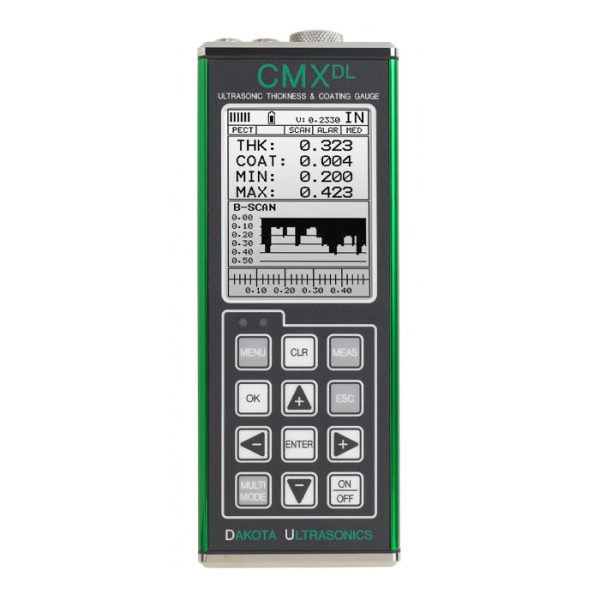

DAKOTA ULTRASONICS CMX DL THICKNESS

DAKOTA ULTRASONICS CMX DL THICKNESS SOUND SOLUTIONS

DAKOTA ULTRASONICS CMX DL THICKNESS v2.0 has all the features of CMX plus a large capacity of 4GB using multiple file structures and a graphic capture feature for quick documentation in a file format (.tif). Select one of the file formats: sequential (with automatic identification) or standard alphanumeric raster format for data communication.

Kit includes DakView Java software for PC or MAC OSX to download, view and create custom reports. Export to .csv format for importing into word processors or spreadsheet-based software packages. USB-C connectivity. To buy the DAKOTA ULTRASONICS CMX DL THICKNESS device with the best quality and the lowest price, visit our experts.

DAKOTA ULTRASONICS CMX DL THICKNESS FEATURES

• Measurement Modes: Pulse-Echo, Coated Pulse-Echo, Temperature Compensated Pulse-Echo, Echo-Echo, Echo-Echo Verification, & Coating only.
• Automatic: probe zero point, probe recognition, and temperature compensation.
• Stores up to 64 custom settings for specific applications.
• Fast scan up to 250 readings per second.
• audible/visual alarm with high and low limit settings.
• Integrated differential mode for quality control.
• time-based B-scan for cross-scanning materials.
• data storage formats: Alphanumeric and sequential grid with automatic identification.
• software for PC Windows or MAC OSX included.
• 2-Year Limited Warranty.[/toggle]

DAKOTA ULTRASONICS CMX DL THICKNESS SPECIFICATIONS

• Weight: 13.5 ounces (with batteries), Size: 2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm).
• Operating Temperature: -14° to 140°F (-10° to 60°C).
• Keyboard: Membrane switch with twelve tactile keys.
• Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
• Data Output: USB-C port. Windows® PC interface software.
• Display: 1/8 in. VGA grayscale display
  (240 x 160 pixels). Viewable area 2.4 x 1.8 in. (62 x 45.7mm), EL backlit (on/off/auto).
• Range: Pulse-Echo Mode (P-E): (Pit &law Detection) measures from 0.025 48.0 inches (0.63 to 1219.2 millimeters).
• Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection): Material: 0.025 to 48.0 inches (0.63 to 1219.2 millimeters). Coating: 0.001 to 0.100 inches (0.01 to 2.54 millimeters).
• Pulse-Echo Temp Comp Mode (PETP): (Pit &law Detection) Auto temperature compensation – measures from 0.025 48.0 inches (0.63 to 1219.2 millimeters).
• Echo-Echo Mode (E-E): Thru Paint & Coatings) measures from 0.100 to 6.0 inches (2.54 to 152.4 millimeters). The range will vary +/- depending on the coating.
• Echo-Echo Mode (E-EV): Thru Paint & Coatings) measures from 0.050 to 1.0 inches (1.27 to 25.4 millimeters). Will vary based on coating.
• Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.0127 to 2.54 millimeters). The range will vary +/- depending on the coating.
• Resolution: +/- .001 inches (0.01 mm)
• Velocity Range: .0122 to .7300 in./ms (309.88 to 18542 meters/sec)
• Calibration: Single and Two point calibration options for material & coating, or selection of basic material types.
• Units: English & Metri
• Log Formats: Grid (alphanumeric) Sequential (auto identifier), Capacity: 4 Gb internal SD card, Screen Capture: Bitmap graphic capture for quick documentation (.tif), OBSTRUCT to indicate inaccessible locations.
• Output: Direct USB-C 1.1 PC connectivity, Transducer Connections: Two LEMO 00 connectors.
• Transducer Types: Dual Element (1 to 10 MHz), Locking quick disconnect “00” LEMO connectors.
• Standard 4-foot cable, Custom transducers, and cable lengths are available for special applications.
• Factory calibration is traceable to NIST & MIL-STD-45662A.
• Line Power: USB to PC or power outlet, Three 1.5V alkaline or 1.2V NiCad AA cells, Alkaline: grayscale 35 hrs, color 12 hrs, Nicad: grayscale 10 hrs, color 5 hrs, NI-MH: grayscale 35 hrs, color 12 hrs, Power saving DIM (color), Auto power off if idle 5 min, Battery status icon.
• Display Views: Large Digits Standard thickness view. Digit Height: 0.700 in (17.78 mm), B-Scan – Time-based cross-section view,  The display speed of 15 secs per screen.  Scan Bar 6 readings per second,  Viewable in B-Scan and Large Digit views., Repeatability Bar Graph Bar graph indicates the stability of the reading, Feature Status Bar – Indicates features currently active.
• Measurement Modes: Coating Off: Pulse-Echo (P-E), Coating On Pulse-Echo Coating (PECT), Temp Comp: Pulse-Echo (PETP), Thru-Paint: Echo-Echo (E-E), Thru-Paint Verify: Echo-Echo Verify (E-EV)
  Coating Only: Coating (CT), Pulser: Dual square wave pulses, Receiver: Dual receivers – manual or AGC gain control with 110dB range (limited), Timing: Precision TCXO timing with single shot 100MHz 8-bit ultra low power digitizer.
