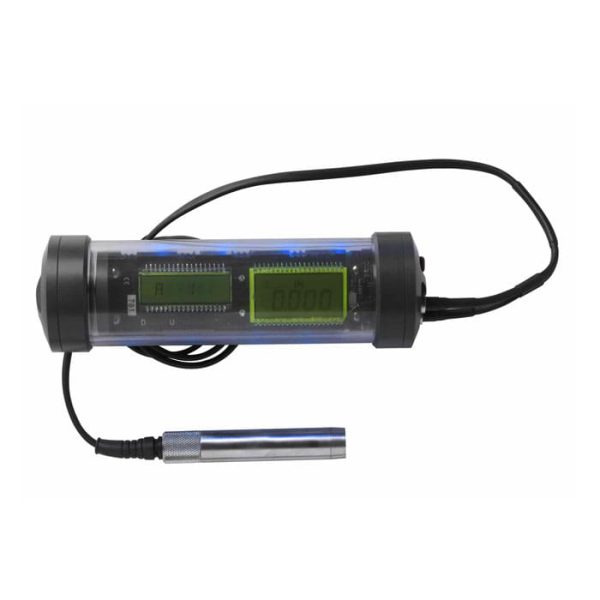

DAKOTA ULTRASONICS UMX-2 THICKNESS

DAKOTA ULTRASONICS UMX-2 THICKNESS SOUND SOLUTIONS

The DAKOTA ULTRASONICS UMX-2 THICKNESS underwater coating and material thickness gauge is designed for the marine inspection up to a depth of 300 meters (1000 feet). The UMX-2 has a wide range of applications and offers dual and single-element converters. With multiple measurement mode options, the UMX-2 meets all application needs.

Built-in 5000-point data logger, all UMX-2 parameters are stored for each measurement with the actual A-scan waveform. Our Java-based DakView software for PC or MAC OSX does just that A very useful piece of kit.  Buy DAKOTA ULTRASONICS UMX-2 THICKNESS  suitable for marine inspection up to a depth of 1000 feet (300 meters) with the best quality and the lowest price from our experts.

DAKOTA ULTRASONICS UMX-2 THICKNESS FEATURES

• Measurement Modes: Dual Element – Pulse-Echo, Coated Pulse-Echo, Echo-Echo. Single Element – Triple Echo (TCG).
• Automatic: probe zero point and probe detection.
• data storage formats: Alphanumeric and sequential grid with automatic identification. Includes Windows
  PC software.
• 3-Year Limited Warranty.

DAKOTA ULTRASONICS UMX-2 THICKNESS SPECIFICATIONS

• Weight: 1.5 lbs (0.680kg) – with 3 AA batteries, Size: Length (9.0 in/229 mm), Diameter (2.375 in/60.33 mm)
• Operating Temperature: -20° to 140°F (-29° to 60°C).
• Keyboard: Single button, magnetically coupled switch.
• Underwater Case: High-strength transparent plastic housing. Depth rating of 1000 feet (300 meters).
• Data Output: Bi-directional RS232 serial port, with USB converter. Windows® PC interface software.
• Display:1/2in (12.7mm) 4.5 digit LCD display, 3/8in (9.5mm) 6 alpha LCD display, Both displays backlit (on/off/auto).
• Measurement Modes: Dual Element Probes Pulse-Echo (P-E): Coating Off, Pulse-Echo Coating (PECT): Coating On Echo-Echo (E-E): Thru-Paint, Single Element Probes Triple-Echo (TCG): Thru-Paint, Pulser: Dual square wave pulses, Receiver: Dual receivers – manual or AGC gain control with 110dB range (limited), Timing: 25 MHz TCXO with single shot 100 MHz 8-bit ultra low power digitizer.
• Three 1.5V alkaline or 1.2V NiCad AA cells. Continuous operation
• Backlight Off: Typically operates for 50 hours on alkaline and 15 hours on NiCad,
• Backlight On Typically operates for 15 hours on alkaline and 8 hours on Nicad.
  (charger not included.), Auto power off if idle 5 min, Battery status displayed on power up.
• Range: Pulse-Echo Mode (P-E): (Pit &law Detection) measures from 0.025 19.999 inches (0.63 to 500 millimeters).
• Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection): Material: 0.025 to 19.999 inches (0.63 to 500 millimeters). Coating: 0.001 to 0.100 inches (0.01 to 2.54 millimeters).
• Echo-Echo Mode (E-E): Thru Paint & Coatings) measures from 0.100 to 4.0 inches (2.54 to 102 millimeters). The range will vary +/- depending on the coating.
• Triple-Echo Mode (TCG): Thru Paint&Coatings) measures from 0.040 to 6.0 inches (1 to 150 millimeters) in steel. The range will vary based on coating thickness, material type, and probe.
• Resolution: +/- .001 inches (0.01 mm)
• Velocity Range: .0492 to .5510 in./µs 1250 to 13995 meters/sec, Units: English & Metric
• Calibration: 8 fixed and 1 programmable Material Velocities (in/µs): 1. Aluminum 2024 – .251
  2. Steel 4340 – .233,  3. Stainless Steel 302 – .223,  4. Iron – .232,   5. Cast Iron – .180,   6. PVC – .094, 7. Polystyrene – .092,   8. Polyurethane- .070,  9. Custom User
• Segmented Displays: 4.5 Digit LCD – Primary Measurement display, 6 Character LCD – Display menu options, Repeatability Bar Graph indicates the stability of reading.
• File Formats: Grid (alphanumeric) Sequential (auto identifier)
• Programming: Storage capacity of 1 file template. Size and dimension specified by the user.
• Storage Capacity: 5,000 readings, settings, and waveform graphics.
• Memory: 32 megabits of non-volatile ram.
• Auto Probe Zero: Applies to dual-element probes only.
• Transducer Types: Dual Element 1 to 10 MHz frequency range. Custom auto recognition probes. (flaw & pit detection).
• Single Element: 1 to 10MHz frequency range (general purpose), LEMO underwater connectors, Standard 4-foot cable, Custom transducers, and cable lengths are available for special applications.
• Factory calibration: traceable to national standards., IP68 rating.
• 3-year limited.
