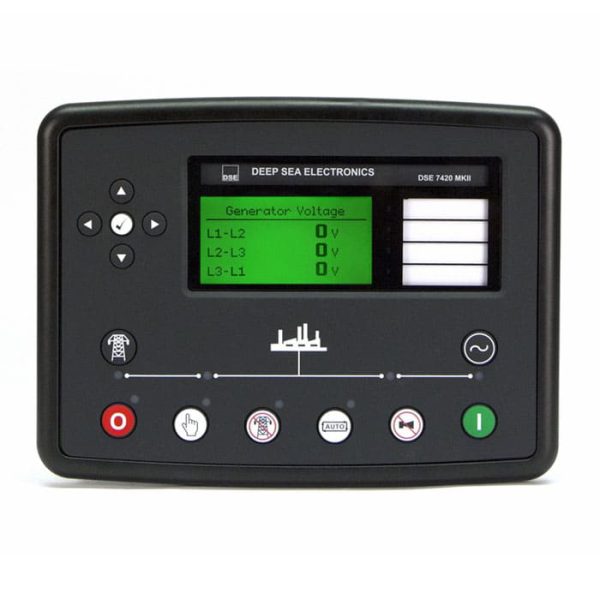

DEEPSEA 7420 MKII Auto Mains Failure Control Module

DEEPSEA 7420 MKII Auto Mains Failure Control Module

The DSE7420 MKII is a powerful and intelligent automatic power failure control module with advanced features and functions. The control module is the first in the DSE range to include built-in SNMP and has an integrated web server. This module is suitable for a wide range of gas applications and single-assembly diesel engines.

DEEPSEA 7420 MKII Auto Mains Failure Control Module Specifications:

• FREQUENCY RANGE:3.5 Hz to 75 Hz
• VOLTAGE RANGE:+/- 0.5 V to 70 V
• DIGITAL INPUTS A TO H: Negative switching
• FREQUENCY RANGE:10,000 Hz (max)
• OUTPUTS C & D:8 A AC at 250 V AC (Volt-free)
• OVERALL SIZE: 245 mm x 184 mm x 51 mm (9.6” x 7.2” x 2.0”)
• PANEL CUTOUT SIZE: 220 mm x 160 mm (8.7″ x 6.3″)
• MAXIMUM PANEL THICKNESS: 8.0 mm (0.3”)
• WEIGHT: 0.88kg
• KEY BENEFIT: Choose to power up the module in stop/manual/auto mode.
• KEY BENEFIT: Major design changes added to V7 to make the GUI easier to understand
• KEY BENEFIT: Major design changes added to V7 to make the GUI easier to understand
• KEY BENEFIT: Powerful PLC editor functionality as standard.
