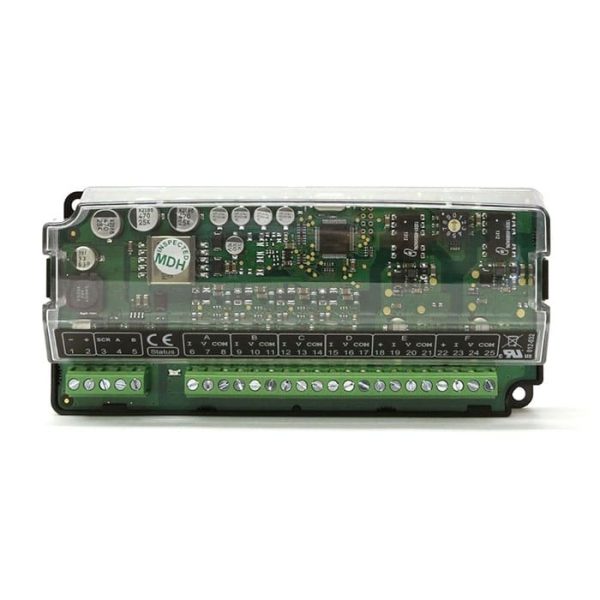

DEEPSEA DSE2152 Control Module High Accuracy!

Buy DEEPSEA DSE2152 Control Module With Best Price!

The DSE2152 Analogue Output Expansion Module is used in conjunction with supported DSENet controllers to provide 6 additional outputs. The outputs can be individually configured as 0 to 10 V or 4 to 20 mA, via the host controller’. LED indication is provided for ‘Power On’ and ‘Link Lost’ The DSE2152 is designed to be mounted within a control panel, either on the panel DIN rail utilising the integral mounts, or chassis mounted, utilising the mounting holes.

DEEPSEA DSE2152 Control Module specifications

• DC SUPPLY: 8V to 35V continuous
• MAXIMUM OPERATING CURRENT:56 mA at 12 V, 20 mA at 24 V
• OUTPUT A, B, C & D: Non-Isolated
  Configurable As: 4 – 20 mA DC or
  0 V to 10 V DC
• OUTPUT E & F: Optional Isolation
  Configurable As: 4 – 20 mA DC or
  0 V to 10 V DC
• WEIGHT: 0.24kg
  PRODUCT VARIANTS: 2152-01 – 2152 Analogue Output Expansion Module
