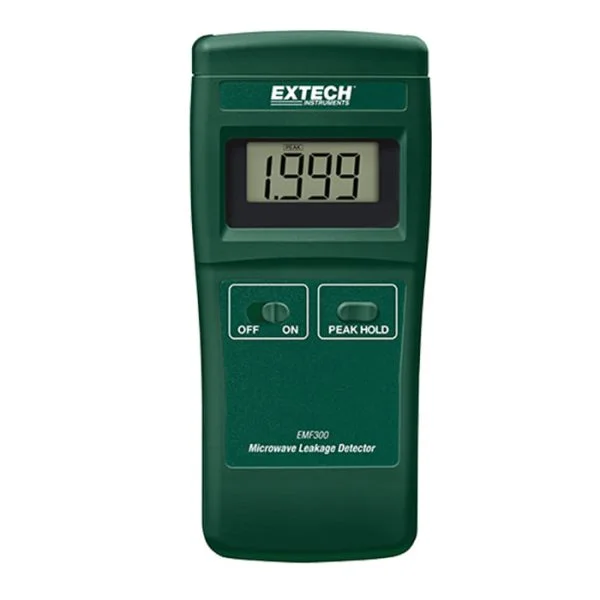

EXTECH EMF300 Microwave Leakage Detector

EXTECH EMF300 Microwave Leakage Detector

The EMF300 is a small microwave leakage detector used to measure the levels of high frequency radiation. It is a simple, small microwave leakage detector designed to assess the amounts of high frequency radiation emitted by household and commercial microwave ovens.

EXTECH EMF300 Microwave Leakage Detector specifications

• Display LCD display
  Display size 40 x 25mm (1.6 x 1.0″)
  Digit height 12mm (0.5″)
• Peak Hold Captures the highest reading when engaged
• Measurement ranges 0 to 1.999 mW/cm²
• Accuracy <2db (1mW/cm² @ 2.45GHz ±50MHz)
• Alarm Setting Audible alarm if level is >1mW/cm²
• Over range indication “OL” appears on the LCD
• Power supply 9V Battery
• Power consumption 2.7mA DC approximate
• Operating Frequency 2.45 GHz ±50MHz (30MHz to 3GHz for reference only)
• Operating conditions Temperature: 0 to 50o C (32 to 122o F); Humidity:< 80% RH
• Dimensions 152 x 69 x 36.3mm (6.0 x 2.7 x 1.4″)
• Sensor size 50mm (2″); located on the rear of the instrument directly behind the LCD display
• Weight Approx. 202g (7.1 oz.)
