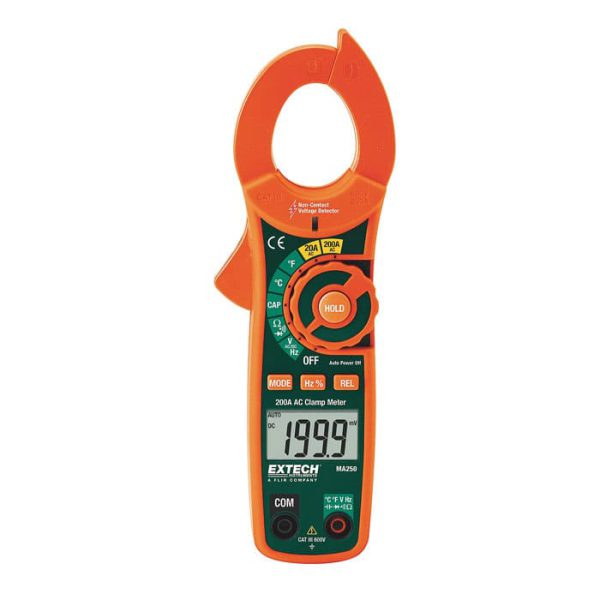

EXTECH MA250 200A AC Clamp Meter NCV

EXTECH MA250 200A AC Clamp Meter NCV

Maintenance workers, electricians, and do-it-yourselfers can all benefit from a test instrument that offers a high level of features and value in the form of the portable Extech MA250 200 amp AC/DC clamp meter. It has a built-in non-contact voltage (NCV) detector in addition to a wide range of basic multimeter functions and current measurement capabilities. In addition to noninvasive current probe measurements, measuring functions also include voltage, resistance, capacitance, frequency, duty cycle, diode, and continuity checks. Even measure the temperature with the Type K bead wire temperature probe that is included.

EXTECH MA250 200A AC Clamp Meter NCV Specifications:

• Display counts:4000 count LCD
• Jaw size/Cable size: 1.2″ (30mm); 350MCM
• AC Current: 20A, 200A
• Max Resolution:0.01A (AC)
• Basic ACA Accuracy (% rdg) :±2.5%
• AC Voltage (Max Res.):600V (0.1mV)
• DC Voltage (Max Res.): 600V (0.1mV)
• Resistance (Max Res.):40.00MΩ (0.1Ω)
• Capacitance (Max Res.):100µF (0.01nF)
• Frequency (Max Res.):10kHz (1Hz)
• Temperature:-4 to 1400°F (-20 to 760°C)
