Description

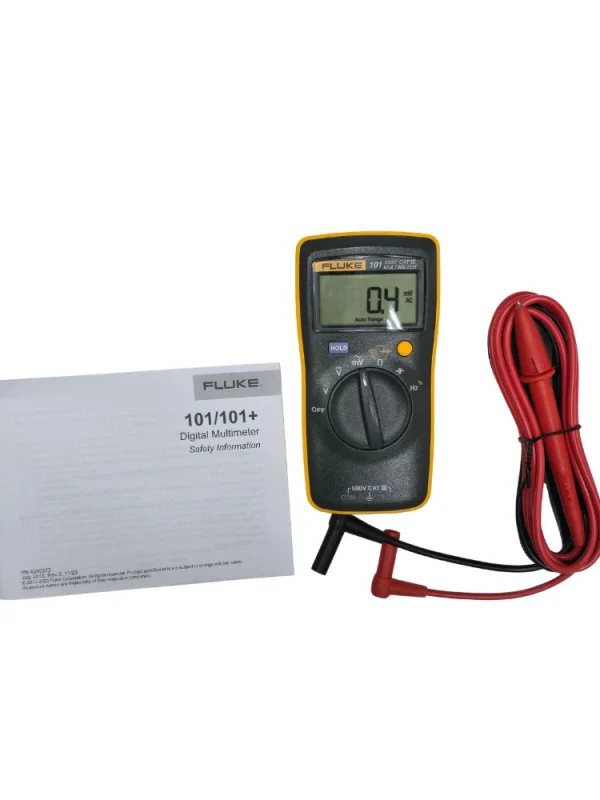

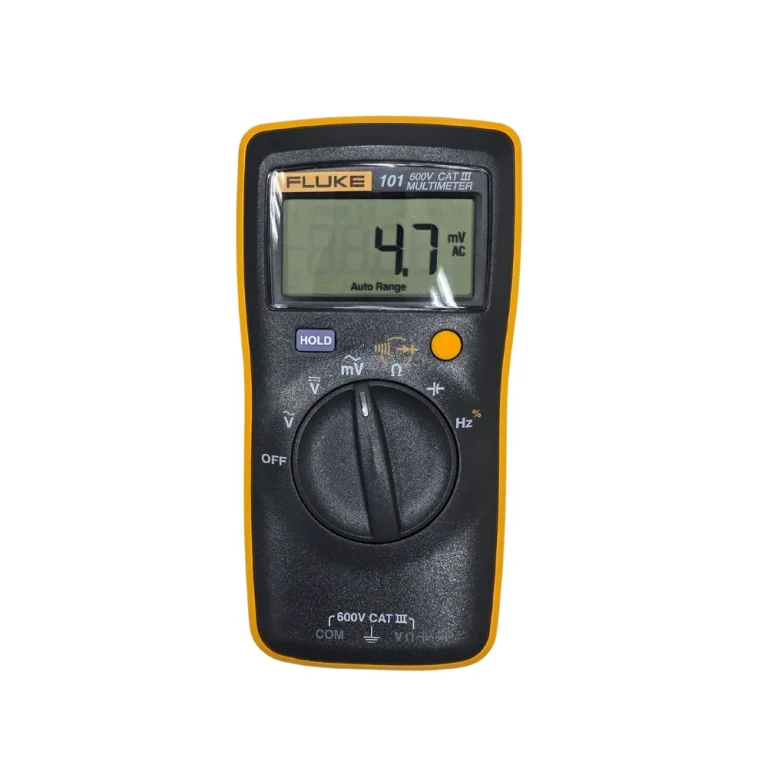

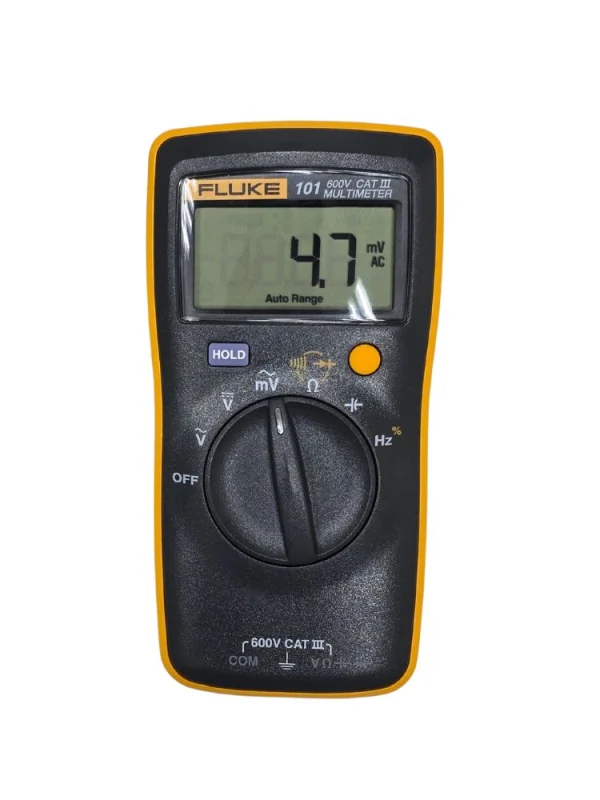

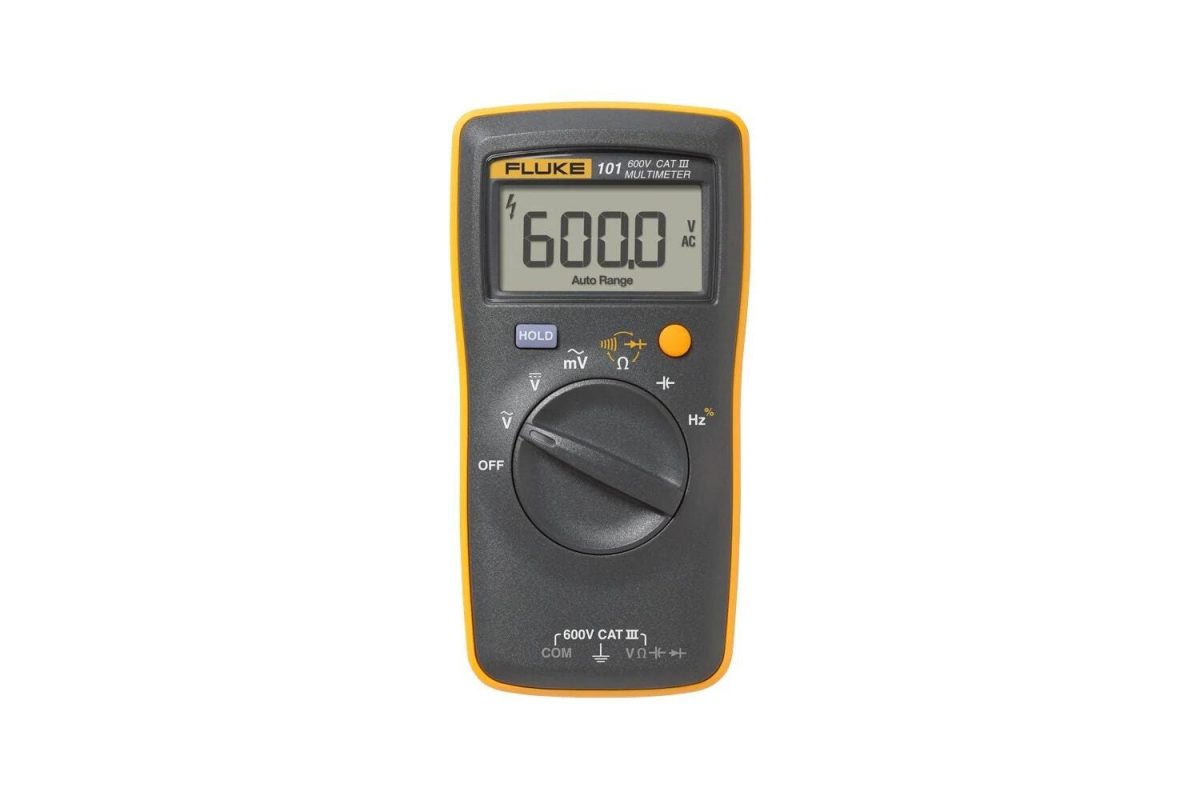

The Fluke 101 Digital Multimeter is a versatile and reliable tool for electrical and electronics professionals. With its wide range of measurement functions, including voltage, current, resistance, and capacitance, this multimeter is ideal for a variety of applications.

Whether you’re working on a complex circuit or troubleshooting a faulty device, the Fluke 101 Digital Multimeter has got you covered.

Fluke 101 Key Features

The Fluke 101 Digital Multimeter boasts a range of impressive features, including:

40-500Hz V AC range with 0.1 mV resolution
0.001 V to 0.1 V accuracy
0.001 V to 0.1 V DC range with 0.001 V resolution
0.5%±3 digit accuracy
Resistance measurement up to 40.00 MΩ
Capacitance measurement up to 1 μF
Frequency measurement up to 100 kHz
Duty cycle measurement

Who Needs the Fluke 101?

The Fluke 101 Digital Multimeter is designed for electrical and electronics professionals who require accurate and reliable measurements. Whether you’re working in a laboratory, on a construction site, or in a manufacturing facility, this multimeter is the perfect tool for the job.

Fluke 101 Applications

Use the Fluke 101 to measure voltage and current in electrical circuits
Use the Fluke 101 to troubleshoot faulty devices and diagnose electrical issues
Use the Fluke 101 to measure resistance and capacitance in electronic components
Use the Fluke 101 to measure frequency and duty cycle in electrical systems
Use the Fluke 101 to perform routine maintenance and testing on electrical equipment

Why Buy Fluke 101 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 101 Digital Multimeter at a competitive price, along with a one-year warranty and exceptional customer service. Our team of experts is always available to provide technical support and guidance, ensuring that you get the most out of your investment.

Fluke 101 Specifications

Electrical Specifications
V AC (40-500Hz)	Range	600.0 mV 6.000 V 60.00 V 600.0 V
	Resolution	0.1 mV 0.001 V 0.01 V 0.1 V
	Accuracy	3.0%±3 digit 1.0%±3 digit
V DC	Range	6.000 V 60.00 V 600.0 V
	Resolution	0.001 V 0.01 V 0.1 V
	Accuracy	0.5%±3 digit
Resistance Ohms	Range	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ
	Resolution	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ
	Accuracy	0.5 %±3 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 0.5 %±2 digit 1.5%±3 digit
Capacitance	Range	50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000.0 μF
	Resolution	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF
Frequency (10 Hz – 100 kHz)	Range	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz
	Resolution	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz
Duty Cycle	Range	0.1 % to 99.9 %
	Resolution	0.1 %
General Specifications
CAT Rating	CAT III 600 V
V AC Range	600.0 V
V DC Range	600.0 V
Ohms Range	40.00 MΩ
Auto Shutoff	Y
Continuity	Y
Capacitor	100.0 μF
Frequency	100.0 kHz
Hold	No
Duty Cycle	Yes
Size	130 mm x 65 mm x 27mm
Weight	160 g
Battery	Two AAA
Warranty	1 year
Environmental Specifications
Operating Temperature	0 °C to +40 °C
Storage Temperature	-30 °C to +60 °C
Operating Humidity	Non condensing (<10 °C) <=90% RH (at 10 °C to 30 °C) <=75% RH (at 30 °C to 40 °C) (Without Condensation)
Operating Humidity, 40 MΩ	80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C
Operating Altitude	2,000 meters
Storage Altitude	12,000 meters
IP Rating	IP 40 per IEC 60529
Vibration Requirements	MIL-PRF-28800F, Class 2
Drop Test Requirements	-10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment Shipping container drop per Fluke SOP 39.
EMI, RFI, EMC	Must meet all applicable requirements in IEC/EN 61326-1
Absorption/Corrosion	Per Fluke SOP 39.1
Temperature Coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC
