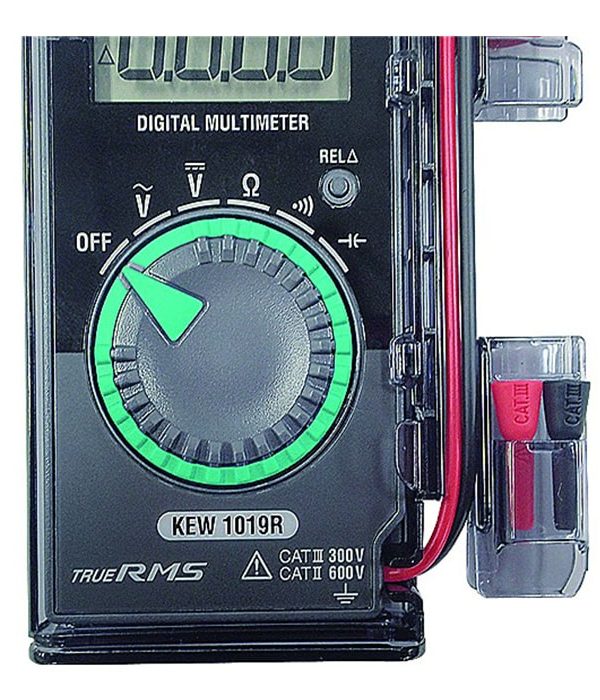

Kyoritsu KEW 1019R Digital Multimeter
Short Description:
Kyoritsu KEW 1019R Digital Multimeters is the best tool that are very productive and accurate results for the test point. Accurate reading with True-RMS technology.
Product purchase
Original price was: AED 266.AED 258Current price is: AED 258. (excl.VAT)
11
People watching this product now!
Terms of sending goods ›
Description
Digital Multimeters KEW 1019R
The Kyoritsu KEW 1019R digital multimeter is the best tool that delivers accurate results and high productivity for test scores. Accurate reading with True-RMS technology. Elegant glossy black. Comes with a user-friendly hard case. Big screen.Accurate reading with True-RMS technology. Electronic protection (no fuse!) on ohm and continuity ranges. Safety Standard IEC 61010-1/61010-031/61010-2-033 CAT III 300V/CAT II 600V.
Similar products
Here, we are referring to three products as related products of KEW1019R, and we provide a brief description of each:
- The Kaise KU-2602 is a digital multimeter designed for electrical measurements in various applications. It typically offers functions for measuring AC/DC voltage, AC/DC current, resistance, continuity, and diode testing.
- The FLIR DM166 is a professional-grade digital multimeter with built-in infrared (IR) thermal imaging capability. It combines the functionality of a multimeter with the ability to visualize temperature differences in objects or electrical components.
- The FLIR DM90 is another advanced digital multimeter designed for professional use. It offers comprehensive measurement capabilities for AC/DC voltage, AC/DC current, resistance, continuity, and diode testing.
- We also can mention KEW1051 and KEW1062 as the other related products of this device.
Features
- Elegant shiny-black finish
- Comes with user-friendly Hard case
- Large Display
- Accurate reading with True-RMS technology
- Electronic protection (no fuse!) on ohm and continuity ranges
Digital Multimeters KEW 1019R Specifications
- DC V : 600.0mV/6.000/60.00/600.0V
- AC V: 6.000/60.00/600.0V
- Ω : 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ
- Continuity buzzer: 600.0Ω
- Capacitance : 6.000/60.00/600.0nF/6.000/60.00/600.0µF
- Applicable standards: IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2
- Power source : CR2032 (3V) × 1
- Dimensions : 126(L) × 85(W) × 18(D)mm
- Weight: 135g
- Included Accessories: 9188 (Hard case), CR2032 × 1, Instruction manual
Additional information
| AC voltage range/resolution/accuracy | , , |
|---|---|
| DC voltage range/resolution/Accuracy | , , , |
| AC Voltage Input impedance |
10MΩ |
| DC VOLTAGE Input impedance |
10MΩ |
| Resistance Range/resolution/Accuracy |
40.00MΩ/±(2.5%rdg±5dgt) ,6.000kΩ/±(1.0%rdg±5dgt) ,6.000MΩ/±(1.0%rdg±5dgt) ,60.00kΩ/±(1.0%rdg±5dgt) ,600.0kΩ/±(1.0%rdg±5dgt) ,600.0Ω/±(1.0%rdg±5dgt) |
| Capacitance Range/resolution/Accuracy |
6.000nF/±(3.5%rdg±50dgt) ,6.000µF/±(3.5%rdg±5dgt) ,60.00nF/±(3.5%rdg±10dgt) ,60.00µF/±(3.5%rdg±5dgt) ,600.0nF/±(3.5%rdg±5dgt) ,600.0µF/±(4.5%rdg±5dgt) |
| Dimensions |
126(L)x85(W)x18(D)mm |
| Weight |
135g |
| Power |
CR2032 (3V) × 1 |
| Accessories |
9188 (Hard case ,CR2032x1 |
| Continuity test |
√ |
| True RMS |
√ |
