Description

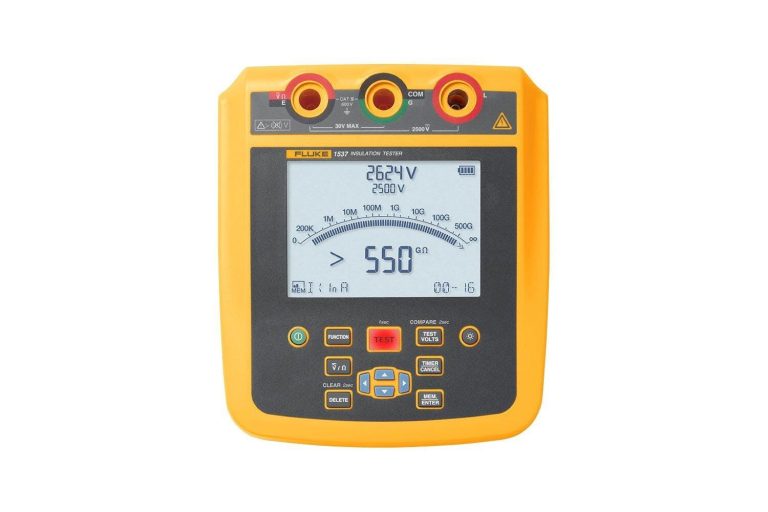

The Fluke 1535 and 1537 Insulation Resistance Tester and Megohmmeters are designed to provide accurate and reliable insulation resistance testing for electrical systems. With a wide range of test voltages, including 250 V, 500 V, and 2500 V, these instruments are ideal for a variety of applications, from maintenance and troubleshooting to quality control and research.

Featuring high-precision measurement of insulation resistance, these instruments meet international standards for insulation testing, ensuring accurate and reliable results. The compact and rugged design makes them perfect for field use, while the easy-to-use interface with clear display makes it simple to operate and interpret results.

Fluke 1535 Key Features

The Fluke 1535 Insulation Resistance Tester and Megohmmeter is a high-precision instrument designed for accurate insulation resistance testing. With a wide range of test voltages and high-precision measurement, it meets international standards for insulation testing.

Accuracy: ±0.25% per °C
Test voltage: 250 V, 500 V, and 2500 V
Insulation resistance range: 0.01 MΩ to 100 GΩ
Operating temperature: -10°C to +50°C
Calibration data storage: Yes
Display: Clear and easy-to-read

Who Needs the Fluke 1535?

The Fluke 1535 Insulation Resistance Tester and Megohmmeter is designed for technicians, engineers, and buyers who need accurate and reliable insulation resistance testing for electrical systems. Whether you’re in maintenance, troubleshooting, quality control, or research, this instrument is perfect for your needs.

Fluke 1535 Applications

Electrical system maintenance: Regular insulation resistance testing to ensure safe and reliable operation
Electrical system troubleshooting: Accurate insulation resistance testing to identify faults and defects
Quality control: Insulation resistance testing to ensure compliance with international standards
Research and development: High-precision insulation resistance testing for new product development
Electrical system design: Accurate insulation resistance testing to ensure safe and reliable operation

Why Buy Fluke 1535 from MME?

At MME, we offer the Fluke 1535 Insulation Resistance Tester and Megohmmeter at competitive prices, with fast shipping and excellent customer service. Our team of experts is always available to answer your questions and provide support. Buy from MME today and experience the difference for yourself.

Fluke 1535 Specifications

Electrical Specifications
The meter’s accuracy is specified for one year after calibration at operating temperatures of 10°C to 30°C. For operating temperatures outside the range (-10°C to +10°C and +30°C to +50°C), add ± 0.25% per °C, except on the 20% bands, add ± 1% per °C.
Insulation resistance testing
Test voltage	Range	Resolution	Accuracy
250 V	<200 kΩ	Unspecified	Unspecified
	200 kΩ to 500 kΩ	1 kΩ	5 %
	0.50 MΩ to 5.00 MΩ	.01 MΩ	5 %
	5.0 MΩ to 50.0 MΩ	0.1 MΩ	5 %
	50 MΩ to 500 MΩ	1 MΩ	5 %
	0.50 GΩ to 5.00 GΩ	0.01 GΩ	5 %
	5.0 GΩ to 50.0 GΩ	0.1 GΩ	20 %
	>50 GΩ	Unspecified	Unspecified
500 V	<200 kΩ	Unspecified	Unspecified
	200 kΩ to 500 kΩ	1 kΩ	5 %
	0.50 MΩ to 5.00 MΩ	.01 MΩ	5 %
	5.0 MΩ to 50.0 MΩ	0.1 MΩ	5 %
	50 MΩ to 500 MΩ	1 MΩ	5 %
	0.50 GΩ to 5.00 GΩ	0.01 GΩ	5 %
	5.0 GΩ to 10.0 GΩ	0.1 GΩ	5 %
	10.0 GΩ to 50.0 GΩ	0.5 GΩ	20 %
	50 GΩ to 100 GΩ	5 GΩ	20 %
	>100 GΩ	Unspecified	Unspecified
1000 V	<200 kΩ	Unspecified	Unspecified
	200 kΩ to 500 kΩ	1 kΩ	5 %
	0.50 MΩ to 5.00 MΩ	.01 MΩ	5 %
	5.0 MΩ to 50.0 MΩ	0.1 MΩ	5 %
	50 MΩ to 500 MΩ	1 MΩ	5 %
	0.50 GΩ to 5.00 GΩ	0.01 GΩ	5 %
	5.0 GΩ to 20.0 GΩ	0.1 GΩ	5 %
	20.0 GΩ to 50.0 GΩ	0.5 GΩ	20 %
	50 GΩ to 200 GΩ	5 GΩ	20 %
	>200 GΩ	Unspecified	Unspecified
2500 V	<200 kΩ	Unspecified	Unspecified
	200 kΩ to 500 kΩ	1 kΩ	5 %
	0.50 MΩ to 5.00 MΩ	0.01 MΩ	5 %
	5.0 MΩ to 50.0 MΩ	0.1 MΩ	5 %
	50 MΩ to 500 MΩ	1 MΩ	5 %
	0.50 GΩ to 5.00 GΩ	0.01 GΩ	5 %
	5.0 GΩ to 50.0 GΩ	0.1 GΩ	5 %
	50 GΩ to 500 GΩ	5 GΩ	20 %
	>500 GΩ	Unspecified	Unspecified
