Description

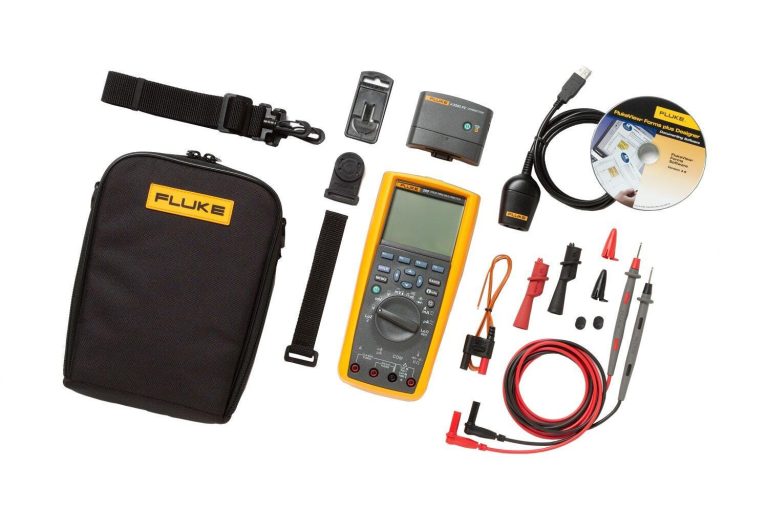

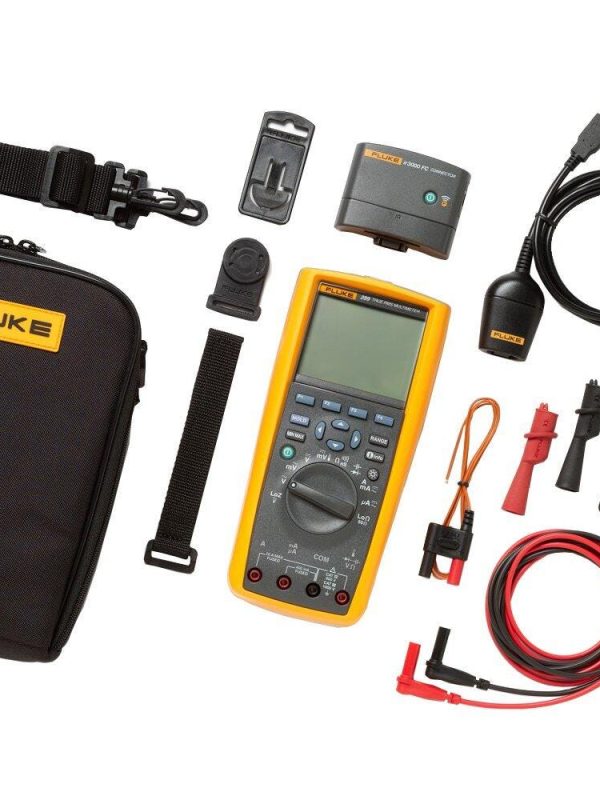

The Fluke 289/ir3000 FC Kit is a high-performance multimeter designed for demanding applications. With its advanced measurement functions and rugged design, it’s the perfect choice for technicians and engineers.

Fluke 289/ir3000 Key Features

The Fluke 289/ir3000 FC Kit features a range of advanced measurement functions, including True-RMS AC, dBV/dBm, and DC mV resolution.

True-RMS AC for accurate measurements
dBV/dBm for precise audio and RF measurements
DC mV resolution for precise DC voltage measurements
50 ohm range for precise RF measurements
Filter for measurements on motor drives for accurate measurements on motor drives
LoZ for precise measurements on low-impedance circuits

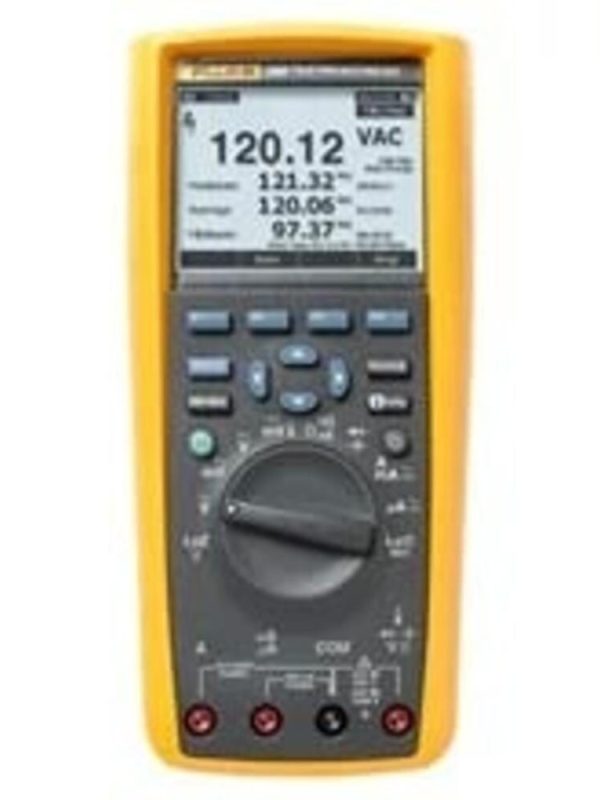

Multiple on screen displays for easy viewing of measurement results

Who Needs the Fluke 289/ir3000?

The Fluke 289/ir3000 FC Kit is designed for technicians and engineers who require accurate and reliable measurements in demanding applications.

With its advanced measurement functions and rugged design, it’s the perfect choice for professionals who need a reliable tool for their work.

Fluke 289/ir3000 Applications

Use the Fluke 289/ir3000 FC Kit for electrical measurements in industrial and commercial settings.
Measure voltage, current, and resistance with the Fluke 289/ir3000 FC Kit.
Use the Fluke 289/ir3000 FC Kit for temperature measurements in industrial and commercial settings.
Measure temperature with the Fluke 289/ir3000 FC Kit.
Use the Fluke 289/ir3000 FC Kit for logging and data analysis in industrial and commercial settings.
Log measurements with the Fluke 289/ir3000 FC Kit.
Use the Fluke 289/ir3000 FC Kit for wireless connectivity in industrial and commercial settings.
Connect wirelessly with the Fluke 289/ir3000 FC Kit.

Why Buy Fluke 289/ir3000 from MME?

At MME, we offer the Fluke 289/ir3000 FC Kit at competitive prices, with fast shipping and excellent customer service.

Our team of experts is always available to answer any questions you may have about the Fluke 289/ir3000 FC Kit.

Fluke 289/ir3000 Specifications

General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Battery type	6 AA alkaline batteries, NEDA 15A IECLR6
Battery life	100 hours minimum, 200 hours in logging mode
Temperature	Operating: -20 °C to 55 °C; Storage: -40 °C to 60 °C
Relative humidity	0 to 90 % (0 t 37 °C), 0 to 65 % (37 °C to 45 °C), 0 to 45 % (45 °C to 55 °C)
Electromagnetic compatibility	EMC EN61326-1
Vibration	Random vibration per MIL-PRF-28800F Class 2
Shock	1 meter drop per IEC/EN 61010-1 3rd Edition
Size (HxWxL)	22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)
Weight	870.9 g (28 oz)
Multiple on screen displays	Yes
LoZ	Yes
50 ohm range	Yes
Filter for measurements on motor drives	Yes
True-RMS AC bandwidth	100 kHz
dBV/dBm	Yes
DC mV resolution	1 μV
Megohm range	Up to 500 MΩ
Conductance	50.00 nS
Continuity beeper	Yes
Temperature (°C and °F)	-200 °C to 1350 °C
Battery/fuse access	Yes/Yes
Elapse time clock	Yes
Time of day clock	Yes
Min-Max-Avg	Yes
Frequency	Yes
Duty cycle/pulse width	Yes
Info button on board help	Yes
Hold	Yes
Isolated optical interface	Yes
Auto/touch hold	Yes
Reading memory	Yes
Log to PC	Yes
On board logging with TrendCapture	Yes
Logging memory up to	15,000 readings
Wireless connectivity (optional)	Yes

Datasheet

Datasheet (PDF)PDF
