Fluke 325 Solar Kit + Irradiance Meter & TLPV1

Description

Fluke 325 with Solar Irradiance Meter and TLPV1 Test Leads

This Fluke solar kit (FLK-325-IRR-TLPV1) puts three tools in one package for PV installers and maintenance teams: the Fluke 325 True-RMS clamp meter, the Fluke solar irradiance meter (IRR1-SOL) and the TLPV1 MC4 to 4 mm test lead set. You can measure current and voltage, record sunlight levels while you test, and connect safely to MC4 connectors.

What Each Tool Does

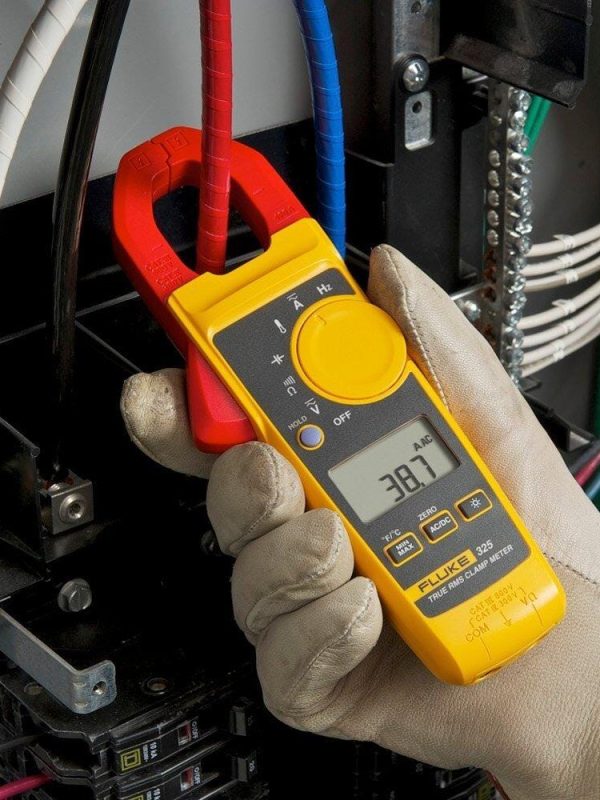

Fluke 325 clamp meter: True-RMS AC/DC current to 400 A, AC/DC voltage to 600 V, resistance, capacitance, frequency and temperature. CAT III 600 V / CAT IV 300 V.

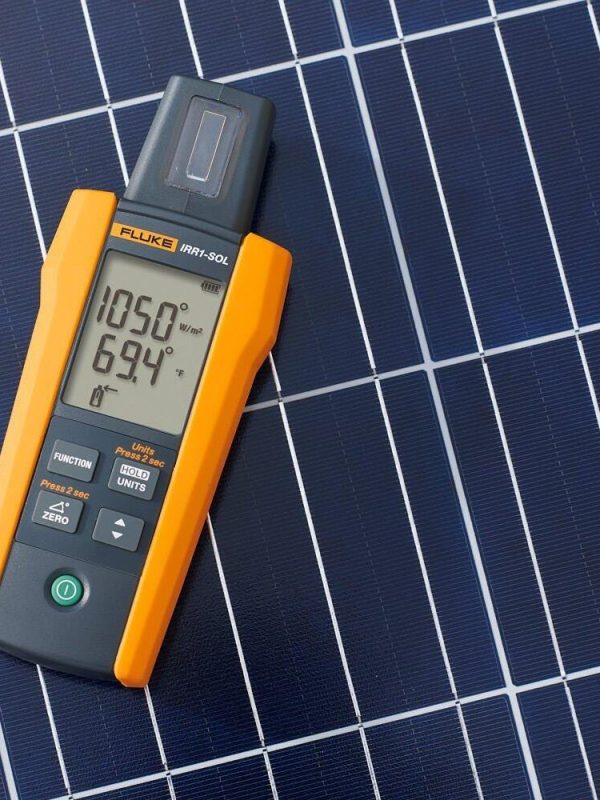

Solar irradiance meter: irradiance up to 1400 W/m², with built-in compass and tilt sensor and a high-contrast display for direct sun.

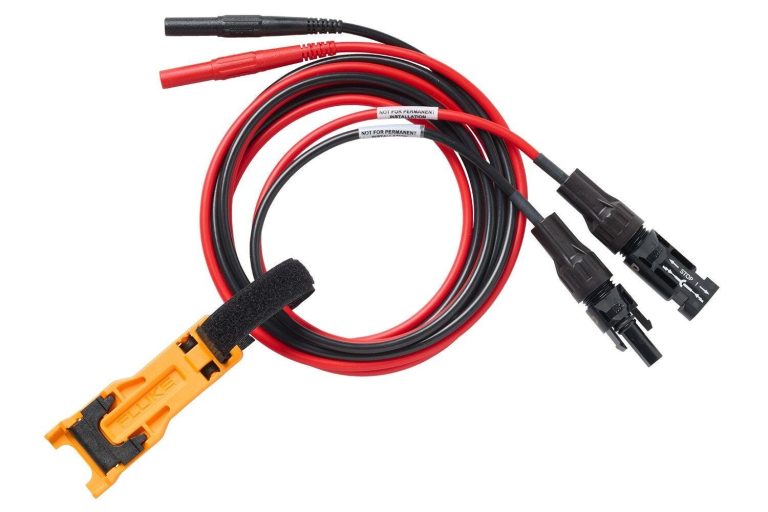

TLPV1 leads: red and black MC4 to 4 mm banana leads, 150 cm long, with nickel-plated contacts.

Kit Specifications

Fluke 325 solar kit specifications (from Fluke data sheets)
Fluke 325: AC / DC current	40.00 A / 400.0 A; AC ±2% ±5 digits (45-65 Hz), DC ±2% ±5 digits
Fluke 325: AC / DC voltage	600.0 V; AC ±1.5% ±5 digits, DC ±1.0% ±5 digits
Fluke 325: other functions	Resistance to 40 kΩ, continuity, capacitance to 1000 µF, frequency 5-500 Hz, contact temperature -10 to 400 °C, Min/Max, hold, backlight
Fluke 325: jaw / safety	30 mm max conductor; CAT III 600 V, CAT IV 300 V
Irradiance meter: irradiance	Up to 1400 W/m², 1 W/m² resolution, ±(5% + 5 digits)
Irradiance meter: temperature	-30 °C to 100 °C
Irradiance meter: tilt / compass	Inclination -90° to +90° (0.1°); compass 0-360° (1°)
TLPV1 leads	Red and black Stäubli MC4 to 4 mm banana, 150 cm, nickel-plated contacts
Fluke part number	FLK-325-IRR-TLPV1, part 5591298

Related Tools

Each item is also sold on its own: the Fluke 325 True-RMS clamp meter, the Fluke IRR1-SOL solar irradiance meter and the Fluke TLPV1 MC4 test lead set. For 1500 V DC PV strings, see the Fluke 393 with solar irradiance meter. Read our Fluke 325 review and our guide on using a meter in solar panel installation and maintenance.

Typical Applications

Commissioning and checking rooftop PV systems
Recording irradiance, tilt and orientation during site surveys
AC output current checks on inverters
Troubleshooting combiner boxes and low-voltage circuits

Safety Tip

The Fluke 325 is rated 600 V. Do not use it on PV strings above that voltage. Use tools rated for the highest DC voltage on the array. Read our guide to electrical safety standards and CAT ratings.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Browse all solar test tools, clamp meters or more Fluke products.

Frequently Asked Questions

What is in the Fluke 325 solar kit?

The Fluke 325 True-RMS clamp meter, the Fluke solar irradiance meter (IRR1-SOL) and the TLPV1 MC4 to 4 mm test lead set (Fluke part 5591298).

Is the Fluke 325 a multimeter or a clamp meter?

It is a True-RMS clamp meter. It measures AC/DC current up to 400 A through the jaw and AC/DC voltage up to 600 V with test leads.

What does the irradiance meter measure?

Solar irradiance up to 1400 W/m² (1 W/m² resolution, ±5% ±5 digits), temperature from -30 to 100 °C, panel tilt and compass direction.

What are TLPV1 leads for?

They connect a meter with 4 mm banana inputs to Stäubli MC4 PV connectors. The leads are 150 cm long with nickel-plated contacts.

Can the Fluke 325 measure PV string voltage?

The 325 measures up to 600 V AC/DC. For higher string voltages use a meter rated for PV, such as the Fluke 393 FC (1500 V DC).
