Description

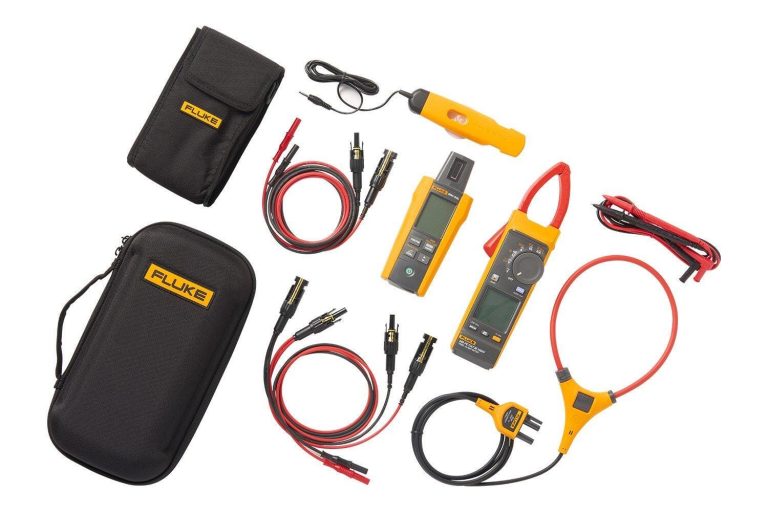

The Fluke 393 Solar Tools Kit is a comprehensive solution for solar panel installation and maintenance. This kit includes the Fluke 393 FC Clamp Meter, Irradiance Meter, and Solar Test Leads, providing accurate measurement of solar panel current and voltage.

With its high-precision measurement capabilities and compact design, the Fluke 393 Solar Tools Kit is perfect for technicians and engineers working in the solar industry.

Fluke 393 Key Features

The Fluke 393 FC Clamp Meter is a versatile and accurate tool for measuring current and voltage in solar panels. It features a dual display with backlight, automatic power off, and a range of measurement functions.

AC Voltage: 1000 V
DC Voltage: 1500 V
Batteries: 2 AA IEC LR6 alkaline
Display: Dual display with backlight
Automatic Power Off: 20 minutes
Accuracy: 2 % + 5 digits (10 Hz to 100 Hz)
Crest Factor (50/60 Hz): 2.5 @600.0 A
Range: 999.9 A
Resolution: 0.1 A
Accuracy: 3 % RD + 5 digits (10 Hz to 500 Hz)
Crest Factor (50/60Hz): 2.5 @1400 A
Distance from Optimum: i2500-10 Flex A: 0.5 in (12.7 mm), B: 0.8 in (20.3 mm), C: 1.4 in (35.6 mm)

Who Needs the Fluke 393?

The Fluke 393 Solar Tools Kit is designed for technicians and engineers working in the solar industry. It is perfect for solar panel installation and maintenance, and provides accurate measurement of solar panel current and voltage.

With its high-precision measurement capabilities and compact design, the Fluke 393 Solar Tools Kit is an essential tool for anyone working with solar panels.

Fluke 393 Applications

Solar Panel Installation: Measure current and voltage in solar panels for accurate installation and maintenance.
Solar Panel Maintenance: Use the Fluke 393 FC Clamp Meter to measure current and voltage in solar panels for reliable results.
Solar Panel Testing: Use the Irradiance Meter to measure solar irradiance and the Solar Test Leads to connect to solar panels.
Solar Panel Troubleshooting: Use the Fluke 393 FC Clamp Meter to measure current and voltage in solar panels for accurate troubleshooting.
Solar Panel Commissioning: Use the Fluke 393 FC Clamp Meter to measure current and voltage in solar panels for accurate commissioning.
Solar Panel Inspection: Use the Fluke 393 FC Clamp Meter to measure current and voltage in solar panels for accurate inspection.

Why Buy Fluke 393 from mme-ae?

The Fluke 393 Solar Tools Kit is a comprehensive solution for solar panel installation and maintenance. With its high-precision measurement capabilities and compact design, it is perfect for technicians and engineers working in the solar industry.

At mme-ae, we offer the Fluke 393 Solar Tools Kit at a competitive price, with fast shipping and excellent customer service.

Fluke 393 Specifications

General
Maximum voltage between any Terminal and Earth Ground
AC	1000 V
DC	1500 V
Batteries	2 AA IEC LR6 alkaline
Display	Dual display with backlight
Automatic Power Off	20 minutes
Electrical
Accuracy
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]).
Temperature Coefficients	Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C
AC Current: Jaw
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % + 5 digits (10 Hz to 100 Hz)
	2.5 % + 5 digits (100 Hz to 500 Hz)
Crest Factor (50/60 Hz)	2.5 @600.0 A
	3.0 @500.0 A
	1.42 @999.9 A
	Add 2 % for C.F. >2
AC Current: Flexible Current Probe
Range	999.9 A
	2500 A
Resolution	0.1 A (≤999.9 A)
	1 A (≤2500 A)
Accuracy	3 % RD + 5 digits (10 Hz to 500 Hz)
Crest Factor (50/60Hz)	2.5 @1400 A
	3.0 @1100 A
	1.42@2500 A
	Add 2 % for C.F. >2
Position Sensitivity

Distance from Optimum	i2500-10 Flex	i2500-18 Flex	Error
A	0.5 in (12.7 mm)	1.4 in (35.6 mm)	±0.5 %
B	0.8 in (20.3 mm)	2.0 in (50.8 mm)	±1.0 %
C	1.4 in (35.6 mm)	2.5 in (63.5 mm)	±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.

DC Current
Range	999.9 A
Resolution	0.1 A
Accuracy	2 % RD + 5 digits^[1]
	^[1] When using the ZERO (B) function to compensate for offsets.
AC Voltage
Range	600.0 V
	1000 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1000 V)
Accuracy	1 % RD + 5 digits (20 Hz to 500 Hz)
DC Voltage
Range	600.0 V
	1500 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1500 V)
Accuracy	1 % RD + 5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1 % RD + 5 digits
Amps Frequency: Jaw
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 10 Hz, ≥10 A
	10 Hz to 100 Hz, ≥5 A
	100 Hz to 500 Hz, ≥10 A
Amps Frequency: Flexible Current Probe
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 20 Hz, ≥25 A
	20 Hz to 100 Hz, ≥20 A
	100 Hz to 500 Hz, ≥25 A
Voltage Frequency
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5 % RD + 5 digits
Trigger Level	5 Hz to 20 Hz, ≥5 V
	20 Hz to 100 Hz, ≥5 V
	100 Hz to 500 Hz, ≥10 V
DC Power
Range	600.0 kVA (600.0 V dc range)
	1500 kVA (1500 V dc range)
Resolution	0.1 kVA
	1 kVA
Accuracy	2 % RD + 2.0 kVA
	2 % RD + 20 kVA
Resistance
Range	600.0 Ω
	6000 Ω
	60.00 kΩ
Resolution	0.1 Ω (≤600.0 Ω)
	1 Ω (≤6000 Ω)
	0.01 kΩ (≤60.00 kΩ)
Accuracy	1 % RD + 5 digits
Capacitance
Range	100.0 μF
	1000 μF
Resolution	0.1 μF (≤100.0 μF)
	1 μF (≤1000 μF)
Accuracy	1 % RD + 5 digits
Inrush Trigger Level	5 A
Mechanical
Size (L x W x H)	281 mm x 84 mm x 49 mm
Weight (with batteries)	520 g
Jaw Opening	34 mm
Flexible Current Probe Diameter	7.5 mm
Flexible Current Probe Cable Length
(head to electronics connector)	1.8 m
Environmental
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-40 °C to 60 °C
Operating Humidity	Non condensing (<10°C)
	≤90 % RH (at 10 °C to 30 °C)
	≤75 % RH (at 30 °C to 40 °C)
	≤45 % RH (at 40 °C to 50 °C)
Operating Altitude	2000 m
Storage Altitude	12 000 m
Ingress Protection (IP) Rating	IEC 60529: IP54 non-operating
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Korea (KCC)	Class A equipment (Industrial Broadcast & Communications Equipment)
	Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Safety
General	IEC 61010-1, Pollution Degree 2
Measurement	IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V
	IEC 61010-2-033: CAT III 1500 V / CAT IV 600 V
Wireless Radio
Radio frequency certification	FCC ID: T68-FBLE, IC: 6627A-FBLE
Wireless Radio Frequency Range	2400 MHz to 2483.5 MHz
Output Power	<100 mW
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Fluke declares that the radio equipment contained in this Product is in compliance with Directive 2014/53/EU.
The full text of the EU declaration is available at the following Internet address:
www.fluke.com/en-us/declaration-of-conformityPDF
