Fluke 730LTP/40K Low Pressure Test Pump

Description

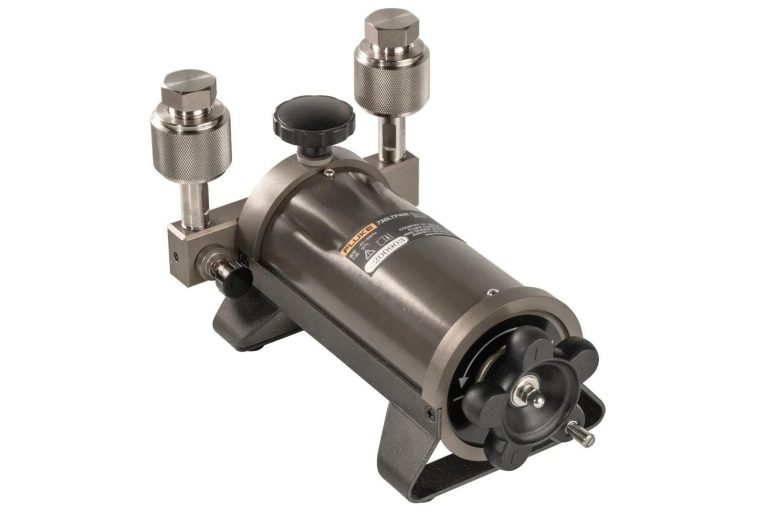

Fluke 730LTP/40K Low Pressure Test Pump

The Fluke 730LTP/40K is a portable low pressure test pump for -40 kPa to 40 kPa (-5.8 to 5.8 psi) using air. Ultra-fine precision adjustment makes it easy to set small pressures, and special insulation reduces the effect of outside temperature on the generated pressure.

The Fluke 730 series pumps are built for stable, repeatable pressure during calibration and are designed to avoid common pump problems such as blocking, leaks and hard operation. Pair the pump with a reference gauge or pressure calibrator to check pressure gauges, switches and transmitters in the lab or in the field.

Key Features

Pressure range -40 kPa to 40 kPa (-5.8 to 5.8 psi)
Ultra-fine precision adjustment for low pressure calibration
Special insulation to reduce the influence of ambient temperature
Uses air; compact 2.3 kg body
Portable design with a 2-year warranty
Special surface treatment for scratch and corrosion resistance
Precision shut-off valves for stable pressure
M20×1.5 female quick-connect fitting: no PTFE tape or wrenches needed
High-resolution fine pressure adjustment

Fluke 730LTP/40K Specifications

Fluke 730LTP/40K specifications (Fluke data sheet)
Pressure range	-40 kPa to 40 kPa (-5.8 to 5.8 psi)
Medium	Air
Fitting	M20×1.5 female quick connect
Reservoir volume	2.3 cm³ (0.14 in³)
Fine adjustment volume	0.7 cm³ (0.043 in³)
Pre-pressure volume	42 cm³ (2.563 in³)
Dimensions (L × W × H)	230 × 140 × 130 mm
Weight	2.3 kg
Included	20 seals for the M20×1.5 quick connection, 2 M20 plug connectors to keep out contamination
Optional accessories	FLK-730PFK pressure fitting kit (38 adapters), FLK-730GLSF gas and liquid separation filter, FLK-730ILF in-line liquid filter
Warranty	2 years

Choose the Right Fluke 730 Series Pump

Fluke 730 series test pumps (Fluke data sheet)
Model	Pressure range	Medium	Weight
730LTP/40K	-40 kPa to 40 kPa (-5.8 to 5.8 psi)	Air	2.3 kg
Fluke 730LTP/600K	-95 kPa to 600 kPa (-13.8 to 87 psi)	Air	2.9 kg
Fluke 730PTP/10M	-95 kPa to 10 MPa (-13.8 to 1451 psi)	Air	5.5 kg
Fluke 730HTP/70M	0 to 70 MPa (0 to 10,153 psi)	Distilled water or mineral oil	5.1 kg

Typical Applications

Calibrating low pressure and draft gauges, differential pressure gauges and switches
Low range pressure transmitters in HVAC, cleanroom and gas systems
Small vacuum ranges down to -40 kPa

Safety Tip

Low pressures are easily affected by temperature and leaks. Let the pressure settle before taking a reading, and check all connections for leaks with the shut-off valve closed.

Use It With a Reference Gauge or Calibrator

The pump generates the pressure; a reference reads it. Good matches include the Fluke 700G pressure gauge calibrator, Fluke 719 pressure calibrator, Fluke 721 precision pressure calibrator and Fluke 729 automatic pressure calibrator. Browse all pressure calibrators, other handheld pressure pumps or more Fluke products.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Fluke 730LTP/40K FAQ

What is the pressure range of the Fluke 730LTP/40K?

-40 kPa to 40 kPa, which is -5.8 to 5.8 psi (-400 to 400 mbar).

What is the 730LTP/40K used for?

Low pressure calibration of gauges, differential pressure gauges, switches and transmitters, for example in HVAC and gas systems.

What is the difference between the 730LTP/40K and 730LTP/600K?

The 40K covers -40 to 40 kPa with ultra-fine adjustment for low ranges. The 600K covers -95 to 600 kPa (-13.8 to 87 psi).

How do I connect gauges to the 730LTP/40K?

It has M20×1.5 female quick-connect ports sealed with the supplied seals, so you do not need PTFE tape or wrenches. The optional FLK-730PFK kit adds 38 adapters.
