Description

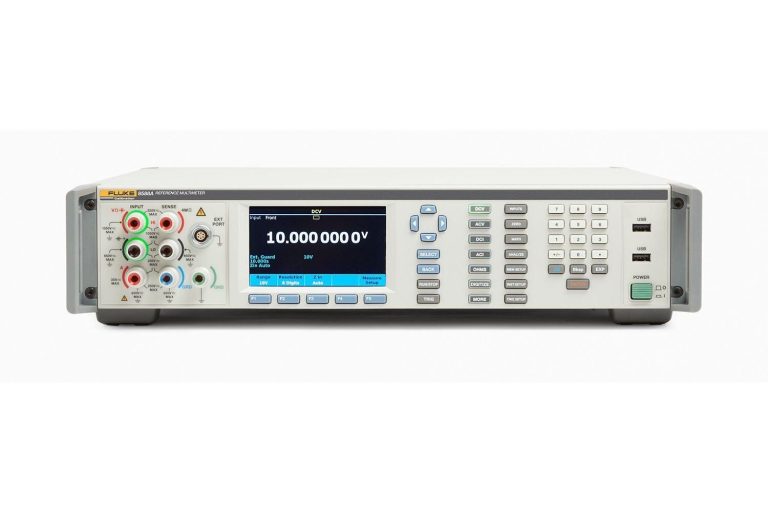

The Fluke 8588A is a high-precision bench multimeter designed for demanding applications in industries such as electronics, aerospace, and automotive.

With its wide range of measurement functions, including DC and AC voltage, current, and resistance, this multimeter is ideal for engineers and technicians who require accurate and reliable measurements.

Fluke 8588A Key Features

The Fluke 8588A features a graphical display, programmable front/rear input switching, and ratio difference, deviation, ohms, voltage, and current measurements.

DC voltage: 100 mV – 1000 V
AC voltage: 10 mV – 1000 V, 1 Hz – 10 MHz
Resistance, LoI, HV: 1 Ω – 10 GΩ
DC current: 10 uA – 30 A
AC current: 10 uA – 30 A, 1 Hz to 100 kHz
Digitize V: 100 mV – 1000 V, 5 MSamples/s, up to 20 MHz BW
Digitize I: 10 uA – 30 A, 5 MSamples/s, up to 4 MHz BW
Frequency (V, I, BNC): 1 Hz to 10 MHz, 1 Hz to 100 kHz, 10 Hz to 100 MHz
Temperature: PRT / Thermocouple (ext CJC)
Capacitance: 1 nF – 100 mF
RF power: R&S NRP Series
External dc current and ac current: A40B current shunt and other shunts

Who Needs the Fluke 8588A?

The Fluke 8588A is designed for engineers and technicians who require high-precision measurements in demanding applications.

Its advanced features, such as graphical display and programmable input switching, make it an ideal choice for industries such as electronics, aerospace, and automotive.

Fluke 8588A Applications

Electronics testing and measurement – The Fluke 8588A is ideal for testing and measuring electronic circuits and components.
Aerospace and defense – The Fluke 8588A is used in the aerospace and defense industries for testing and measuring high-precision electronic systems.
Automotive testing and measurement – The Fluke 8588A is used in the automotive industry for testing and measuring electronic systems and components.
Research and development – The Fluke 8588A is used in research and development applications for testing and measuring high-precision electronic systems.
Education and training – The Fluke 8588A is used in educational institutions for teaching and training students in electronics and electrical engineering.

Why Buy Fluke 8588A from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 8588A at competitive prices, along with excellent customer service and support.

Our team of experts is available to assist you with any questions or concerns you may have, and we offer a range of accessories and spare parts for the Fluke 8588A.

Fluke 8588A Specifications

Key feature and specification comparison	8588A	8558A
DC voltage	100 mV – 1000 V	100 mV – 1000 V
AC voltage	10 mV – 1000 V, 1 Hz – 10 MHz	10 mV – 1000 V, 1 Hz – 10 MHz
Resistance, LoI, HV	1 Ω – 10 GΩ	1 Ω – 10 GΩ
DC current	10 uA – 30 A	10 uA – 2 A
AC current	10 uA – 30 A, 1 Hz to 100 kHz	10 uA – 2A, 1 Hz to 100 kHz
Digitize V	100 mV – 1000 V, 5 MSamples/s, up to 20 MHz BW	100 mV – 1000 V, 5 MSamples/s, up to 20 MHz BW
Digitize I	10 uA – 30 A, 5 MSamples/s, up to 4 MHz BW	10 uA – 2 A, 5 MSamples/s, up to 4 MHz BW
Frequency (V, I, BNC)	1 Hz to 10 MHz, 1 Hz to 100 kHz, 10 Hz to 100 MHz	1 Hz to 10 MHz, 1 Hz to 100 kHz, 10 Hz to 100 MHz
Temperature	PRT / Thermocouple (ext CJC)	PRT / Thermocouple (ext CJC)
Capacitance	1 nF – 100 mF	No
RF power	R&S NRP Series	No
Ext. dc current and ac current	A40B current shunt and other shunts	No
Graphical display	Yes	Yes
Visual Connection Management ®	Yes	Yes
Programmable front/rear input switching	Yes	Yes
Ratio difference, deviation – ohms, voltage, current	Yes	Yes
External 10 MHz ref clock, 50 Ω/Hi-Z	Yes	Yes
A40B and other shunt asset management	Yes	No
GPIB 488.2, Ethernet, USB TMC	Yes	Yes
SCPI command compatibility	Yes	Yes
3458A emulation, 8508A emulation	Yes	Yes
Volatile memory	15 million	15 million
Level and other trigger	Yes	Yes
FFT onboard	Yes	No
Reading rates: 5 MS/s into memory, bus: 100 kS/s at 4.5 digits, 1 rdg/s at 8.5 digits	Yes	Yes
