Description

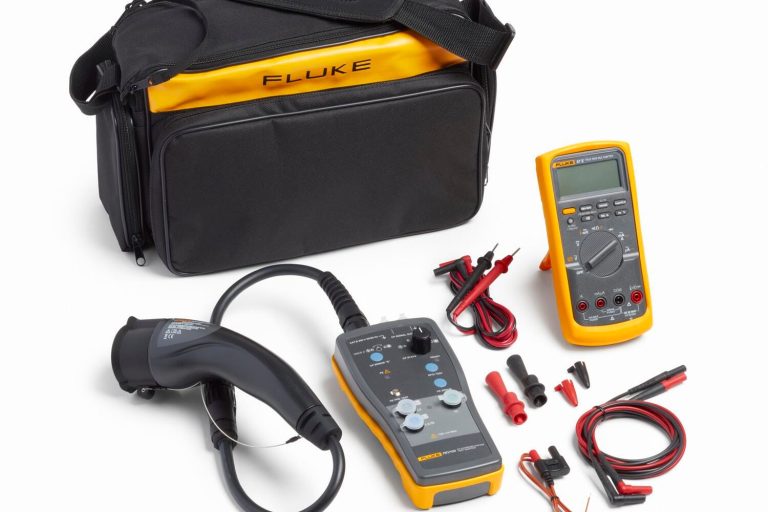

The Fluke 87V eMobility Tools Kit is a comprehensive testing solution for technicians and engineers working with electric vehicles. This kit includes the Fluke 87V multimeter, FEV100 test adapter, and test leads, providing accurate measurements for voltage, current, resistance, and more.

The 87V multimeter is a high-precision instrument with a range of features, including True RMS AC measurement, high-resolution voltage and current measurement, and a compact and durable design.

Fluke 87V Key Features

The Fluke 87V multimeter is a powerful tool for eMobility testing, with a range of key features including:

True RMS AC measurement for accurate measurement of AC signals
High-resolution voltage and current measurement for precise measurement of electrical signals
Compact and durable design for easy handling and storage
Long battery life for extended testing sessions
Meets industry standards for safety and performance
Easy-to-use interface for quick and accurate measurements
High-accuracy temperature measurement for precise temperature readings
Conductance measurement for accurate measurement of electrical conductivity

Who Needs the Fluke 87V?

The Fluke 87V eMobility Tools Kit is designed for technicians and engineers working with electric vehicles, including:

Electric vehicle manufacturers

Electric vehicle maintenance and repair shops

Electric vehicle testing and certification facilities

Research and development teams working on electric vehicle technology

Fluke 87V Applications

Electric vehicle testing and maintenance for accurate and reliable measurements
Electrical system testing for identifying faults and issues
Power quality analysis for optimizing electrical system performance
Temperature measurement for monitoring electrical system temperature
Conductance measurement
Diode testing for identifying diode faults and issues

Why Buy Fluke 87V from MME?

The Fluke 87V eMobility Tools Kit is a high-quality testing solution for technicians and engineers working with electric vehicles. By buying from MME, you can trust that you are getting a reliable and accurate instrument that meets industry standards for safety and performance.

Fluke 87V Specifications

Fluke 87V Industrial Multimeter Specifications
Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum resolution	10 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC bandwidth	20 kHz with low pass filter; 3 dB @ 1 kHz
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.2% + 2)
	Maximum resolution	0.01 µA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.0% + 2) True RMS
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	±(0.2% per kHz + 0.1%)
	Maximum resolution	0.1%
Temperature measurement	–200.0 °C – 1090 °C –328.0 °F – 1994.0 °F excluding probe
80 BK temperature probe	–40.0 °C – 260 °C –40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature	–20 °C to + 55 °C
Storage temperature	–40 °C to + 60 °C
Humidity (without condensation)	0% – 90% (0 °C – 35 °C) 0% – 70% (35 °C – 55 °C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	CE, CSA, RCM
Mechanical and General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g 624 g – with holster
Display	Digital	6000 counts updates 4/sec. 19,999 counts in high–resolution mode
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	Lifetime
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument
