Description

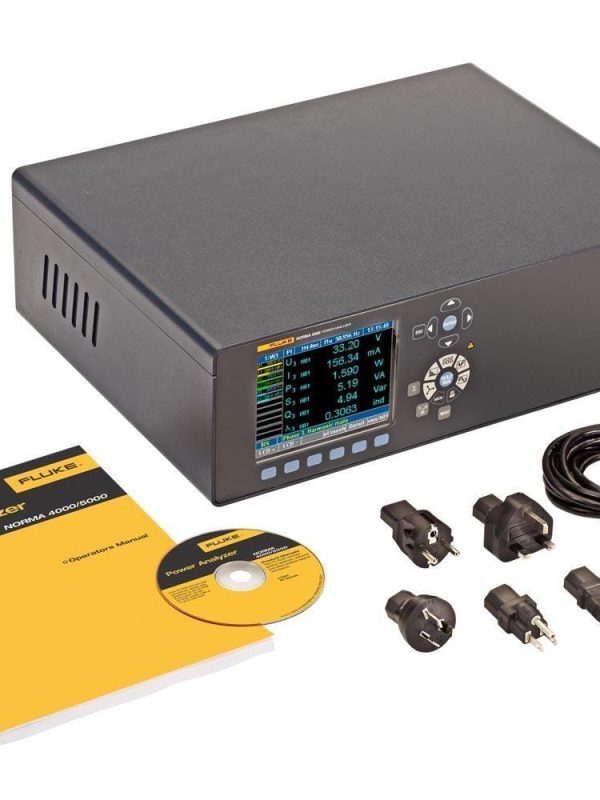

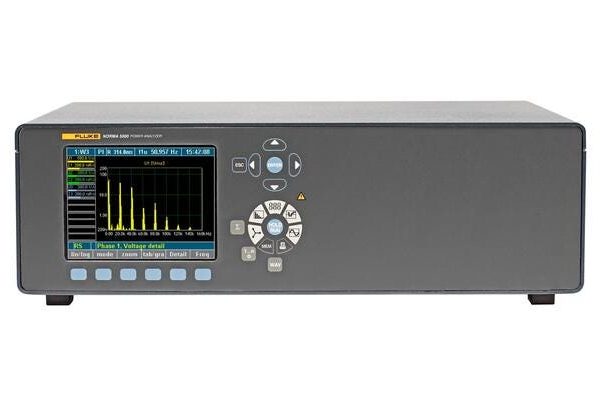

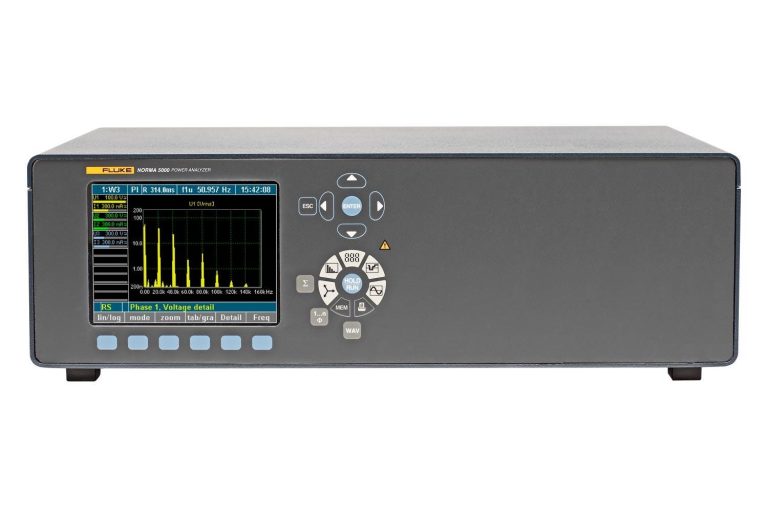

The Fluke Norma 5000 Power Analyzers are designed to provide accurate power measurement for 1 to 3 phases. With a compact and rugged design, these analyzers are ideal for a variety of applications, including power quality analysis, energy monitoring, and motor testing.

The Fluke Norma 5000 features a color display with user-selectable background lighting and contrast, making it easy to read and interpret data in a variety of environments.

Fluke Norma Key Features

The Fluke Norma 5000 Power Analyzers offer a range of key features, including:

Fast Fourier Transformation (FFT) for calculation of harmonics and graphical representation
Digital Oscilloscope (DSO) for simultaneous display of up to 3 measured values on sample level
RS232/USB interface for standard communication
Optional PI1 and GPIB interfaces for additional communication options
Fluke NormaView PC software for data download, analysis, and report writing

Who Needs the Fluke Norma?

The Fluke Norma 5000 Power Analyzers are designed for technicians and engineers who need accurate power measurement and analysis. These analyzers are ideal for a variety of applications, including power quality analysis, energy monitoring, and motor testing.

Fluke Norma Applications

Power quality analysis to identify and troubleshoot power quality issues
Energy monitoring to track and analyze energy usage
Motor testing to diagnose and troubleshoot motor problems
Power system analysis to analyze and optimize power system performance
Research and development to test and analyze new power systems and technologies

Why Buy Fluke Norma from mme-ae?

The Fluke Norma 5000 Power Analyzers are available from mme-ae, a leading supplier of test and measurement equipment. With a wide range of products and expert technical support, mme-ae is the ideal partner for technicians and engineers who need accurate power measurement and analysis.

Fluke Norma Specifications

General Specifications
Number of Phases	1 to 3
Weight	Approx. 5 kg (11 lb)
Size	150 x 237 x 315 mm
	5.9 x 9.3 x 12.4 in
On-board Printer	No
Display	Color, 5.7 in / 144 mm – 320 x 240 pixel
	User-selectable background lighting and contrast.
Bandwidth	DC to 3 MHz or DC to 10 MHz depending on input module
Basic Accuracy	0.2%, 0.1% or 0.03% depending on input modules
Sampling Rate	0.33 MHz or 1 MHz depending on input modules
Voltage Input Range	0.3 V to 1000 V
Current Input Range (direct, not via shunt)	0.03 mA to 20 A depending on input module
Memory for Configurations	4 MB
Memory for Settings	0.5 MB
Fast Fourier Transformation (FFT)	To the 40th harmonic
RS232/USB Interface	Standard
PI1 Process interface (8 analog/impulse inputs and 4 analog outputs)	Optional
IEEE 488.2/GPIB interface (1 MBit/s Ethernet / 10 MBit/s or 100 MBit/s)	Optional
Fluke NormaView PC software (for data download, analysis and report writing)	Standard
Basic Functions
Fast Fourier Transformation (FFT)	Calculation of harmonics with graphical representation. Up to 3 bar graphs are displayed at the same time.
	Measured values: U, I, P per phase
	Order: 1st to 40th harmonics, maximum half sample frequency
Digital Oscilloscope (DSO)	Simultaneous display of up to 3 measured values on sample level. Quick view of curve form and distortion.
Integration function (energy)	Simultaneous display of up to 6 configurable numeric values. Start/Stop conditions and positive negative direction available.
Vector Display	Vector display of HO1 up to 6 signals. For easy testing of the right connection of the instrument and quick overview of the phase angle of each signal.
Recorder	Display of average values over time for trend determination.
RAM data memory	Storing of sample and average values; setting of start and stop conditions.
	From the RAM approximately 4 MB are available for the storage of measured values.
Configuration	Set up the analyzer to measure and display data in the format required.
Ambient Conditions
Working Temperature Range	5°C to 35°C (41°F to 95°F)
Storage Temperature Range	-20°C to 50°C (-4°F to 122°F)
Housing Material	Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements.
Climatic Class	KYG DIN 40040, max. 85% relative humidity, non-condensing.
Power supply	85 V AC to 264 V AC, 50 Hz to 60 Hz, DC 100 to 260 V, ca. 40 VA European plug with switch. Binding post for current available on some models.
Measuring Inputs	Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket.
Operation	Membrane keyboard with cursor – function keys and direct functions.
Connections	Rear panel of the 3-phase Analyzer
Measured Values
	Non-gapping calculation of averaged values for each phase. In three phase system additionally calculation of total power and averaging of V and I of the three phases. The fundamental H01 will be calculated in synchronous mode also for these values. Urms effective value, Urm rectified mean, Um mean value Up-, Up+, Upp peak values Ucf crest factor Ucf, Uff form factor Ufc fundamental content Uthd distortion factor DIN, IEC Irms effective value, Irm rectified mean, Im mean value Ip-, Ip+, Ipp peak values Icf crest factor Icf, Iff form factor Ifc fundamental content Ithd distortion factor DIN, IEC P active power [W] Q reactive power [Var] S apparent power [VA] ë, cos. phase angular Integral function for active power P, reactive power Q, apparent power S, voltage (Um) and current (Im), Number of digits 4 or 5 dependent on measured value.
Frequency and Synchronization
Range	DC and 0.2 Hz to sample rate
Accuracy	±0.01% of measured value (reading)
	Channels which can be selected: all U/I or external input. One of three low pass filter with different frequencies can be switched into the signal. The frequency is always visible on the top of the screen. The BNC synchronization socket on backside of the instrument can be used either as input or output. The input signals can be measured up to the sample rate of the power phase. The maximum level must not be higher then 50 V. The output signal is a pulsed 5Volts TTL signal (frequency depends on the measured synch frequency).
Configuration Memory
	Up to 15 user configurations can be saved into a permanent memory and reloaded later on. Changes that were not saved are lost after switching off the instrument.
Interface
	RS232 interface for upload of firmware and data exchange with the PC. A printer can be connected over an external converter.
Options	IEEE 488.2 / 1 MBit/s
	Ethernet / 10 MBit/s or 100 Mbit/s
Standards and Safety
Electrical Safety	EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III)
	Degree of pollution 2, safety Class I
	EN 61558 for transformer
	EN 61010-2-031/032 for accessories
Maximum inputs	For voltage inputs Measurement range 1000 Veff, 2 kVpeak
	For current inputs Measurement range 10 Aeff, 20 Apeak
Test voltage	Net input	case (protective conductor): 1.5 KV AC
	Net connection	Measurement input: 5.4 kV AC
	Measurement inputs	Case: 3.3 kV AC
	Measurement input	input: 5.4 kV
Electromagnetic susceptibility	Emission	IEC 61326-1, EN 50081-1, EN 55011 Class B
	Immunity	IEC 61326-1 / Annex A (industrial sector), EN 50082-1
