Description

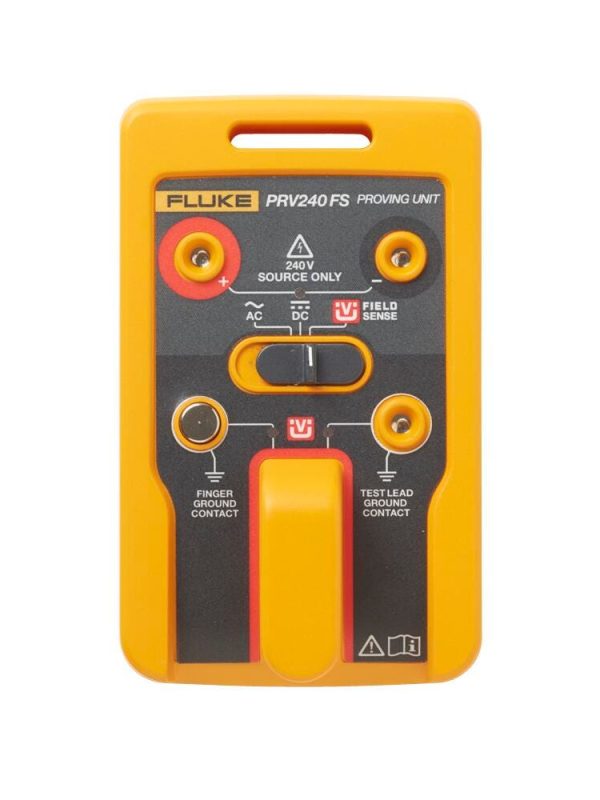

Verify the presence of voltage in electrical systems with the Fluke PRV240FS Proving Unit, a reliable and accurate test voltage indicator. This compact device is designed for use in a variety of applications, from industrial settings to commercial environments.

With its 240 V ac rms or dc output voltage and LED power indicator, the Fluke PRV240FS Proving Unit provides a clear and concise way to test for voltage presence. The device is powered by 4 x AA Alkaline batteries, which provide up to 1100 (10-second duration) test cycles with a load of >1 MΩ.

Fluke PRV240FS Key Features

The Fluke PRV240FS Proving Unit features a range of key specifications, including:

Output voltage: 240 V ac rms or dc
LED power indicator: Turns on when output voltage is present
Battery: 4 x AA Alkaline batteries
Battery life: 1100 (10-second duration) test cycles with >1 MΩ load
Operating temperature: -10 °C to +50 °C
Operating humidity: 0 % to 90 % (0 °C to 35 °C)
Dimensions: 11.7 cm x 7.4 cm x 4.5 cm (4.6 in x 2.9 in x 1.75 in)
Weight: 0.32 kg (12 oz) includes batteries

Who Needs the Fluke PRV240FS?

The Fluke PRV240FS Proving Unit is designed for use by technicians, engineers, and buyers who require a reliable and accurate test voltage indicator. This device is ideal for use in a variety of applications, from industrial settings to commercial environments.

Fluke PRV240FS Applications

Use case 1: Verify the presence of voltage in electrical systems before performing maintenance or repairs.
Use case 2: Test for voltage presence in industrial settings, such as factories or warehouses.
Use case 3: Use the Fluke PRV240FS Proving Unit to test for voltage presence in commercial environments, such as offices or retail spaces.
Use case 4: Verify the presence of voltage in electrical systems before connecting new equipment or devices.
Use case 5: Test for voltage presence in electrical systems during troubleshooting or diagnostic procedures.

Why Buy Fluke PRV240FS from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke PRV240FS Proving Unit at a competitive price, with fast shipping and excellent customer service. Our team of experts is available to answer any questions you may have about this product, and we offer a range of other Fluke products to meet your needs.

Fluke PRV240FS Specifications

Specifications
Output voltage	240 V ac rms or dc		± 10 % ≥ 1 MΩ
LED power indicator	Turns on when output voltage is present
Battery	4 x AA Alkaline batteries NEDA 15 A IEC LR6
Battery life	1100 (10-second duration) test cycles with >1 MΩ load
Operating temperature	-10 °C to +50 °C
Operating humidity	0 % to 90 % (0 °C to 35 °C)		0 % to 70 % (35 °C to 55 °C)
Operating altitude	2000 m
Dimensions	11.7 cm x 7.4 cm x 4.5 cm (4.6 in x 2.9 in x 1.75 in)
Weight	0.32 kg (12 oz) includes batteries
Safety	IEC61010-1, IEC61010-2-030
Warranty	One-year
Electromagnetic Compatibility (EMC)	IEC 61326-1: Controlled Electromagnetic Environment CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
	US (FCC)	47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103
	Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
