Description

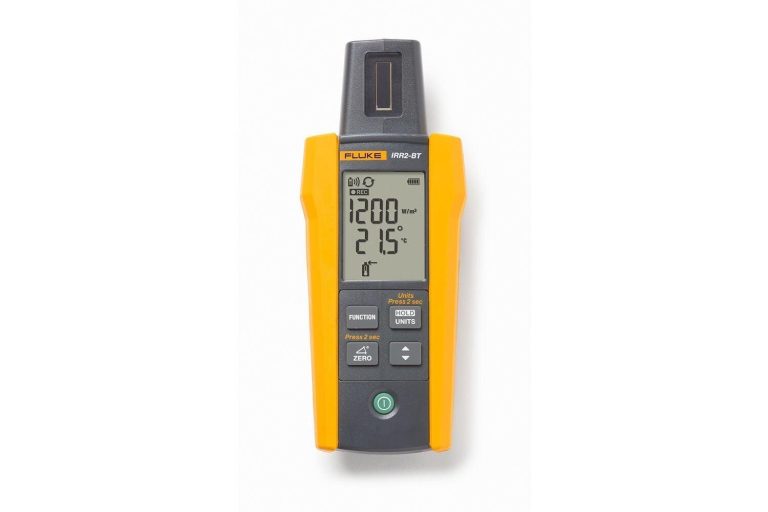

The Fluke Solar Site Survey Irradiance Meter with Mounting Bracket is a powerful tool for solar site surveys, providing accurate irradiance measurements and other essential data for optimal solar panel placement.

With its rugged design and long battery life, this meter is perfect for outdoor use, and its wireless connectivity makes it easy to transfer data to your device.

Fluke Solar Site Survey Irradiance Meter with Mounting Bracket Key Features

This meter measures irradiance, temperature, inclination angle, and compass direction, providing a comprehensive view of the solar site.

Irradiance measuring range: 50 to 1400 W/m²
Resolution: 1 W/m²
Measuring accuracy: ±(5 % + 5 Digit)
Temperature measuring range: -30 °C to 100 °C (-22 °F to 212 °F)
Resolution: 0.1 °C (0.2 °F / 1 °F @ > 100 °F)
Measuring accuracy: ±1 °C (±2 °F) @ -10 °C to 75 °C (14 °F to 167 °F)
Inclination angle measuring range: -90° to +90°
Resolution: 0.1°
Measuring accuracy: ±1.5° @ -50° to +50°
Compass measuring range: 0° to 360°
Resolution: 1°
Measuring accuracy: ±7°

Who Needs the Fluke Solar Site Survey Irradiance Meter with Mounting Bracket?

This meter is designed for solar site surveyors, engineers, and technicians who need accurate and reliable data to optimize solar panel placement and performance.

Its rugged design and long battery life make it perfect for outdoor use, and its wireless connectivity makes it easy to transfer data to your device.

Fluke Solar Site Survey Irradiance Meter with Mounting Bracket Applications

Solar site surveys: Measure irradiance, temperature, inclination angle, and compass direction to optimize solar panel placement and performance.
Solar panel installation: Use the meter to ensure accurate and reliable data for optimal solar panel installation.
Solar energy monitoring: Monitor solar energy production and performance with the meter’s wireless connectivity.
Research and development: Use the meter for research and development of new solar energy technologies.
Education and training: Use the meter for educational and training purposes to teach students about solar energy and its applications.

Why Buy the Fluke Solar Site Survey Irradiance Meter with Mounting Bracket from MME?

At MME, we offer the Fluke Solar Site Survey Irradiance Meter with Mounting Bracket with a comprehensive warranty and dedicated customer support.

Our team of experts is always available to answer any questions you may have and provide guidance on the use and maintenance of the meter.

Fluke Solar Site Survey Irradiance Meter with Mounting Bracket Specifications

Irradiance
Measuring range	50 to 1400 W/m²
Resolution	1 W/m²
Measuring accuracy	±(5 % + 5 Digit)
Temperature Measurement
Measuring range	-30 °C to 100 °C (-22 °F to 212 °F)
Resolution	0.1 °C (0.2 °F / 1 °F @ > 100 °F)
Measuring accuracy	±1 °C (±2 °F) @ -10 °C to 75 °C (14 °F to 167 °F) ±2 °C (±4 °F) @ -30 °C to -10 °C (-22 °F to 14 °F) 75 °C to 100 °C (167 °F to 212 °F)
Note: Temperature measurement response time: ~30 sec.
Inclination Angle
Measuring range	-90° to +90°
Resolution	0.1°
Measuring accuracy	±1.5° @ -50° to +50° ±2.5° @ -85° to -50° and +50° to +85° ±3.5° @ -90° to -85° and +85° to +90°
Note: Inclination accuracy is specified as the angle between a vertical and the absolute horizontal plane/true horizontal baseline. The Product is calibrated to true horizontal 0°.
Compass
Measuring range	0° to 360°
Resolution	1°
Measuring accuracy	±7°
Note: Measurements valid for device inclination between -20° and +20° to horizontal. Outside that range, — shows on the LCD. Result is in reference to magnetic north.
Memory
Type	EEprom
Size (kB/records)	64 kB/6400
Recording time	17 hours
RTC	Yes (super CAP supply)
Communication	BT: BL653 module (only with SMFT)
Power Supply and Battery Life
Batteries	4x AA IEC LR6
Battery life (typical)	50 hours (>9000 readings)
Auto power off	30 minutes
Temperature
Operating (IRR2-BT)	-20 °C to 50 °C, humidity <80 %, noncondensing
Operating (80PR-IRR)	-30 °C to 100 °C
Storage	-30 °C to 60 °C (humidity <80 %)
Altitude	0 m to max. 2000 m
Wireless Radio Module
Frequency range	2.402 GHz to 2.480 GHz
Output power	8 dBm
Dimensions
Size	150 mm x 80 mm x 35 mm (5.90 in x 3.14 in x 1.37 in)
Weight	231g (0.5 lb)
Protection
Ingress Protection	IEC 60529 IP40
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Portable Electromagnetic Environment
	CISPR 11: Group 1, Class A
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
	Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication Equipment)
Korea (KCC)	Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
