Fluke T5-1000 Electrical Tester Kit

Description

Fluke T5-1000 Electrical Tester Kit

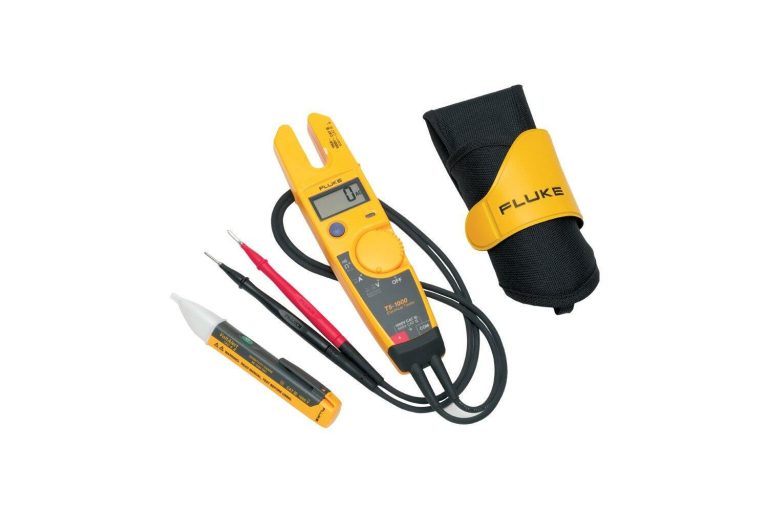

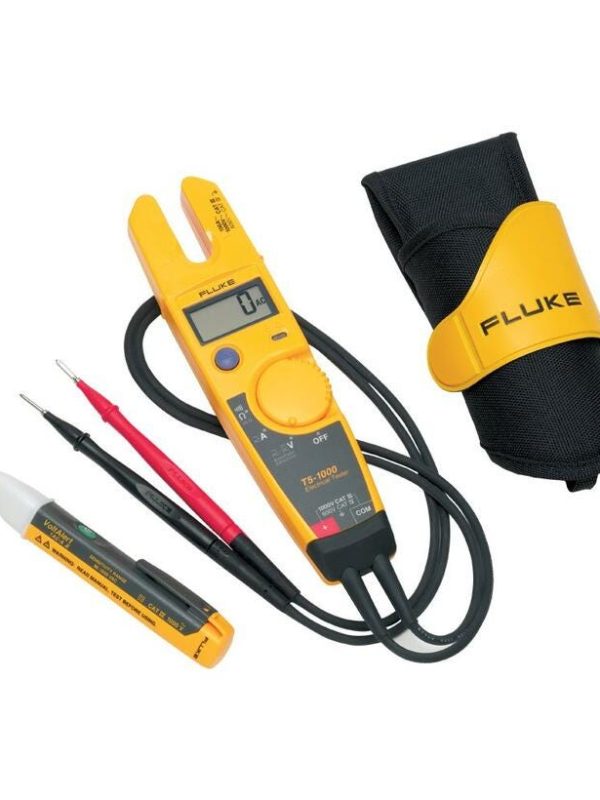

The Fluke T5-1000 tester kit (Fluke P/N 3449405) gives electricians the tools for quick checks in one package: the Fluke T5-1000 electrical tester, the H5 holster and the Fluke 1AC II non-contact voltage detector. The T5-1000 measures voltage up to 1000 V AC/DC, continuity and resistance, and reads current up to 100 A AC through its OpenJaw slot without breaking the circuit.

Turn the dial to volts, continuity or current and the tester does the rest. It switches between AC and DC by itself, and the test leads store in the back of the tester. The 1AC II lets you check for live voltage before you touch a conductor.

Key Features

0 to 1000 V AC/DC with automatic AC/DC selection
OpenJaw current up to 100 A AC on conductors up to 12.9 mm
Resistance to 1000 Ω and continuity beeper
CAT IV 600 V / CAT III 1000 V safety rating; CSA and TÜV approved
3 m drop tested; works from -10 °C to 50 °C
About 400 hours on 2 AA alkaline batteries
SlimReach detachable 4 mm probe tips
H5 holster and 1AC II voltage detector included

What’s in the Kit

Fluke T5-1000 kit contents
Fluke T5-1000	Electrical tester: voltage, current, resistance and continuity
Fluke H5	Holster for the T5
Fluke 1AC II	VoltAlert non-contact voltage detector, 90 to 1000 V AC, CAT IV 1000 V
Test probes	4 mm detachable SlimReach probe tips
Documents	Instruction sheet
Fluke part number	3449405 (T5-1000 alone: 648219)

Fluke T5-1000 Specifications

Fluke T5-1000 specifications (Fluke data)
AC/DC voltage	0 to 1000 V; AC ±(1.5 % + 2 counts), DC ±(1 % + 1 count); automatic AC/DC selection
AC current (OpenJaw)	0 to 100.0 A AC, 50/60 Hz, ±(3 % + 3 counts), averaging
Jaw size	12.9 mm, fits conductors up to 1/0 THHN
Resistance	0 to 1000 Ω
Continuity	Beeper on below 25 Ω, off above 400 Ω
Voltage indication	LED lights from 30 V AC
Safety rating	IEC 61010-2-032/-033: CAT IV 600 V / CAT III 1000 V, 100 A AC
Approvals	CSA, TÜV
Drop test	3 m
Operating temperature	-10 °C to 50 °C (storage -30 °C to 60 °C)
Altitude	Up to 2000 m
Battery	2 × AA; about 400 hours (alkaline), 200 hours (zinc chloride); auto power off
Size and weight	30.5 × 51 × 203 mm, 300 g
Warranty	2 years (Fluke)

Typical Applications

Checking voltage at panels, outlets and equipment terminals
Reading load current on single conductors without opening the circuit
Continuity checks on fuses, switches and wiring
Daily electrical maintenance in buildings and plants

Accessories and Related Tools

Fluke T5 RLS replacement test leads
Fluke TP1 slim reach test probes and Fluke TP38 slim reach probes
Fluke AC285 SureGrip alligator clips
Fluke T5-600 electrical tester for systems up to 600 V
Fluke T5-600/62 MAX+/1AC II kit with an infrared thermometer
Fluke T6-1000 PRO for voltage without contact through FieldSense
Fluke BK120 SmartTrace breaker finder

The same tools are also listed as the Fluke T5-H5-1AC II kit. Browse all electrical testers, voltage detectors and more Fluke products. Read our guide to electrical safety standards and CAT ratings.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Fluke T5-1000 Kit FAQ

What is in the Fluke T5-1000 tester kit?

The Fluke T5-1000 electrical tester, the H5 holster, the 1AC II non-contact voltage detector, 4 mm detachable probe tips and an instruction sheet. The Fluke part number is 3449405.

How does the T5-1000 measure current without test leads?

It has an OpenJaw current sensor in the top of the tester. Slide a single conductor up to 12.9 mm (1/0 THHN) into the slot to read up to 100 A AC.

What voltage can the T5-1000 measure?

0 to 1000 V AC and DC. It selects AC or DC automatically, with ±1.5 % + 2 counts on AC and ±1 % + 1 count on DC.

Is the T5-1000 true-rms?

No. Fluke lists it as an averaging meter, so readings on distorted waveforms can differ from a true-rms meter. For true-rms clamp readings see the Fluke 323 or Fluke T6-1000 PRO.
