Description

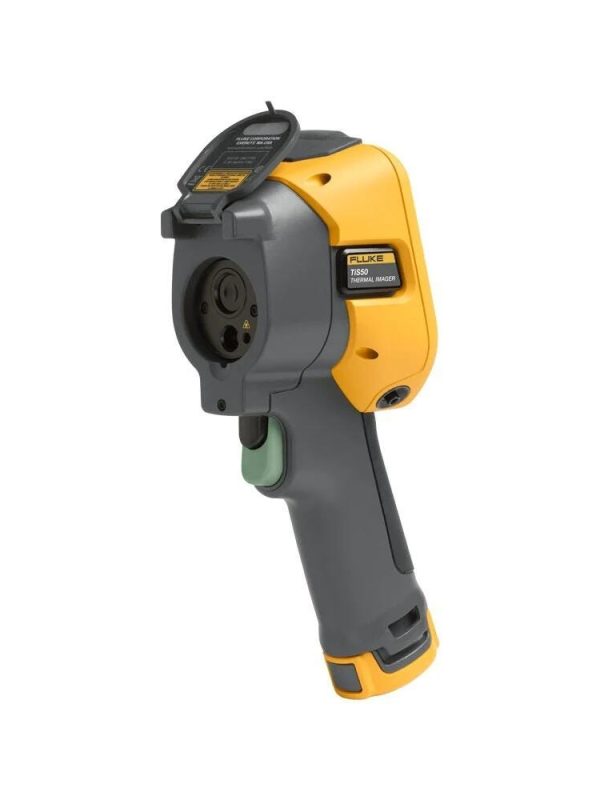

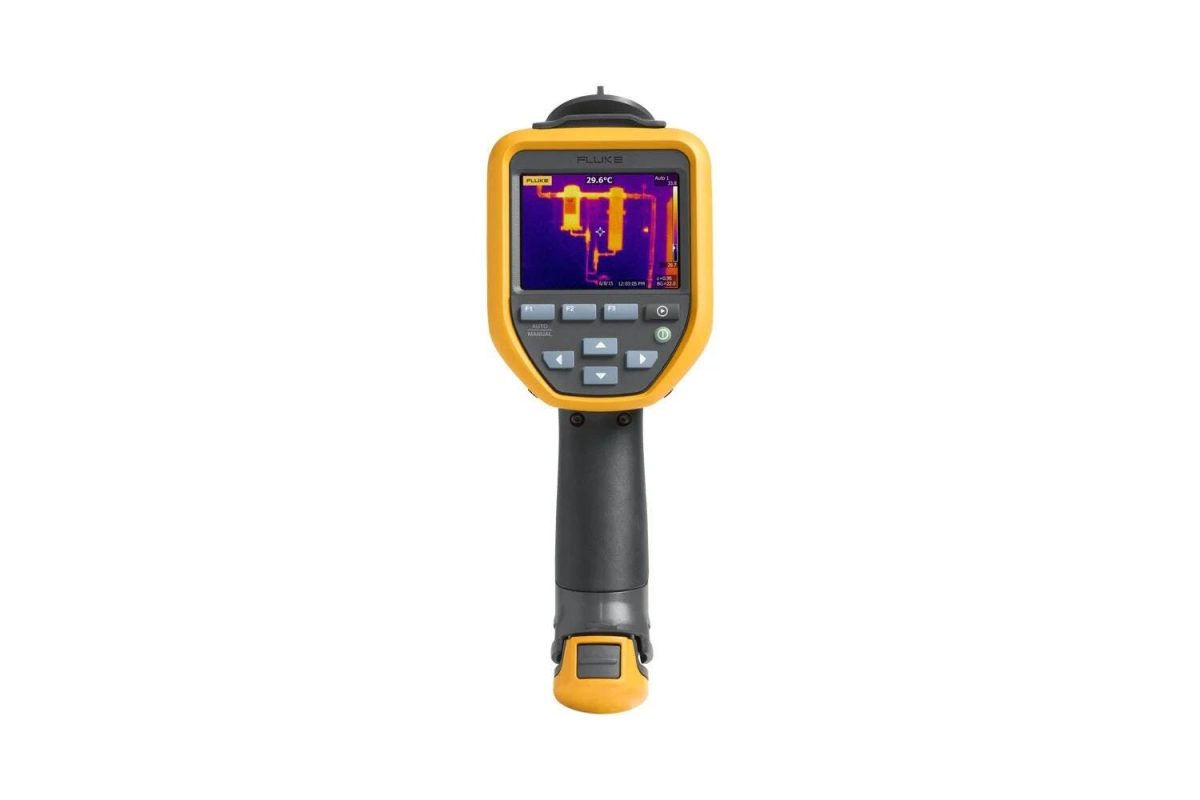

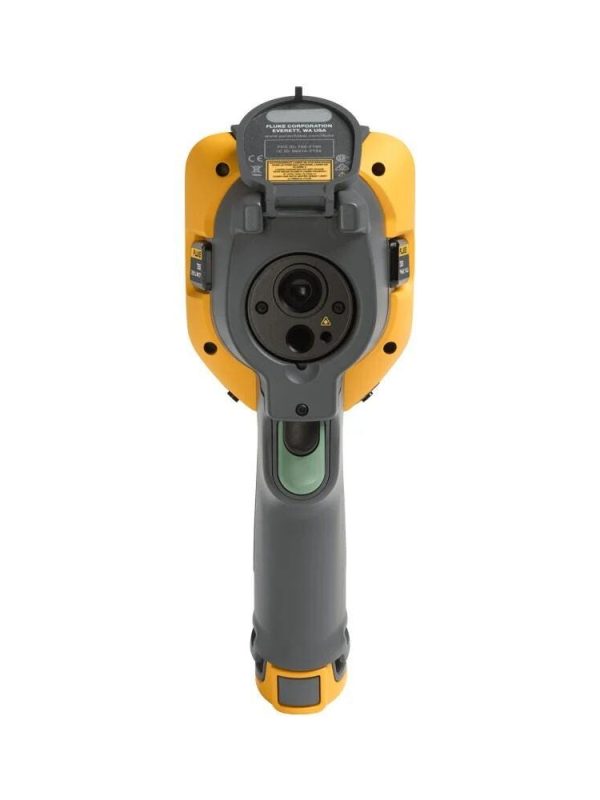

The Fluke TiS50 Infrared Camera is a powerful tool for thermographers and engineers, offering high-resolution thermal imaging and advanced features for precise temperature measurement.

With its 220×165 detector resolution and 35.7 ° x 26.8 ° field of view, the TiS50 provides accurate and detailed temperature readings, while its 353:1 distance to spot ratio ensures reliable results.

Fluke TiS50 Key Features

The Fluke TiS50 Infrared Camera features a range of advanced technologies, including IR-Fusion Technology and AutoBlend mode, which enhance image quality and provide a more accurate representation of temperature distribution.

IFOV (spatial resolution): 2.8 mRad
Detector resolution: 220×165
Field of view: 35.7 ° x 26.8 °
Distance to spot: 353:1
Wireless connectivity: Yes
Fluke Connect app compatible: Yes (where available)
IR-Fusion Technology: Yes
AutoBlend mode: 5 presets (0%, 25%, 50%, 75%, 100%)
Picture-In-Picture (PIP): 5 presets (0%, 25%, 50%, 75%, 100%)
Focus system: Fixed focus, Minimum focus distance 0.45 m (1.5 ft)
Ruggedized display: 3.5 inch (landscape) 320×240 LCD
Rugged, ergonomic design for one-handed use: Yes
Thermal sensitivity (NETD): ≤ 0.08 °C at 30 °C target temp (80 mK)
Temperature measurement range (not calibrated below -10 °C): -20 °C to +450 °C (–4 °F to 842 °F)
Level and span: Smooth auto and manual scaling
Fast auto toggle between manual and auto modes: Yes
Fast auto-rescale in manual mode: Yes
Minimum span (manual mode): 2.5 °C
Minimum span (auto mode): 5 °C
Built-in digital camera (visible light): 5 MP
Frame rate: 9 Hz
Laser pointer: Yes

Who Needs the Fluke TiS50?

The Fluke TiS50 Infrared Camera is designed for thermographers and engineers who require accurate and reliable temperature measurements in a range of applications, including industrial, commercial, and residential settings.

With its advanced features and ruggedized design, the TiS50 is ideal for use in harsh environments and provides a high level of precision and accuracy in temperature measurement.

Fluke TiS50 Applications

Industrial equipment maintenance and troubleshooting.
Building diagnostics and energy efficiency analysis.
Electrical system inspection and testing.
HVAC system analysis and optimization.
Automotive diagnostics and repair.
Medical equipment maintenance and calibration.
Research and development applications.

Why Buy Fluke TiS50 from mme-ae?

At mme-ae, we offer the Fluke TiS50 Infrared Camera at a competitive price, with fast shipping and excellent customer service.

Our team of experts is available to provide technical support and guidance on the use and application of the TiS50, ensuring that you get the most out of your investment.

Fluke TiS50 Specifications

Key Features
IFOV (spatial resolution)	2.8 mRad
Detector resolution	220×165
Field of view	35.7 ° x 26.8 °
Distance to spot	353:1
Wireless connectivity	Yes
Fluke Connect® app compatible	Yes (where available)
IR-Fusion® Technology
AutoBlend™ mode	5 presets (0%, 25%, 50%, 75%, 100%)
Picture-In-Picture (PIP)	5 presets (0%, 25%, 50%, 75%, 100%)
Focus system	Fixed focus, Minimum focus distance 0.45 m (1.5 ft)
Ruggedized display	3.5 inch (landscape) 320×240 LCD
Rugged, ergonomic design for one-handed use	Yes
Thermal sensitivity (NETD)	≤ 0.08 °C at 30 °C target temp (80 mK)
Temperature measurement range (not calibrated below -10 °C)	-20 °C to +450 °C (–4 °F to 842 °F)
Level and span	Smooth auto and manual scaling
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (manual mode)	2.5 °C
Minimum span (auto mode)	5 °C
Built-in digital camera (visible light)	5 MP
Frame rate	9 Hz
Laser pointer	Yes
Data storage and Image Capture
Extensive SD memory system	Internal 4 GB memory and 4 GB removable micro SD card
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Image file formats	Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); No analysis software required for non-radiometric (.bmp, .jpg) files
Instant upload	Instantly upload captured images to Fluke Connect server with the use of a WiFi connection
Memory review	Thumbnail review
Software	SmartView® software – full analysis and reporting software and Fluke Connect® (where available)
Export file formats with SmartView® software	BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation	Yes, Bluetooth Headset (sold separately)
IR-PhotoNotes™	Yes (1 image)
Standard video recording	–
Radiometric video recording	–
Video file formats	–
Streaming video (remote display)	–
Battery
Batteries (field-replaceable, rechargeable)	One lithium ion smart battery pack with five-segment LED display to show charge level
Battery life	Four+ hours
Battery charge time	2.5 hours to full charge
Battery charging system	In-imager charging (optional external charger sold separately)
AC operation	AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Temperature Measurement
Accuracy	±2 °C or 2% (at 25 °C nominal, whichever is greater)
On-screen emissivity correction	Yes (both value and table)
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Color Palettes
Standard palettes	8: Ironbow, Blue-Red, High-Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes	–
General Specifications
Color alarms (temperature alarms)	High temperature, low temperature, Isotherms
Infrared spectral band	7.5 μm to 14 μm
Operating temperature	-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature	-20 °C to +50 °C (-4 °F to 122 °F)
Relative humidity	10% to 95%, non-condensing
Center-point temperature measurement	Yes
Spot temperature	Yes
User-definable spot markers	2
Center box	Expandable-contractible measurement box with MIN-MAX-AVG temp
Safety standards	EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
Electromagnetic compatibility	EN 61326-1:2006, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
C Tick	IEC/EN 61326-1
US FCC	EN61326-1; FCC Part 5, EN 55011: Class A, EN 61000-4-2, EN 61000-4-3
Vibration and shock	2G, IEC 68-2-6 and 25G, IEC 68-2-29
Drop	Engineered to withstand 2 m (6.5 ft) drop
Size (H x W x L)	26.7 x 10.1 x 14.5 cm (10.5 x 4.0 x 5.7 in)
Weight (battery included)	Fixed focus .72 kg (1.6 lb), Manual focus .77 kg (1.7 lb)
Enclosure rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard), extended warranties are available
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
