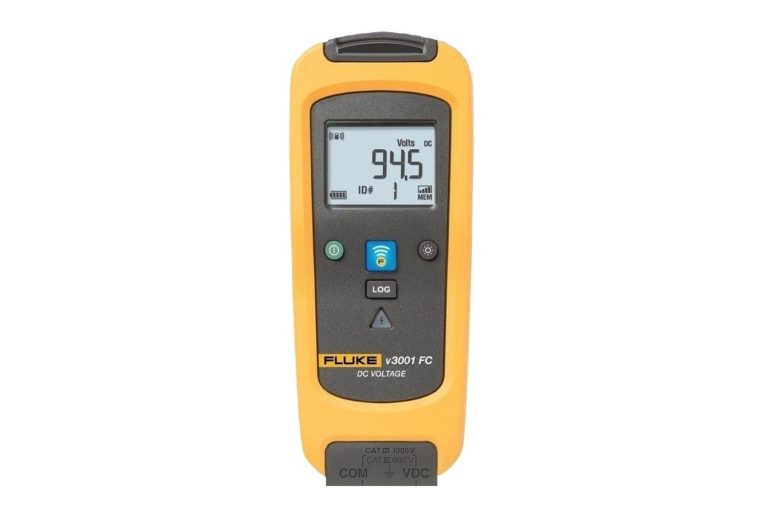

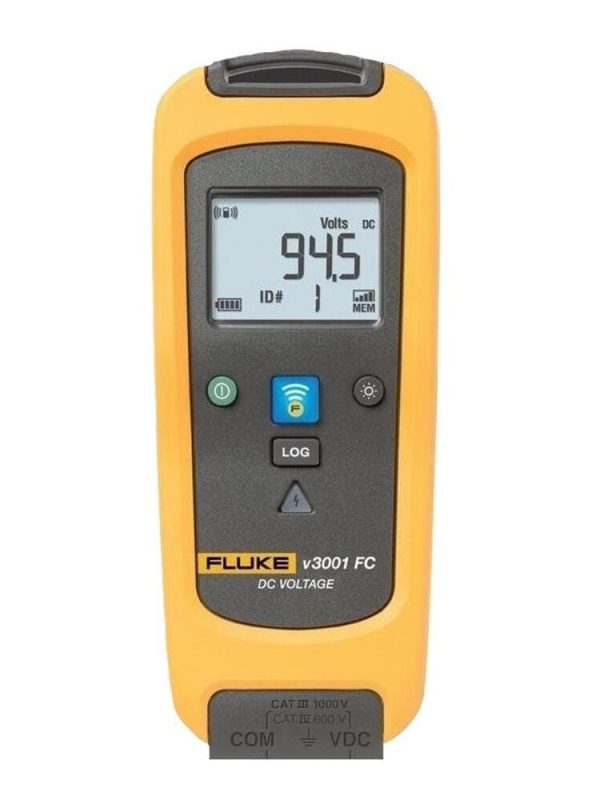

Description

The Fluke v3001 FC Wireless DC Voltage Module is a cutting-edge solution for technicians and engineers who require accurate and reliable DC voltage measurements. With its advanced wireless technology, this module allows for seamless communication with your Fluke CNX test tools, making it an ideal choice for a variety of applications.

Whether you’re working on electrical systems, automotive diagnostics, or industrial maintenance, the v3001 FC is designed to deliver precise measurements with ease.

Fluke v3001 FC Key Features

The v3001 FC boasts an impressive range of features, including:

0.09% + 3 VDC accuracy for precise measurements
1000 V / 1 V range for comprehensive voltage coverage
2.4 GHz ISM Band RF communication for seamless data transfer
400 hours minimum battery life for extended use
Three years warranty for peace of mind

Who Needs the Fluke v3001 FC?

The v3001 FC is designed for professionals who require accurate and reliable DC voltage measurements. Whether you’re working on electrical systems, automotive diagnostics, or industrial maintenance, this module is an essential tool for your toolkit.

Fluke v3001 FC Applications

Electrical system testing and diagnosis
Automotive diagnostics and repair
Industrial maintenance and troubleshooting
Research and development
Quality control and assurance

Why Buy Fluke v3001 FC from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the v3001 FC at competitive prices, along with exceptional customer service and support. Our team of experts is dedicated to helping you find the right solution for your needs.

Fluke v3001 FC Specifications

Voltage Specifications
Function
mV DC	Range¹ / resolution	600.0 mV / 0.1 mV
	Accuracy	0.09% + 3
VDC	Range¹ / resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
	Accuracy	0.09% + 3
	Range¹ / resolution	1000 V / 1 V
	Accuracy	0.15% + 2
Accuracy is specified for 1 year after calibration, at operating temperatures of 18°C to 28°C, with relative humidity at 0% to 90%. Accuracy specifications take the form of ±([% of Reading] + [Number of least significant digits]).All ranges are autoranging. Accuracy is specified from the range obtained by autoranging, from 18°C to 28°C.
General Specifications
LCD w/ backlight	3 ½ digits, 6000 counts, 4/sec update rate
Battery type	2 AA Alkaline batteries, NEDA 15A, IEC LR6
Log rate/interval	Adjustable by PC from 1 sec to 1 hr, default 1 min
Battery life	400 hours minimum
Memory	Record up to 65,000 readings
RF communications	2.4 GHz ISM Band
RF communication range	Open air, unobstructed	Up to 20 m
	Obstructed, sheetrock wall	Up to 6.5 m
	Obstructed, concrete wall or steel electrical enclosure	Up to 3.5 m
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +60°C
Temperature coefficient	0.1 x (specified accuracy) / °C ( 28°C)
Relative humidity	0% to 90% (0°C to 35°C), 0% to 75% (35°C to 40°C), 0% to 45% (40°C to 50°C)
EMC	IEC 61236–1, Portable
Safety compliance	IEC 61010–1, 600 V CAT IV / 1000 V CAT III, 3rd edition, Pollution Degree 2
Certifications	CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating	IP42
Size (H x W x D)	160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in)
Weight	0.255 kg (9 oz)
Warranty	Three years
Not compatible with Fluke CNX test tools

Datasheet

Fluke v3001 FC Wireless DC Voltage Module | Data sheetsPDF

User Manual

Official user manualPDF
