Description

The Hioki Hioki 3274 delivers accurate, repeatable measurements for professionals who need trustworthy Hioki performance. Available in the UAE from mme-ae.com, it helps engineers and technicians work faster with clear, manufacturer-backed specifications.

Choose the Hioki Hioki 3274 when you need official Hioki quality with local supply support from MME / Mohammad Mahdi Electronics.

Hioki Hioki 3274 Key Features

These highlights come from Hioki’s published product data for the Hioki 3274 series.

Waveform observation across a wide band from DC to MHz
Connects directly to oscilloscope or Memory HiCorder BNC input terminal (*1)

Who Needs the Hioki 3274?

Electronics manufacturers, test engineers, and calibration teams use the Hioki 3274 for component verification and production screening. Buyers who need UAE availability can request pricing through MME.

Maintenance and R&D groups also rely on this instrument when documentation, accuracy, and supportability matter.

Hioki 3274 Applications

Typical use cases include:

Production and quality inspection lines
Electronics design and R&D labs
Incoming inspection and sorting
Maintenance and troubleshooting of electronic components

Why Buy Hioki 3274 from MME?

Browse our current accessories. Read more in our top clamp meters for electricians.

Order from mme-ae.com for UAE supply of genuine Hioki instruments with clear product data.

Mohammad Mahdi Electronics / MME helps you confirm availability and the right configuration before you buy.

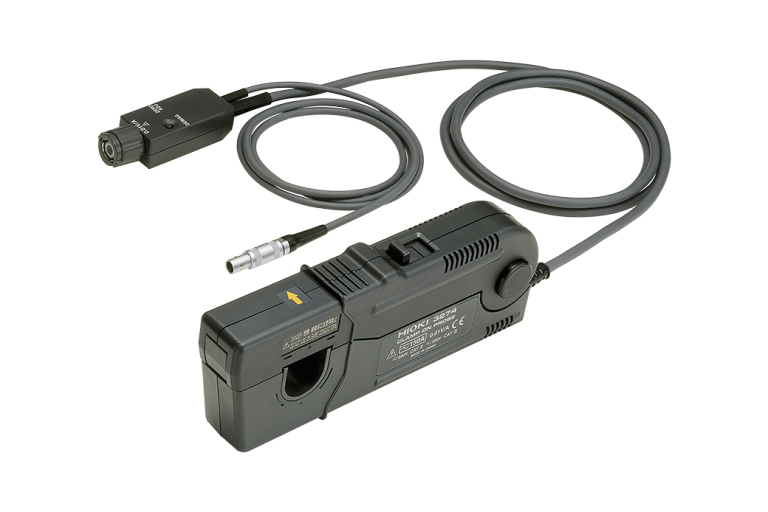

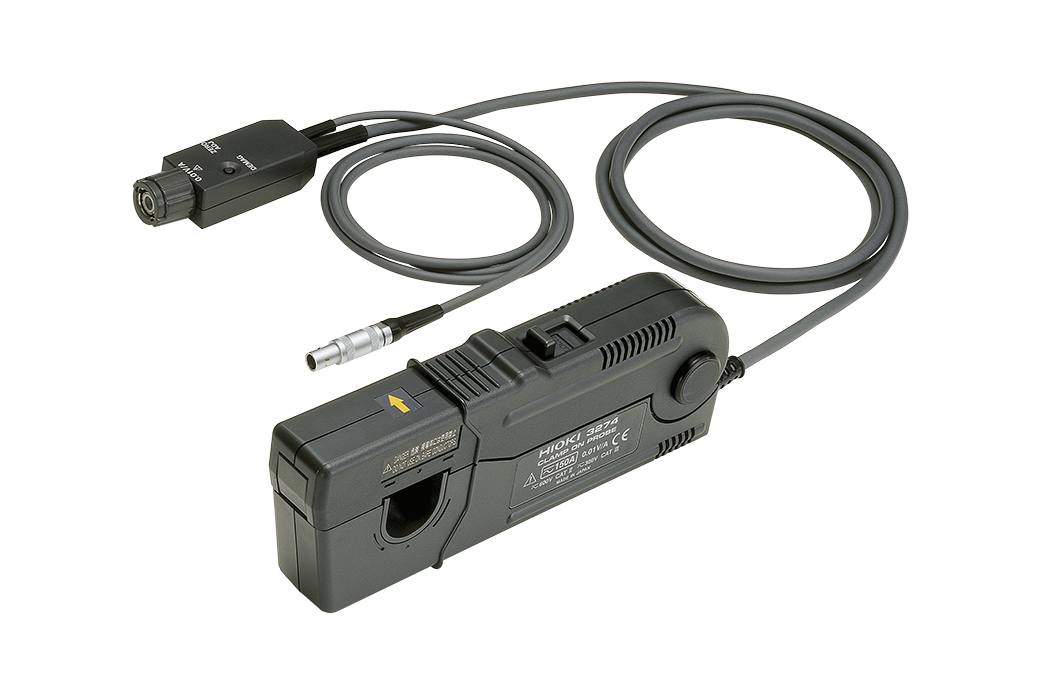

Hioki 3274 Specifications

Frequency bandwidth	DC to 10 MHz (-3 dB)
Rise time	35 ns or shorter
Noise level	25 mA rms max. (bandwidth limited to 20 MHz)
Continuous allowable input	150 A rms (requires derating at frequency)
Max. allowable peak input	300 A peak (non continuous) 500 A peak (pulse width: 30 μs or shorter)
Amplitude accuracy (30 min. after power-on, after degaussing and zero-adjustment)	±1.0 % rdg. ±1 mV f.s. (DC, 45 to 66 Hz, 0 to 150 A rms) ±2.0 % rdg. (DC, 45 to 66 Hz, 150 A to 300 A peak)
Output rate	0.01 V/A (The output of this probe is internally terminated)
Measurable conductors	Insulated conductor
Core diameter	φ 20 mm (0.79 in)
Power supply	±12 V ± 1 V, 5.5 VA max.
Dimensions and mass	176 mm (6.93 in)W × 69 mm (2.72 in)H × 27 mm (1.06 in)D, 500 g (17.6 oz) Sensor cable BNC terminal: 2 m (6.56 ft), Power cable: 1 m (3.28 ft)
Included accessories	Instruction manual ×1, Carrying case × 1
