Hioki 3481-20 Voltage Detector
Short Description:
The Hioki 3481 20 is a pen-style, non-metallic contact voltage detector with a bright LED light that promotes safety and work efficiency even in dim worksites.
Product purchase
AED 103 (excl.VAT)
20
People watching this product now!
Terms of sending goods ›

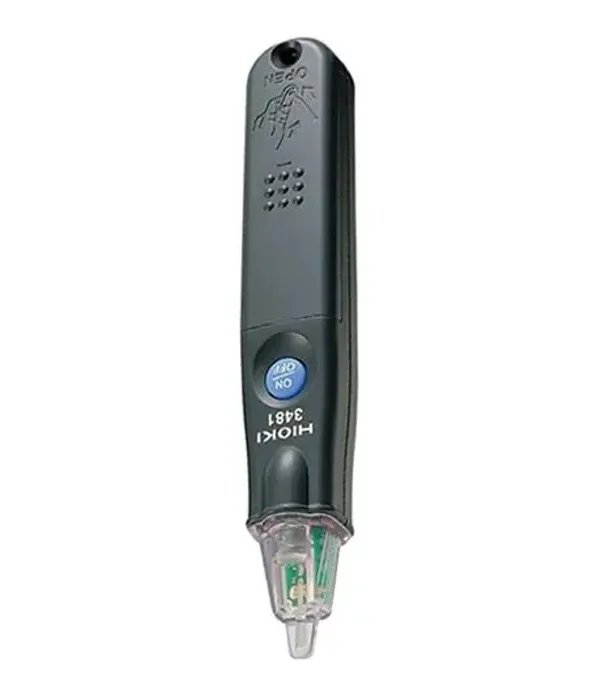

Hioki 3481 20 Voltage Tester
Hioki leads the industry in non-metallic contact test and measurement technology that promotes safety on the worksite. The Hioki 3481 20 is a pen-style, non-metallic contact voltage detector with a bright LED light that supports safety and work efficiency even in dim worksites. When voltage is detected, the LED lights red along with an audio signal. to buy hioki 3481 20 and similar hioki products please contact us. To download Hioki 4381-20 manual pdf visit the Hioki website.
To compare the Hioki voltage tester with other voltage detectors on our website, you can use the “Compare” button on our site. It allows you to compare products based on price, technical specifications, key features, and more. You can compare products side by side to make an informed decision.
Hioki Voltage Detector Features
- Non-contact detection of AC voltage from 40 V to 600 V with bright LED light
- Pen-style, a compact detector with a pocket clip
- Both visual and audible voltage detection indication
- Meets safety standards for CAT IV 600 V environments
- Prevent dead batteries with battery self-check function and auto power-off function
Safe, compact voltage detection with CAT IV (600 V) capability: The compact and lightweight design makes it easy to take this instrument anywhere. The absence of exposed metal on the sensor allows for a reliable measurement.
Light designed to facilitate use in dim locations: The tip of the instrument contains a light, which comes in handy when you need to check the area to be measured or your work area in the dark.
Functionality for adjusting sensitivity based on the operating environment: The instrument’s detection sensitivity can be adjusted within the 40 V to 80 V AC range.
datasheet
Video
specifications
Hioki 3481 20 specifications
| Measurement Function | Voltage detection |
|---|---|
| Operating Voltage Range | 40 V to 600 V AC (When brought into contact with a 2 mm^2 insulated cable equivalent to 600 V polyvinyl chloride insulated wire) |
| Maximum Sensitivity Variable Range | 40 V to 80 V AC (80 V at the time of shipment) |
| Operating Frequency | 50 Hz/ 60 Hz |
| Pilot Light | Red LED lights up and the buzzer sounds when the wire is live |
| Battery Check | White LED is dim or out when the batteries are low. |
| Auto Power Off | The power will be turned off automatically if the instrument remains idle for 3 minutes after the power is turned on. |
| Power Supply | LR44 button alkaline batteries ×3, Continuous use: 5 hr (Power ON standby state) |
| Dimensions and Mass | 20 mm (0.79 in) W × 126 mm (4.96 in) H × 15 mm (0.59 in) D (excluding projections), 30 g (1.1 oz) (including LR44 button alkaline batteries) |
| Included Accessories | Instruction manual ×1, LR44 button alkaline batteries ×3 (for trial purposes only) |
