Description

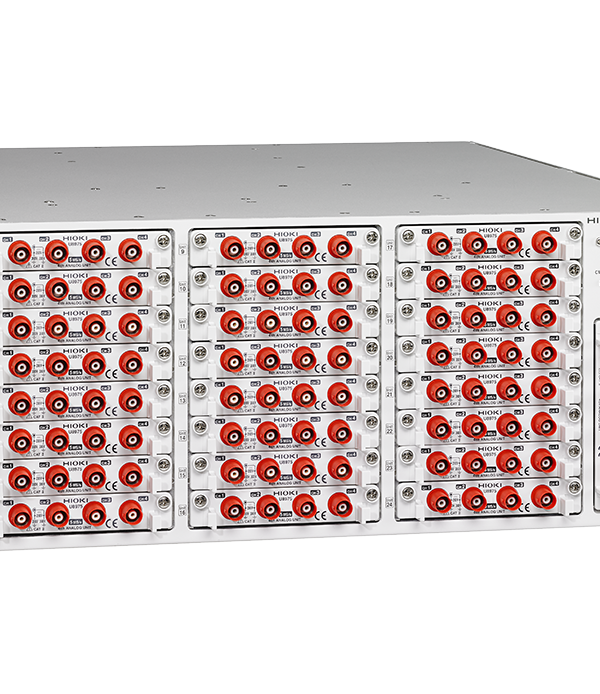

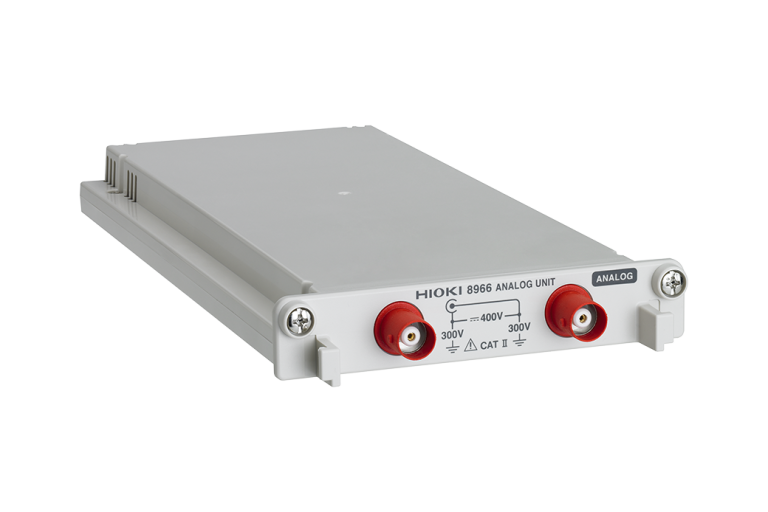

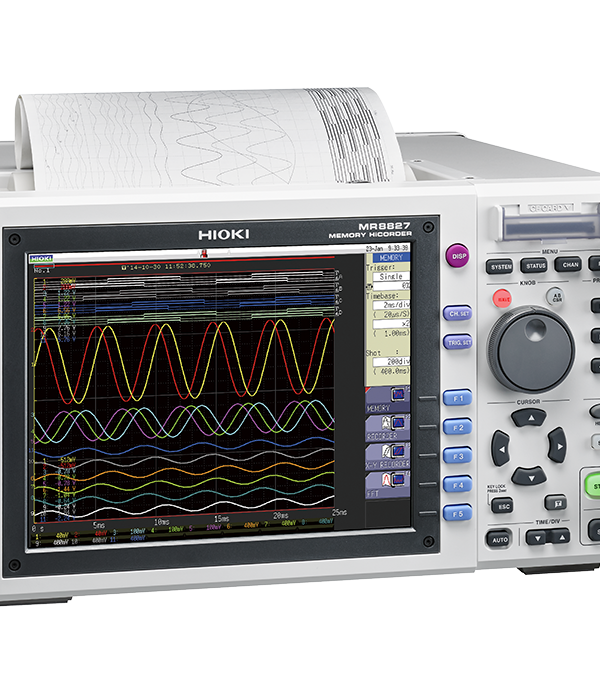

Welcome to the Hioki 8966 ANALOG UNIT, a high-performance analog unit designed for precise voltage measurement. With its high 12-bit A/D resolution and isolated 2 channel input, this unit is ideal for capturing instantaneous waveforms with high speed and accuracy.

At MME, we understand the importance of reliable measurement tools. That’s why we recommend the Hioki 8966 ANALOG UNIT for your measurement needs.

Hioki 8966 Key Features

The Hioki 8966 ANALOG UNIT offers a range of key features that make it an ideal choice for voltage measurement.

High 12-bit A/D resolution for precise measurement
Isolated 2 channel input for safe and reliable measurement
Max. rated voltage to ground: 300 V AC, DC for safe measurement in a variety of environments
Reliably capture instantaneous waveforms using high speed 20 MS/s sampling and A/D converter for accurate and detailed measurement
Measurement functions: 2 channels for voltage measurement for flexible measurement options
Input connectors: Isolated BNC connector for safe and reliable connection
Measurement range: 5 mV to 20 V/div, 12 ranges for precise measurement in a variety of applications
Low-pass filter: 5/50/500 Hz, 5 k/50 k/500 kHz for accurate measurement in a variety of environments
Measurement resolution: 1/100 of measurement range for precise measurement
Highest sampling rate: 20 MS/s for accurate and detailed measurement

Who Needs the Hioki 8966?

The Hioki 8966 ANALOG UNIT is ideal for a variety of applications, including:

Electrical engineers and technicians who need precise voltage measurement for a variety of applications

Researchers who need accurate and detailed measurement for their experiments

Manufacturers who need reliable measurement tools for quality control

Hioki 8966 Applications

The Hioki 8966 ANALOG UNIT is suitable for a variety of applications, including:

Voltage measurement in electrical systems
Measurement of instantaneous waveforms
Accurate measurement in a variety of environments

Why Buy Hioki 8966 from MME?

Browse our electrical instruments. Read more in our measurement guides. See other Hioki instruments. Request pricing at mme-ae.com.

At MME, we offer a range of benefits when you buy the Hioki 8966 ANALOG UNIT from us, including:

Competitive pricing and fast shipping

Expert technical support and advice

A wide range of measurement tools and accessories

Hioki 8966 Specifications

Measurement functions	Number of channels: 2, for voltage measurement
Input connectors	Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF), Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
Measurement range	5 mV to 20 V/div, 12 ranges, full scale: 20 div, (AC voltage for possible measurement/display using the memory function: 280 V rms) Low-pass filter: 5/50/500 Hz, 5 k/50 k/500 kHz
Measurement resolution	1/100 of measurement range (using 12-bit A/D conversion and when installed in the 8847)
Highest sampling rate	20 MS/s (simultaneous sampling across 2 channels)
Measurement accuracy	±0.5 % of full scale (with filter 5 Hz, zero position accuracy included)
Frequency characteristics	DC to 5 MHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB
Input coupling	AC/DC/GND
Max. allowable input	400 V DC (the maximum voltage that can be applied across input pins without damage)
Dimensions and mass	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz)
Included accessories	None
