Hioki 8968 High Resolution Unit - Electrical Instruments

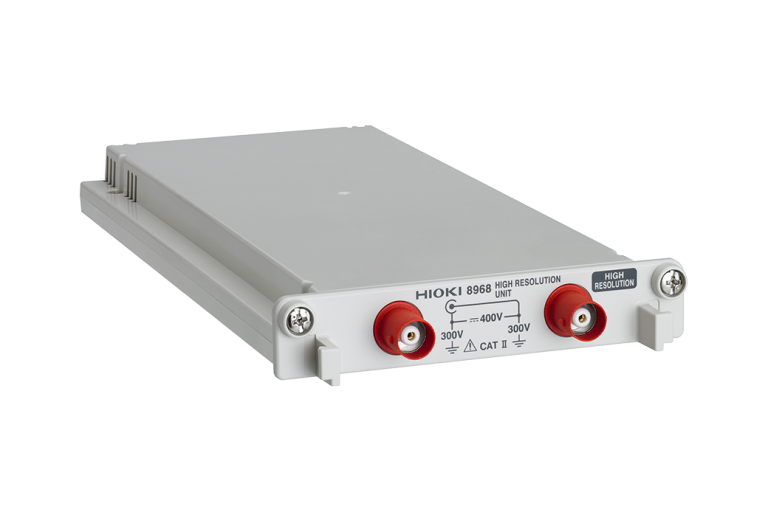

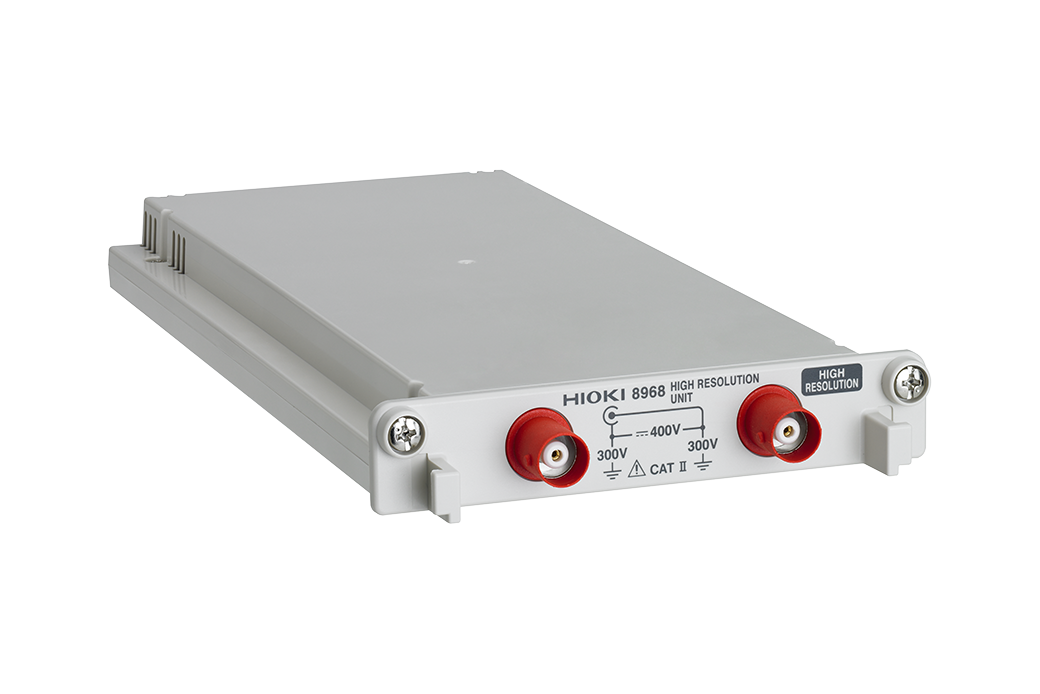

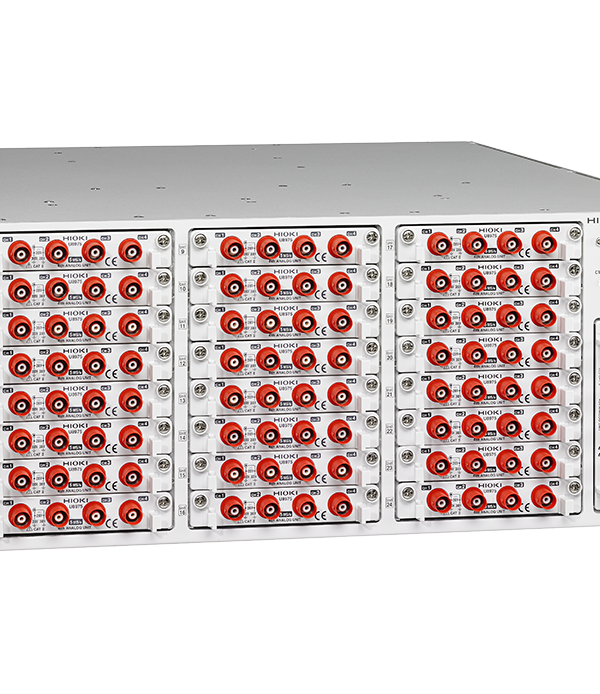

The Hioki 8968 High Resolution Unit is a precision measurement instrument designed for engineers and technicians who require exceptional accuracy in voltage measurements. This two-channel unit features isolated BNC connectors that provide electrical isolation while maintaining signal integrity with a 1 MΩ input impedance and only 30 pF capacitance. The unit supports measurement ranges from 5 mV to 20 V/div across 12 selectable ranges, making it versatile for various testing applications from low-level signals to higher voltage circuits.

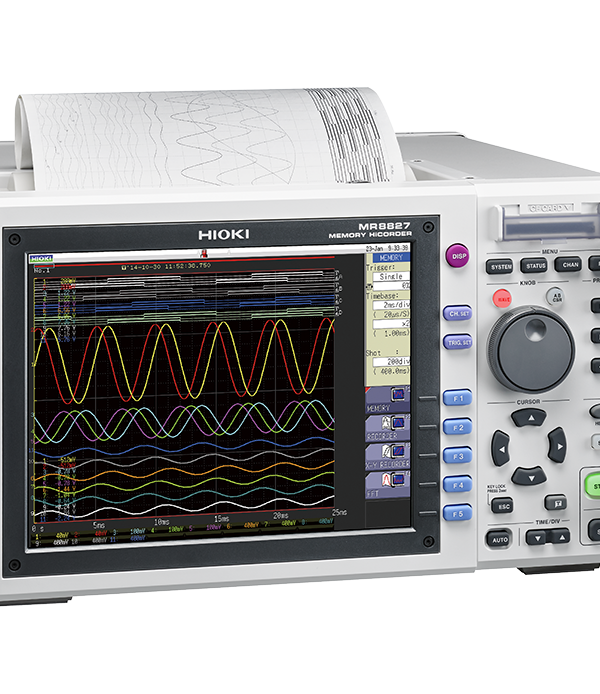

Equipped with 16-bit A/D conversion, the Hioki 8968 achieves a measurement resolution of 1/1600 of the measurement range when installed in compatible Hioki analyzers. The unit supports simultaneous sampling at 1 MS/s across both channels, ensuring accurate capture of fast-changing signals. An integrated anti-aliasing filter automatically suppresses distortion during FFT processing, while selectable low-pass filters at 5/50/500 Hz and 5 k/50 kHz allow customization of the frequency response for specific measurement needs.

Hioki 8968 Key Features

The Hioki 8968 combines high resolution with practical usability features. The isolated BNC inputs can withstand up to 300 V AC/DC to earth and 400 V DC across input pins, providing safety for various testing scenarios. The frequency characteristics span from DC to 100 kHz (-3 dB) with AC coupling extending from 7 Hz to 5 MHz, making this unit suitable for both DC and AC applications. The measurement accuracy of ±0.3% of full scale (with 5 Hz filter) ensures reliable results for critical measurements.

• Channels: 2 isolated channels for voltage measurement
• Input Connectors: Isolated BNC with 1 MΩ impedance, 30 pF capacitance
• Measurement Range: 5 mV to 20 V/div, 12 ranges, full scale 20 div
• Resolution: 1/1600 of measurement range (16-bit A/D conversion)
• Sampling Rate: 1 MS/s simultaneous across 2 channels
• Frequency Characteristics: DC to 100 kHz (-3 dB), AC coupling 7 Hz to 5 MHz
• Measurement Accuracy: ±0.3% of full scale (with 5 Hz filter)
• Input Coupling: AC/DC/GND selectable

Who Needs the Hioki 8968?

Electrical engineers and technicians working in research and development laboratories will find the Hioki 8968 indispensable for precise voltage characterization. The high resolution and dual-channel capability make it ideal for power electronics testing, where accurate measurement of small voltage variations across multiple points is critical. Designers of power supplies and motor drives will appreciate the wide frequency response and accurate sampling rate for capturing transient events and switching noise.

Quality control professionals in manufacturing environments will benefit from the unit’s stability and accuracy specifications. The isolated inputs provide safety when working with potentially hazardous voltages, while the precise measurement resolution ensures that even minor deviations from specifications are detected. Maintenance technicians troubleshooting complex electrical systems will find the dual-channel functionality valuable for comparing voltages between different points in a circuit.

Hioki 8968 Applications

The Hioki 8968 High Resolution Unit finds application across numerous electrical engineering disciplines. In power electronics research, it enables precise measurement of voltage waveforms in inverters, converters, and motor drive systems. The wide frequency response makes it suitable for audio frequency analysis and signal processing applications. Laboratory educators can use the unit to demonstrate measurement principles and waveform analysis to students.

• Power electronics testing and characterization
• Signal analysis and waveform measurement
• Research and development laboratories
• Education and training purposes
• Quality control and production testing

Why Buy Hioki 8968 from Mohammad Mahdi Electronics?

Browse our electrical instruments. Read more in our electrical safety standards guide.

Mohammad Mahdi Electronics is your trusted source for authentic Hioki instruments in the UAE. When you purchase the Hioki 8968 from MME, you receive genuine factory-backed equipment with full warranty coverage. Our team of technical experts can provide guidance on proper usage and integration with your existing Hioki measurement systems, ensuring you get the most from your investment.

We understand that investing in precision measurement equipment requires confidence in both the product and the supplier. That’s why Mohammad Mahdi Electronics maintains strict quality control and offers comprehensive support for all Hioki products. From initial selection to ongoing technical assistance, our team is committed to helping you find the right measurement solutions for your specific applications.

Secure your Hioki 8968 High Resolution Unit from Mohammad Mahdi Electronics today and experience precision measurement like never before. Our competitive pricing and reliable delivery make us the preferred choice for Hioki instruments across the UAE. Contact MME now to discuss your specific requirements and receive personalized assistance with your purchase.
