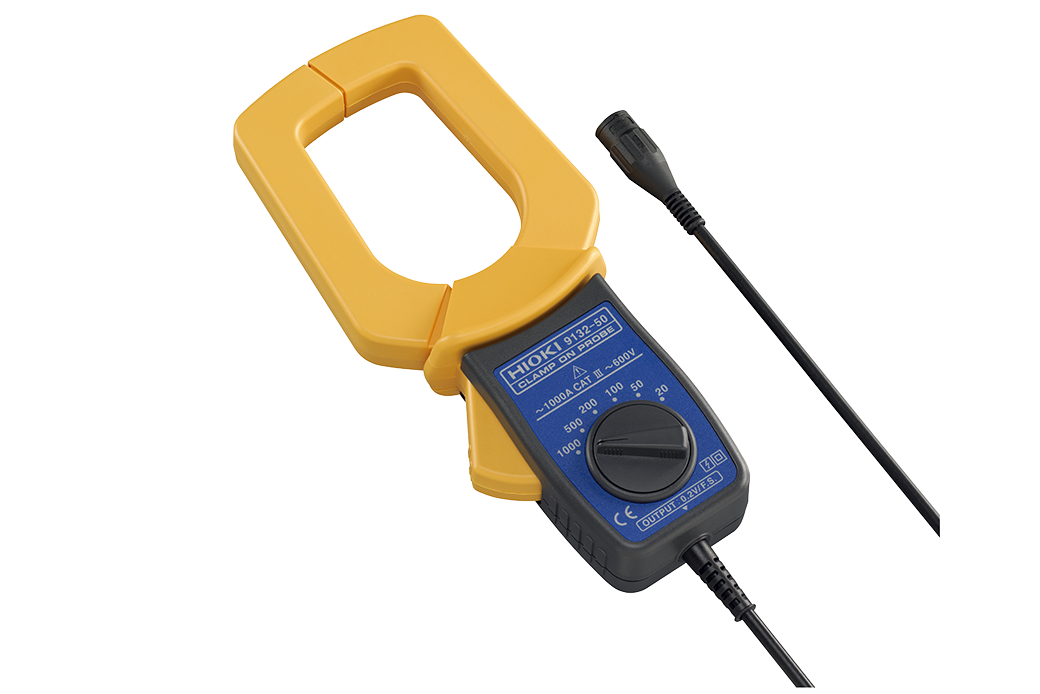

Hioki 9132-50 Clamp On Probe — High Accuracy Current Measurement

At mme-ae, we offer the Hioki 9132-50 Clamp On Probe, a high-accuracy current measurement tool designed for professionals in the electrical industry. This probe is ideal for measuring current in a variety of applications, including electrical panels, motors, and generators.

The Hioki 9132-50 features a high level of accuracy, with a rated current range of 20 A to 1000 A AC, 6 ranges. It also has a frequency characteristic of ± 1 % rdg. for frequencies from 40 to 1 kHz. The probe’s output rate is 0.2 V AC f.s., and it has a max. allowable input of 1000 A rms continuous (all ranges).

Hioki 9132-50 Key Features

The Hioki 9132-50 Clamp On Probe has several key features that make it an ideal choice for professionals in the electrical industry. These features include:

• Rated current: 20 A to 1000 A AC, 6 ranges
• Accuracy: ±3 % rdg. ±0.2 % f.s. (45 to 66 Hz)
• Frequency characteristics: Add to amplitude accuracy for frequencies from 40 to 1 kHz: ± 1 % rdg.
• Output rate: 0.2 V AC f.s. (f.s. = setting rage)
• Max. allowable input: 1000 A rms continuous (all ranges)
• Max. rated voltage to earth: 600 Vrms (50/60 Hz, CAT III)
• Core diameter: φ55 mm (2.17 in), or 20 mm (0.79 in) × 80 mm (3.15 in) busbar
• Dimensions and mass: 100 mm (3.94 in)W × 224 mm (8.82 in)H × 35 mm (1.38 in)D, 600 g (21.2 oz)

Who Needs the Hioki 9132-50?

The Hioki 9132-50 Clamp On Probe is ideal for professionals in the electrical industry who need a high-accuracy current measurement tool. This includes electricians, electrical engineers, and technicians who work with electrical panels, motors, and generators.

The Hioki 9132-50 is also suitable for use in a variety of applications, including:

Electrical panel testing and maintenance

Motor testing and maintenance

Generator testing and maintenance

Hioki 9132-50 Applications

The Hioki 9132-50 Clamp On Probe has a wide range of applications in the electrical industry. These include:

Why Buy Hioki 9132-50 from Mohammad Mahdi Electronics?

Browse our current accessories. Read more in our top clamp meters for electricians.

At Mohammad Mahdi Electronics, we offer the Hioki 9132-50 Clamp On Probe at a competitive price. We also offer a range of accessories and support services to ensure that you get the most out of your purchase.

Whether you’re a professional electrician or an electrical engineer, the Hioki 9132-50 is an ideal choice for your current measurement needs. Contact us today to learn more about this product and how it can benefit your business.

Hioki 9132-50 Specifications
