Description

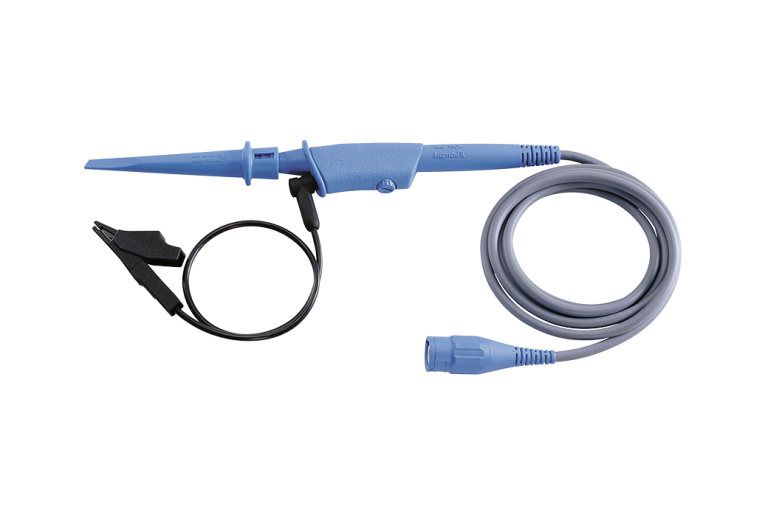

At MME, we offer the Hioki 9666 100:1 Probe, a precision instrument designed for electrical measurements. This probe is ideal for applications where high accuracy and reliability are crucial.

With its 100:1 division ratio and ±3% accuracy at 100 VDC, this probe provides precise measurements. Additionally, its 100:1 division ratio with +3%, -7% accuracy at 1000 VDC ensures reliable results even at higher voltages.

Hioki 9666 100:1 Probe Key Features

The Hioki 9666 100:1 Probe features a 5 kV peak input voltage, allowing for reliable measurements in a variety of applications. Its 100 MΩ input impedance minimizes signal loss, ensuring accurate results.

100:1 Division ratio with ±3% accuracy at 100 VDC
100:1 Division ratio with +3%, -7% accuracy at 1000 VDC
5 kV peak input voltage
100 MΩ input impedance
DC to 200 MHz frequency range
7 pF or less input capacitance
1.5 m cable length

Who Needs the Hioki 9666?

The Hioki 9666 100:1 Probe is designed for professionals who require precise electrical measurements. This probe is ideal for applications in electrical engineering, research, and development.

Whether you’re working on a complex project or simply need a reliable tool for everyday measurements, the Hioki 9666 100:1 Probe is an excellent choice.

Hioki 9666 100:1 Probe Applications

The Hioki 9666 100:1 Probe is suitable for a variety of applications, including:

Electrical engineering
Research and development
Quality control
Testing and measurement

Why Buy the Hioki 9666 100:1 Probe from MME?

Hioki 9666 100:1 Probe Specifications

Division ratio	100 : 1 ±3% (at 100 VDC) (use with a device having a 1 MΩ input resistance) 100 : 1 +3%, -7% (at 1000 VDC) (use with a device having a 1 MΩ input resistance)
Maximum input voltage	5 kV peak (1 MHz or less)
Max. rated voltage to earth	1000 V CAT II * * Maximum rated voltage above ground depends on input unit. This probe does not expand the maximum rated voltage above ground of an isolated input.
Input Impedance	100 MΩ
Frequency characteristics	DC to 200 MHz
Input capacitance	7 pF or less
Compensation capacitance range (Equipment side)	15 to 45 pF
Cable length	1.5 m (4.92 ft)
Included accessories	Vinyl case ×1
