Description

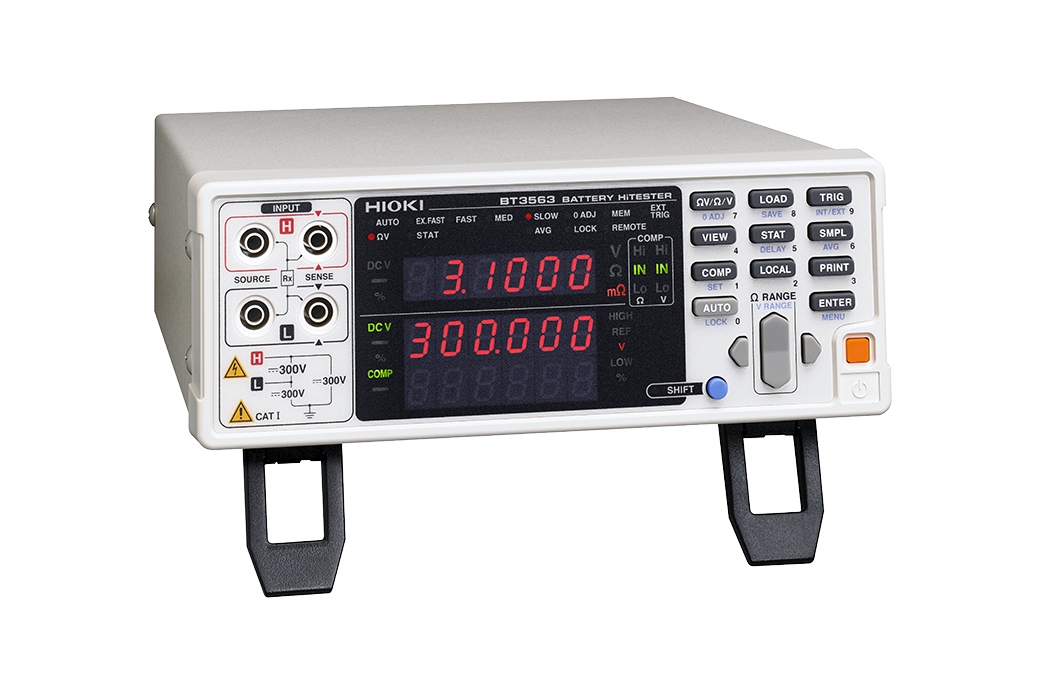

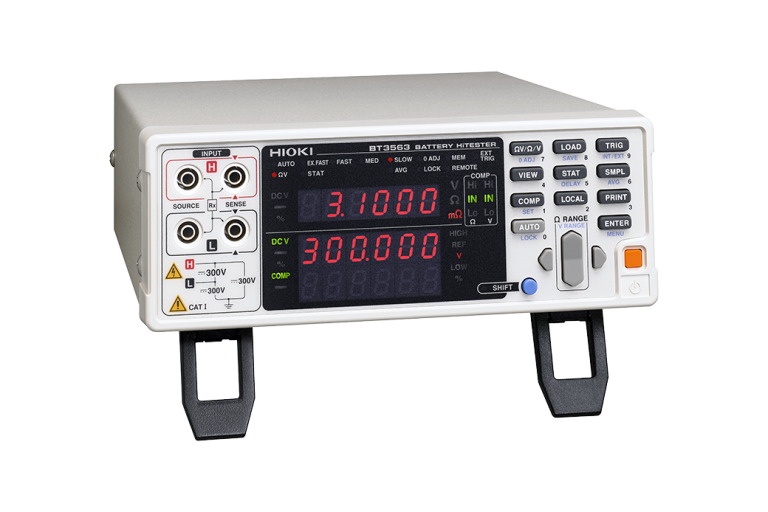

At MME, we offer the Hioki BT3563-01 Battery HiTESTER, a cutting-edge instrument designed to meet the demands of various industries. This Battery HiTESTER is built to provide accurate and reliable measurements of resistance and voltage, making it an essential tool for professionals.

With its wide measurement ranges and high accuracy, the Hioki BT3563-01 is perfect for applications such as battery testing, electrical safety testing, and more. Its compact and lightweight design makes it easy to handle and transport, while its multiple interfaces enable easy data transfer and connectivity.

Hioki BT3563-01 Key Features

The Hioki BT3563-01 features a range of key specifications, including:

Max. applied measurement voltage: ± 300 V DC
Rated input voltage: ± 300 V DC
Resistance measurement ranges: 3 mΩ to 3000 Ω
Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt.
Testing source frequency: 1 kHz ± 0.2 Hz
Testing current: 100 mA to 10 μA
Open-circuit Voltage: 25 V peak to 4 V peak
Voltage measurement ranges: 6 VDC to 300 VDC
Display: 31000 full digits (resistance), 600000 full digits (voltage)
Sampling rate: Four steps, 4 ms to 150 ms
Comparator functions: Judgment result, Setting, Logical ANDed result
Analog output: Measured resistance (displayed value, from 0 to 3.1 V DC)
Interfaces: External I/O, RS-232C, Printer, GP-IB
Power supply: 100 to 240 VAC, 50/60 Hz, 30 VA max.
Dimensions and mass: 215 mm W × 80 mm H × 295 mm D, 2.4 kg

Who Needs the Hioki BT3563-01?

The Hioki BT3563-01 is designed for professionals who require accurate and reliable measurements of resistance and voltage. This includes:

Electrical engineers and technicians

Quality control specialists

Research and development teams

Manufacturing and production facilities

And more

Hioki BT3563-01 Applications

The Hioki BT3563-01 has a wide range of applications, including:

Battery testing
Electrical safety testing
Quality control
Research and development
Manufacturing and production

Why Buy Hioki BT3563-01 from mme-ae?

Browse our HiTester instruments. Read more in our electrical safety standards guide.

At mme-ae, we offer the Hioki BT3563-01 at competitive prices, along with exceptional customer service and support. Our team of experts is always available to assist with any questions or concerns you may have.

Whether you’re looking for a reliable Battery HiTESTER or a comprehensive solution for your electrical testing needs, mme-ae is the perfect partner for you.

Hioki BT3563-01 Specifications

Max. applied measurement voltage	± 300 V DC rated input voltage ± 300 V DC Max. rated voltage to earth
Resistance measurement ranges	3 mΩ (Max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3000 Ω (Max. display 3100.0 Ω, resolution 100 mΩ), 7 ranges Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) 3 mΩ range, ± 0.5% rdg. ± 10 dgt. (Add ± 30 dgt. for EX.FAST, or ± 10 dgt. for FAST, or ± 5 dgt. for MEDIUM) Testing source frequency: 1 kHz ± 0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3000 Ω range) Open-circuit Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω ranges)
Voltage measurement ranges	6 VDC (resolution 10 μV) to 300 VDC (resolution 1 mV), 3 ranges
	Accuracy: ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM)
Display	31000 full digits (resistance), 600000 full digits (voltage), LED
Sampling rate	Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.)
Measurement time	Response time + sampling rate, approx. 10 ms for measurements (Response time depends on reference values and the measurement object.)
Comparator functions	Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.)
Analog output	Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only)
Interfaces	External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only)
Power supply	100 to 240 VAC, 50/60 Hz, 30 VA max.
Dimensions and mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
Included accessories	Instruction manual ×1, Power cord ×1
