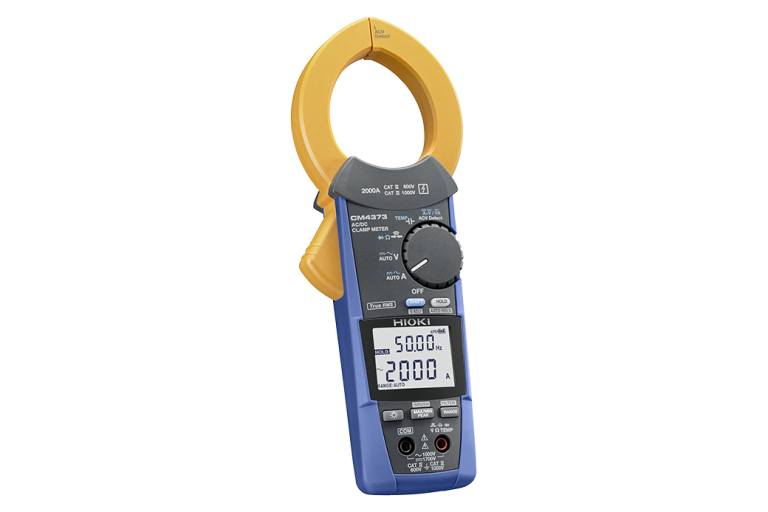

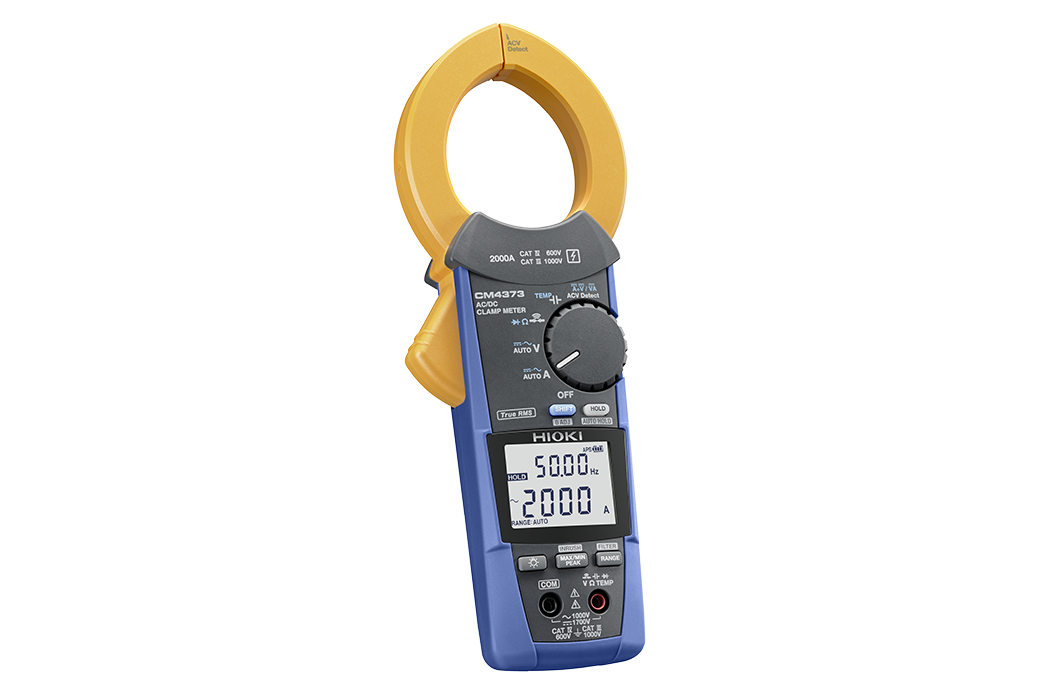

Hioki CM4373-90 AC/DC Clamp Meter

At MME, we offer the Hioki CM4373-90 AC/DC Clamp Meter, a versatile and accurate measurement tool for electricians and technicians. With its True RMS measurement capabilities, this clamp meter provides accurate readings for AC current and voltage, making it an essential tool for any electrical measurement task.

Whether you’re measuring DC current and voltage up to 2000 A and 1000 V, or resistance, capacitance, and frequency, the Hioki CM4373-90 has got you covered. Its temperature measurement capabilities, with optional temperature probe, make it an ideal tool for a wide range of applications.

Hioki CM4373-90 Key Features

The Hioki CM4373-90 AC/DC Clamp Meter features a range of key specifications, including:

• DC Current range: 600.0 A/2000 A, Basic accuracy: ±1.3% rdg. ±0.3 A (600 A range)
• AC Current range: 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy 45 – 66 Hz: ±1.3% rdg. ±0.3 A (at 600 A)
• Crest factor: 600.0 A range: 3 or less 2000 A range: 2.84 or less
• DC+AC Current range: 600.0 A/2000 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 600 A)
• DC Voltage range: 600.0 ｍV to 1000 V (When using P2000: 600.0 V to 2000 V)
• AC Voltage range: 6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 – 66 Hz: ±0.9% rdg. ±0.003 V (at 6 V)
• DC+AC Voltage range: 6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 – 66 Hz: ±1.0% rdg. ±0.013 V (at 6 V)
• Resistance range: 600.0 Ω to 6.000 MΩ, 5 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)
• Capacitance range: 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)
• Frequency range: 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)
• Temperature (K): -40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C
• Voltage detection: Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz
• Harmonic levels: [With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio

Who Needs the Hioki CM4373-90?

The Hioki CM4373-90 AC/DC Clamp Meter is designed for electricians and technicians who require a versatile and accurate measurement tool. Its range of features and specifications make it an ideal tool for a wide range of applications, including:

Electrical measurement and testing

Industrial automation and control

Power distribution and transmission

Research and development

Other applications where accurate measurement is required

Hioki CM4373-90 Applications

The Hioki CM4373-90 AC/DC Clamp Meter has a wide range of applications, including:

• Electrical measurement and testing
• Industrial automation and control
• Power distribution and transmission
• Research and development
• Other applications where accurate measurement is required

Why Buy Hioki CM4373-90 from mme-ae?

Browse our clamp meters. Read more in our top clamp meters for electricians.

At mme-ae, we offer the Hioki CM4373-90 AC/DC Clamp Meter as part of our range of electrical measurement tools. With its versatility and accuracy, this clamp meter is an ideal tool for electricians and technicians who require a reliable and accurate measurement tool.

Whether you’re looking for a clamp meter for electrical measurement and testing, industrial automation and control, power distribution and transmission, or research and development, the Hioki CM4373-90 is an excellent choice.

Hioki CM4373-90 Specifications
