Description

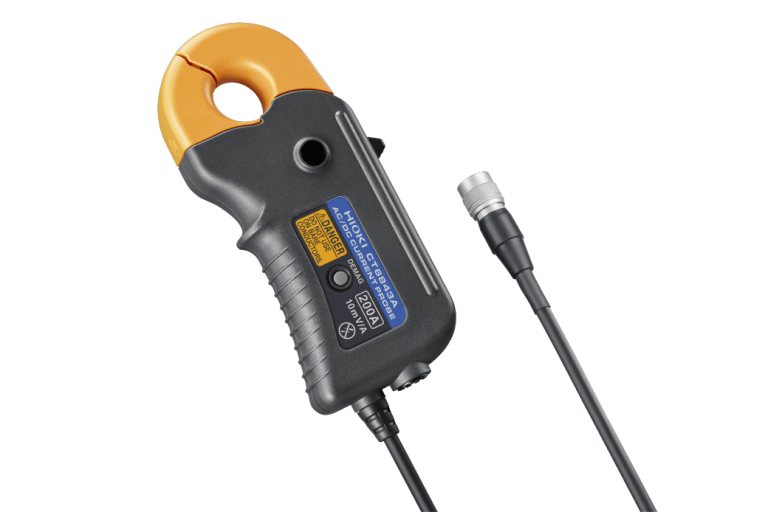

At MME, we offer the Hioki CT6843A AC/DC Current Probe, a versatile and accurate tool for measuring AC/DC currents in a wide range of applications. Whether you’re working in electrical engineering, research, or industry, this probe is designed to meet your needs.

With its high frequency bandwidth of DC to 700 kHz, the Hioki CT6843A can measure currents with ease, making it an ideal choice for applications such as power quality analysis, electrical safety testing, and more.

Hioki CT6843A Key Features

The Hioki CT6843A features a range of key specifications, including:

Rated current: 200 A AC/DC
Frequency bandwidth: DC to 700 kHz
Diameter of measurable conductors: Max. φ 20 mm (0.79 in.)
Max. allowable input: ±600 A peak
Output voltage: 10 mV/A
Accuracy: ±0.2% + 0.02% DC
Automatic phase correction

Who Needs the Hioki CT6843A?

The Hioki CT6843A is designed for a wide range of applications, including:

Electrical engineering and research

Power quality analysis and electrical safety testing

Industrial applications, such as manufacturing and quality control

And more

Hioki CT6843A Applications

The Hioki CT6843A can be used in a variety of applications, including:

Power quality analysis

Electrical safety testing

Industrial applications

Research and development

Why Buy Hioki CT6843A from MME?

Read more in our top clamp meters for electricians.

At mme-ae, we offer the Hioki CT6843A at a competitive price, with fast shipping and excellent customer service. Whether you’re a professional or a hobbyist, we have the expertise and knowledge to help you choose the right tool for your needs.

For more information on the Hioki CT6843A or to place an order, please visit our current accessories category or contact us directly.

Hioki CT6843A Specifications

Rated current	200 A AC/DC
Frequency bandwidth	DC to 700 kHz
Diameter of measurable conductors	Max. φ 20 mm (0.79 in.)
Max. allowable input	±600 A peak (Within 20 ms in an environment of 40°C/104°F or less)
Output voltage	10 mV/A
Output resistance	50 Ω ± 10 Ω
Accuracy (amplitude) ±(% of reading + % of full scale)	DC: 0.2% + 0.02% DC < f ≤ 100 Hz: 0.2% + 0.01%
Linearity	±20 ppm Typical
Common-Mode Voltage Rejection Ratio (CMRR)	DC to 1 kHz：150 dB or greater 1 kHz to 10kHz：135 dB or greater 10 kHz to 100 kHz：115 dB or greater 100 kHz to 500 kHz：95 dB or greater (effect on output voltage and common mode voltage)
Automatic phase correction	Automatically performs phase correction when connected to a compatible Hioki power analyzer.
Operating temperature, humidity	-40°C to 85°C (-40°F to 185°F), 80% RH or less
Standards	Safety IEC 61010 EMC IEC 61326
Withstand voltage	AC 4260 V
Power supply	Power supplied from compatible Hioki power analyzers, sensor units, or current units.
Max. rated power	6 VA or less (When measuring 200 A/55 Hz with ±12 V power supply)
Dimensions and mass	Approx. 153 mm W × 67 mm H × 25 mm D (approx. 6.02 in. W × 2.64 in. H × 0.98 in. D), 380 g (13.4 oz.)
Cable length	Approx. 3 m (9.84 ft.)
Included accessories	Markup bands ×6, Carrying Case, Instruction Manual
