Description

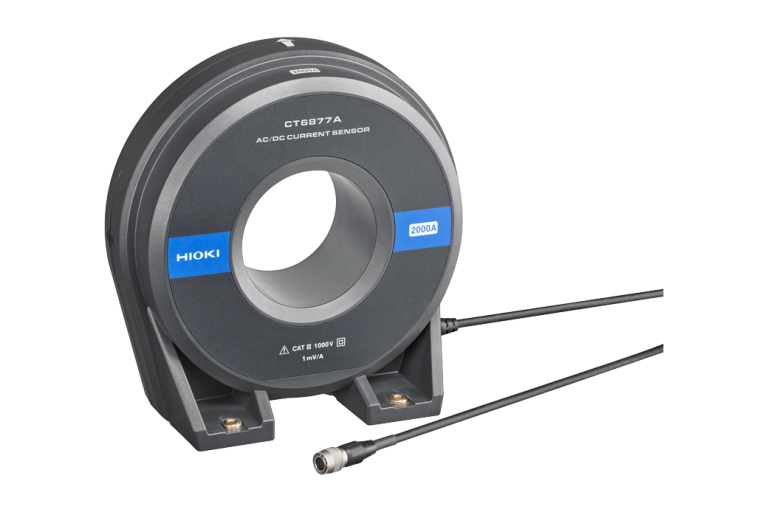

At Mohammad Mahdi Electronics, we offer the Hioki CT6877A AC/DC Current Sensor, designed for high accuracy measurement of AC/DC current up to 2000 A. This sensor is ideal for a variety of applications, including electrical testing and measurement.

With its wide frequency range from DC to 1 MHz, the Hioki CT6877A is suitable for use in a range of environments. Its compact design and 3 m (9.84 ft) cable length make it easy to use and transport.

Hioki CT6877A Key Features

The Hioki CT6877A features a range of key specifications, including:

Rated current: 2000 A AC/DC
Max. allowable input: Within the derating range, (within the specified range up to ±3200 Apeak)
Frequency characteristics: Amplitude: DC to 1 MHz, Phase: DC to 700 kHz
Basic accuracy: (DC, 45 Hz ≤ f ≤ 66 Hz) Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.08°
Output voltage rate: 1 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit)
Max. rated voltage to earth: 1000 V AC/DC (50/60 Hz, CAT III)
Core diameter: φ 80 mm (3.15 in)
Operating temperature, humidity: -40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
Power supply: Power supplied via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Max. rated power: 9.5 VA max. (at 2000 A/55 Hz, ±12 V power requirement)

Who Needs the Hioki CT6877A?

The Hioki CT6877A is ideal for a variety of applications, including:

Electrical testing and measurement

Power system analysis

Research and development

Manufacturing and quality control

Hioki CT6877A Applications

The Hioki CT6877A is suitable for use in a range of environments, including:

Industrial settings
Research and development laboratories
Manufacturing facilities
Power plants

Why Buy Hioki CT6877A from mme-ae?

Browse our current accessories. Read more in our top clamp meters for electricians.

At mme-ae, we offer the Hioki CT6877A AC/DC Current Sensor at a competitive price, with fast shipping and excellent customer service. Whether you’re looking for a high accuracy current sensor for electrical testing and measurement or a reliable power supply for your research and development projects, the Hioki CT6877A is an excellent choice.

For more information on the Hioki CT6877A or to place an order, please contact us at mme-ae.

Hioki CT6877A Specifications

Rated current	2000 A AC/DC
Max. allowable input	Within the derating range, (within the specified range up to ±3200 Apeak )
Frequency characteristics	Amplitude: DC to 1 MHz, Phase: DC to 700 kHz
Basic accuracy	(DC, 45 Hz ≤ f ≤ 66 Hz) Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.08°
Output voltage rate	1 mV / A rated (This device outputs AC+DC voltage via the Sensor Unit)
Max. rated voltage to earth	1000 V AC/DC (50/60 Hz, CAT III )
Core diameter	φ 80 mm (3.15 in)
Operating temperature, humidity	-40°C to +85°C (-40°F to 185°F), 80% RH or less (with no condensation)
Power supply	Power suppled via the Power Analyzer PW8001, PW6001, PW3390, Sensor Unit CT9555, CT9556, CT9557, or 3CH CURRENT UNIT U8977
Max. rated power	9.5 VA max. (at 2000 A/55 Hz, ±12 V power requirement)
Dimensions and mass	229 mm (9.02 in)W × 232 mm (9.13 in)H × 112 mm (4.41 in)D, CT6877A: 5 kg (176.4 oz), cable length 3 m (9.84 ft), CT6877A-1: 5.3 kg (186.9 oz), cable length 10 m (32.81 ft)
Included accessories	Instruction Manual ×1, Mark bands ×6, Operating Precautions ×1
