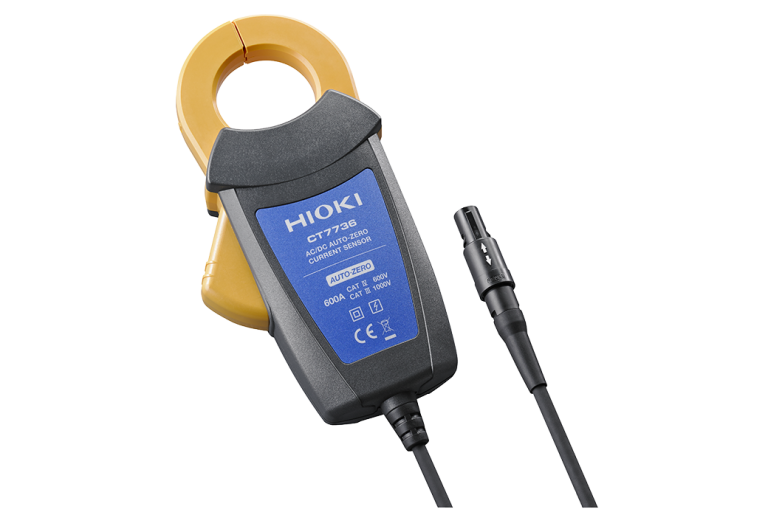

Hioki CT7736 AC/DC AUTO-ZERO CURRENT SENSOR — MME

At MME, we offer the Hioki CT7736 AC/DC AUTO-ZERO CURRENT SENSOR for precise current measurement in various applications. This sensor is designed to provide accurate readings in both AC and DC environments, making it an ideal choice for electricians and engineers.

With its high-rated measurement current of 600 A AC/DC, the Hioki CT7736 can handle demanding tasks with ease. Its max. measurement current of 600 A (requires derating at frequency) and max. allowable peak input of 900 A peak ensure reliable performance in a wide range of applications.

Hioki CT7736 Key Features

The Hioki CT7736 features a bandwidth of DC to 5 kHz (-3dB), making it suitable for a variety of applications, including power quality analysis and electrical safety testing. Its typical phase accuracy of ±1.8 deg. (DC < f ≤ 66 Hz) ensures accurate measurements, while its output rate of 1 mV/A provides a clear and precise signal.

• Rated measurement current: 600 A AC/DC
• Max. measurement current: 600 A (requires derating at frequency)
• Max. allowable peak input: 900 A peak
• Bandwidth: DC to 5 kHz (-3dB)
• Typical phase accuracy: ±1.8 deg. (DC < f ≤ 66 Hz)
• Output rate: 1 mV/A
• Max. rated voltage to earth: AC/DC 600 V (CAT IV) AC/DC 1000 V (CAT III)
• Core diameter: φ 33 mm (1.30 in) or less
• Output connectors: HIOKI PL 14
• Operating temperature range: -25°C to 65°C (-13°F to 149°F)
• Dimensions and mass: 64 mm (2.52 in)W × 160 mm (6.30 in)H × 34 mm (1.34 in)D, 320 g (11.3 oz), Cable length 2.5 m (8.20 ft)

Who Needs the Hioki CT7736?

The Hioki CT7736 is designed for electricians, engineers, and technicians who require accurate current measurement in various applications. Its high-rated measurement current and max. measurement current make it suitable for demanding tasks, while its typical phase accuracy and output rate ensure reliable performance.

Whether you’re working on power quality analysis, electrical safety testing, or other applications, the Hioki CT7736 is an ideal choice. Its compact design and durable construction make it easy to use and maintain, ensuring reliable performance in the field.

Hioki CT7736 Applications

The Hioki CT7736 is suitable for a variety of applications, including:

• Power quality analysis
• Electrical safety testing
• Current measurement in industrial applications
• Research and development
• Other applications requiring accurate current measurement

Why Buy Hioki CT7736 from MME?

Browse our current accessories. Read more in our top clamp meters for electricians.

At mme-ae, we offer the Hioki CT7736 AC/DC AUTO-ZERO CURRENT SENSOR for precise current measurement in various applications. Our experienced team is dedicated to providing exceptional customer service and support, ensuring that you receive the best possible solution for your needs.

With our Hioki CT7736, you can trust that you’re getting a high-quality product that meets your requirements. Our Mohammad Mahdi Electronics team is committed to providing the best possible experience, from product selection to installation and maintenance.

Hioki CT7736 Specifications
