Description

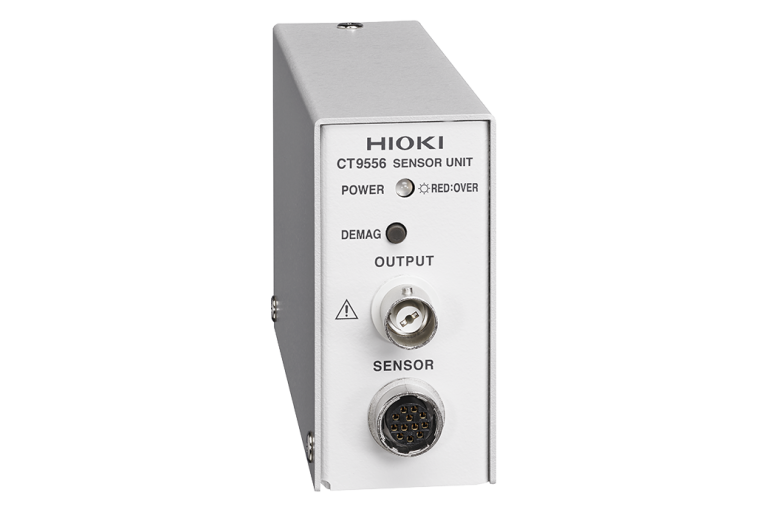

The Hioki CT9556 Sensor Unit is a versatile and reliable solution for electrical measurement applications. At mme-ae, we offer a wide range of electrical measurement solutions, including current accessories and clamp meters from top brands like Hioki.

With its compact design and high accuracy, the Hioki CT9556 is ideal for a variety of applications, including electrical testing and measurement. Its connectable current sensors allow for easy integration with other Hioki instruments, and its waveform output and RMS output can be used simultaneously for precise measurement.

Hioki CT9556 Key Features

The Hioki CT9556 Sensor Unit features a range of key specifications, including:

Connectable current sensors with a Hioki ME15W (male) output connector
Waveform output and RMS output can be used simultaneously
Operating temperature range of -10°C to 50°C (14°F to 122°F)
Power supply options: AC Adapter Z1008 or external power supply
Dimensions: 33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D
Weight: 200 g (7.1 oz)
Accessories included: AC Adapter Z1008, Power cord, Instruction manual

Who Needs the Hioki CT9556?

The Hioki CT9556 Sensor Unit is designed for a variety of applications, including electrical testing and measurement. It is ideal for use in industrial settings, research and development, and educational institutions. Its high accuracy and reliability make it a valuable tool for professionals and students alike.

At Mohammad Mahdi Electronics, we understand the importance of accurate and reliable measurement solutions. That’s why we offer a wide range of electrical measurement instruments, including the Hioki CT9556 Sensor Unit.

Hioki CT9556 Applications

The Hioki CT9556 Sensor Unit has a range of applications, including:

Electrical testing and measurement
Research and development
Industrial settings
Educational institutions

Why Buy Hioki CT9556 from MME?

At MME, we offer a wide range of electrical measurement solutions, including the Hioki CT9556 Sensor Unit. Our experienced team is dedicated to providing the best possible service and support to our customers. We offer current accessories and clamp meters from top brands like Hioki.

Hioki CT9556 Specifications

Connectable current sensors	Current sensors with a Hioki ME15W (male) output connector (CT686x-05, 9709-05, CT684x-05, etc.) *The separately available Conversion Cable CT9900 is required in order to use a current sensor equipped with a PL23 (10-pin) terminal
Output Terminal	BNC Terminal

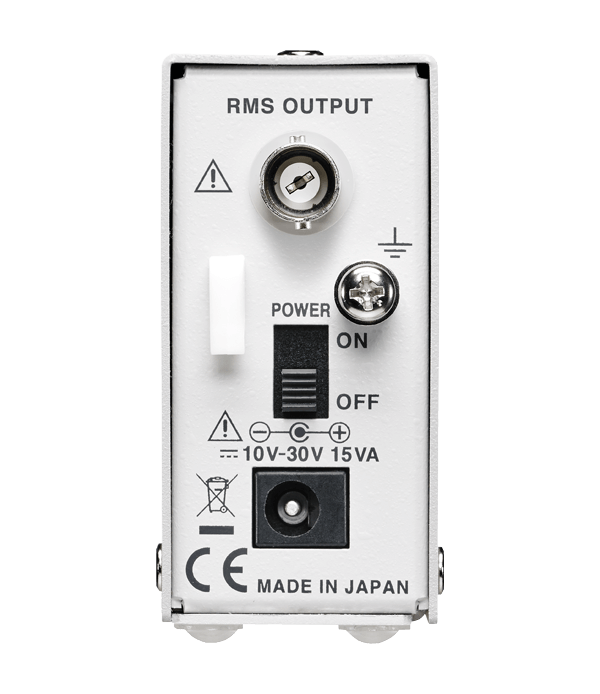

Output voltage	Waveform output: 2 V f.s. RMS output: 2 V DC f.s. Waveform output and RMS output can be used simultaneously
Output resistance	50 Ω
Operating temperature range	-10°C to 50°C (14°F to 122°F)
Power supply	AC Adapter Z1008 (100 to 240 V AC, 50/60 Hz, maximum rated power when used with sensors: 45 VA) External power supply (10 to 30 V DC; maximum rated power: 15 VA)
Dimensions and mass	33 mm (1.30 in)W × 67 mm (2.64 in)H × 132 mm (5.20 in)D (excluding protruding parts), 200 g (7.1 oz)
Included accessories	AC Adapter Z1008 ×1, Power cord ×1, Instruction manual ×1
