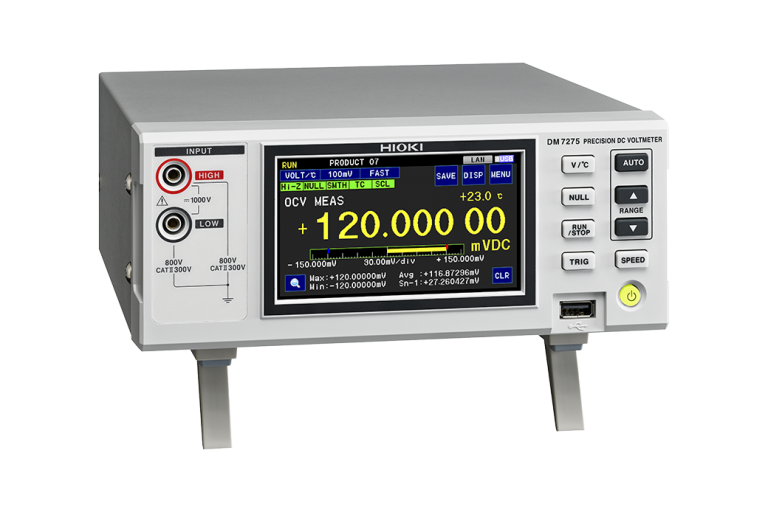

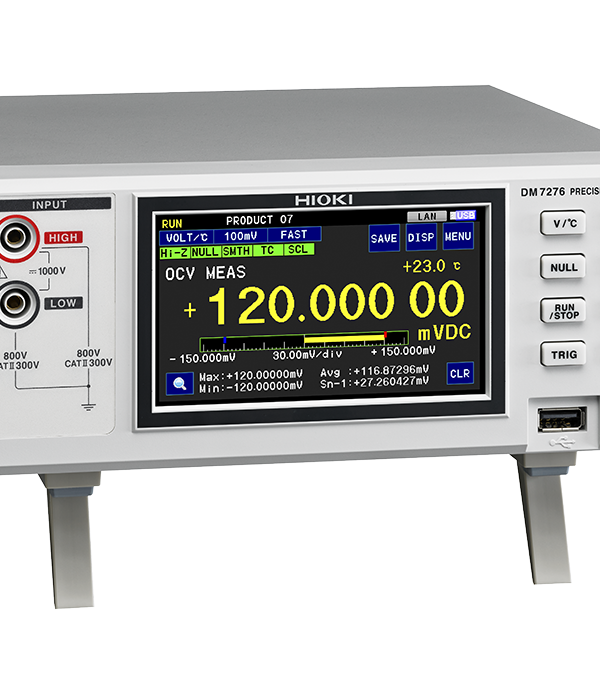

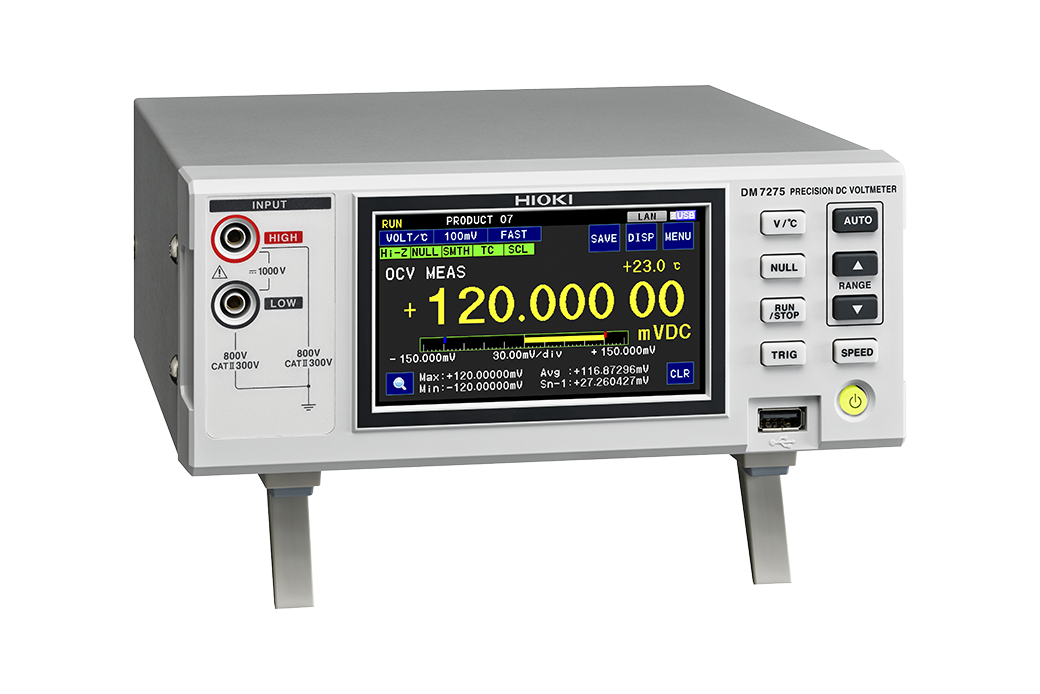

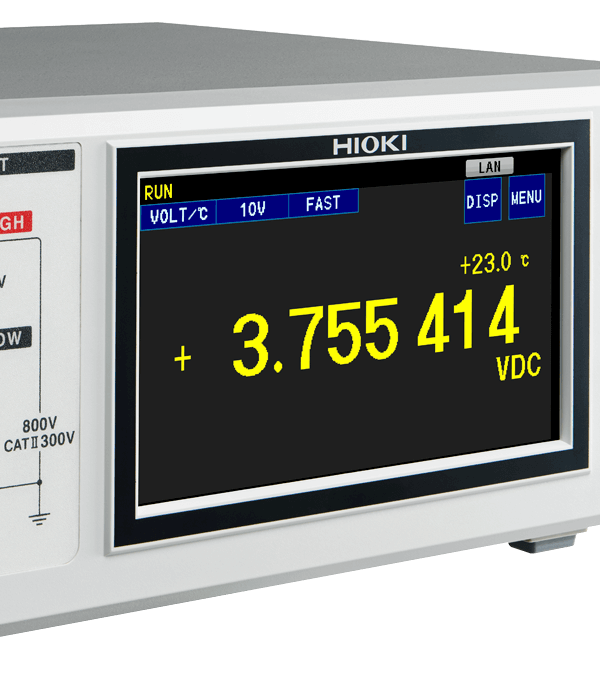

Hioki DM7275-03 Precision DC Voltmeter — Electrical Instruments

At MME, we offer the Hioki DM7275-03 Precision DC Voltmeter, a high-precision instrument designed for electrical measurements. This DC voltmeter features 5 ranges, including 100 mV to 1000 V, with a basic accuracy of ±0.0020% rdg. ±12 μV on the 10 V range.

With a temperature range of -10.0°C to 60.0°C (14.0°F to 140°F), this instrument is suitable for a variety of applications. The integration time unit is PLC/ms, with 5 settings available. The Hioki DM7275-03 also features measurement support functions such as smoothing, null, and temperature compensation, as well as management support functions including comparator, BIN, and absolute value judgment.

Hioki DM7275-03 Key Features

The Hioki DM7275-03 Precision DC Voltmeter features a range of key specifications, including:

• DC Voltage: 100 mV ( ±120.000 00 mV) to 1000 V ( ±1000.000 0 V ), 5 ranges
• Basic accuracy: 10 V range: ±0.0020% rdg. ±12 μV
• Temperature: -10.0°C to 60.0°C (14.0°F to 140°F)
• Integration time: Integration time unit: PLC/ms (PLC setting: 0.02/ 0.2/ 1/ 10/ 100, ms setting: 1 ms to 9999 ms)
• Measurement support functions: Smoothing function, null, temperature compensation, scaling, over-range display, self-calibration, auto-hold, contact check
• Management support functions: Comparator, BIN, absolute value judgment, label display, statistics, measurement information, communication monitor, EXT. I/O TEST
• Contact check: Check signal: 10 mV rms, threshold value: 0.5 nF to 50 nF (Cannot use in the 100 V/1000 V ranges), Contact check integration time: 1 ms to 100 ms
• Interfaces: Standard: LAN (100BASE-TX), EXT. I/O, USB flash drive / USB device (USB2.0 Full-Speed) Optional: GP-IB (-02 type only) / RS-232C (-03 type only) / PRINTER (-03 type only)
• Power supply: 100 to 240 V AC, 50/60 Hz, 30 VA
• Dimensions and mass: 215 mm (8.46 in) W × 88 mm (3.46 in) H × 232 mm (9.13 in) D (-01 type): 2.3 kg (81.1 oz), (-02/-03 type): 2.4 kg (84.7 oz)
• Included accessories: Instruction manual ×1, power cord ×1

Who Needs the Hioki DM7275-03?

The Hioki DM7275-03 Precision DC Voltmeter is designed for a variety of applications, including electrical measurements, testing, and calibration. This instrument is suitable for use in a range of industries, including manufacturing, research and development, and quality control.

At mme-ae, we understand the importance of accurate and reliable measurements. That’s why we offer the Hioki DM7275-03 Precision DC Voltmeter, a high-precision instrument designed to meet the needs of professionals in a range of industries.

Hioki DM7275-03 Applications

The Hioki DM7275-03 Precision DC Voltmeter has a range of applications, including:

• Electrical measurements
• Testing and calibration
• Research and development
• Quality control

Why Buy Hioki DM7275-03 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki DM7275-03 Precision DC Voltmeter, a high-precision instrument designed for electrical measurements. This instrument features a range of key specifications, including 5 ranges, basic accuracy of ±0.0020% rdg. ±12 μV on the 10 V range, and a temperature range of -10.0°C to 60.0°C (14.0°F to 140°F).

With a range of measurement support functions, including smoothing, null, and temperature compensation, this instrument is suitable for a variety of applications. The Hioki DM7275-03 also features management support functions, including comparator, BIN, and absolute value judgment.

Hioki DM7275-03 Specifications

Buy Hioki DM7275-03 Precision DC Voltmeter from MME

At MME, we offer the Hioki DM7275-03 Precision DC Voltmeter, a high-precision instrument designed for electrical measurements. This instrument features a range of key specifications, including 5 ranges, basic accuracy of ±0.0020% rdg. ±12 μV on the 10 V range, and a temperature range of -10.0°C to 60.0°C (14.0°F to 140°F).

With a range of measurement support functions, including smoothing, null, and temperature compensation, this instrument is suitable for a variety of applications. The Hioki DM7275-03 also features management support functions, including comparator, BIN, and absolute value judgment.

For more information, please visit our electrical instruments category or read our electrical safety standards guide. You can also explore our range of Hioki instruments or contact us for more information.
