Description

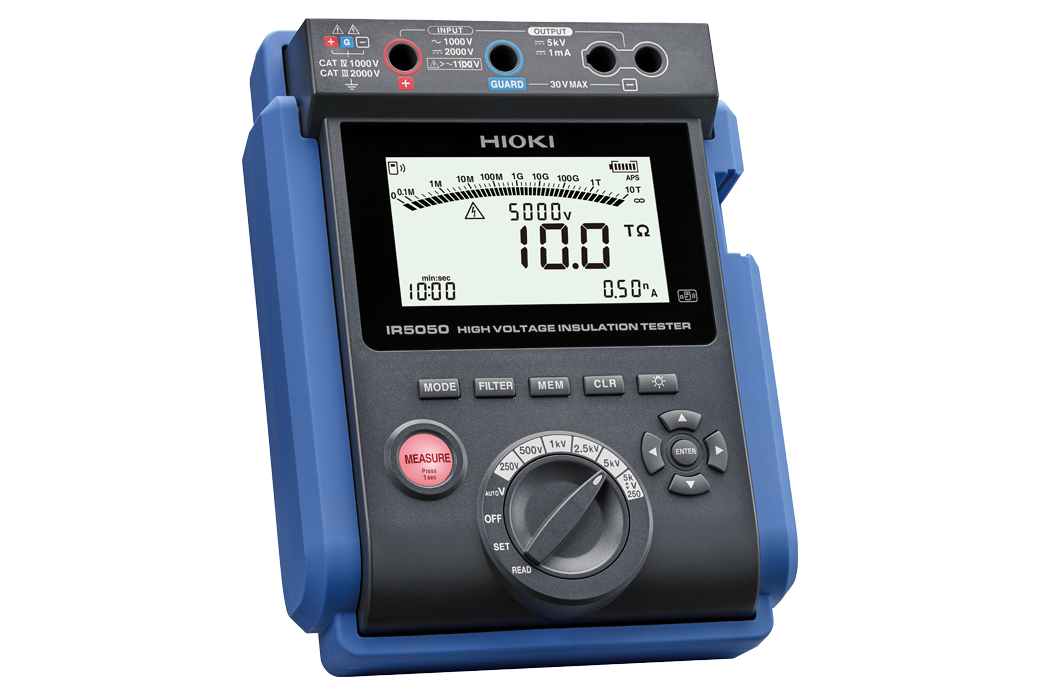

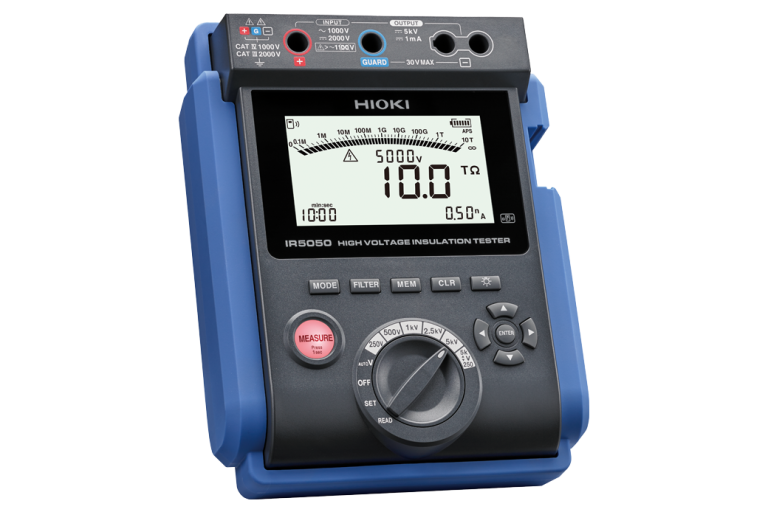

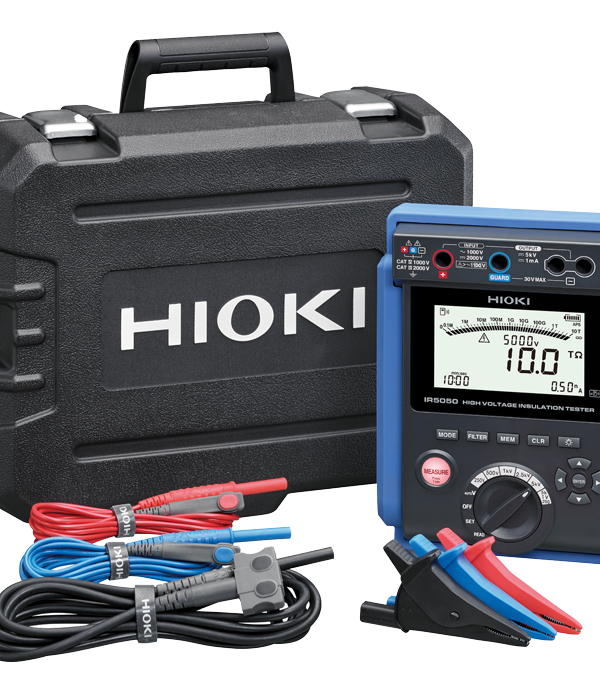

The Hioki IR5050 is a high voltage insulation tester designed to ensure the safety and reliability of electrical equipment. At Mohammad Mahdi Electronics, we understand the importance of accurate insulation testing in preventing electrical shock and fires.

With its wide test voltage range of DC 250 V to 5.20 kV DC, the Hioki IR5050 is suitable for a variety of applications, including electrical panel testing, motor testing, and cable testing. The user-set test voltage feature allows for precise control over the testing process, while the test voltage preset of 250 V ensures consistent results.

Hioki IR5050 Key Features

The Hioki IR5050 insulation tester features a range of key benefits, including:

Test voltage range: DC 250 V to 5.20 kV DC
User-set test voltage: 250 V to 1 kV: in 10 V increments; 1 kV to 5 kV: in 25 V increments
Test voltage preset: 250 V
Guaranteed accuracy range (1): 0.00 MΩ〜2.50 GΩ ±5% rdg ±5 dgt
Guaranteed accuracy range (2): 2.51 GΩ〜500 GΩ ±20% rdg
Rated current: 1 mA to 1.2 mA
Short-circuit current: 2 mA or less
Possible number of measurements: 200 times or more on one set of fully-charged batteries

Who Needs the Hioki IR5050?

The Hioki IR5050 insulation tester is designed for use in a variety of industries, including electrical, manufacturing, and construction. It is particularly suitable for:

Electrical panel testing and maintenance

Motor testing and repair

Cable testing and installation

Industrial equipment testing and maintenance

Hioki IR5050 Applications

The Hioki IR5050 insulation tester can be used in a variety of applications, including:

Electrical panel testing

Motor testing

Cable testing

Industrial equipment testing

Why Buy Hioki IR5050 from mme-ae?

Browse our insulation testers. Read more in our electrical safety standards guide.

At MME, we offer a wide range of Hioki insulation testers, including the Hioki IR5050. Our experienced team can provide expert advice and support to ensure that you find the right product for your needs.

We also offer a range of benefits, including:

Competitive pricing

Fast shipping

Expert technical support

Return and exchange policy

Hioki IR5050 Specifications

Test voltage range	DC 250 V to 5.20 kV DC
User-set test voltage	250 V to 1 kV: in 10 V increments; 1 kV to 5 kV: in 25 V increments
Test voltage preset	250 V	500 V	1000 V	2500 V	5000 V
Guaranteed accuracy range (1)	0.00 MΩ〜2.50 GΩ ±5% rdg ±5 dgt	0.00 MΩ〜5.00 GΩ ±5% rdg ±5 dgt	0.00 MΩ〜10.0 GΩ ±5% rdg ±5 dgt	0.00 MΩ〜25.0 GΩ ±5% rdg ±5 dgt	0.00 MΩ〜50.0 GΩ ±5% rdg ±5 dgt
Guaranteed accuracy range (2)	2.51 GΩ〜500 GΩ ±20% rdg	5.01 GΩ〜1.00 TΩ ±20% rdg	10.1 GΩ〜2.00 TΩ ±20% rdg	25.1 GΩ〜5.00 TΩ ±20% rdg	50.1 GΩ〜10.00 TΩ ±20% rdg
Rated current	1 mA to 1.2 mA
Short-circuit current	2 mA or less
Possible number of measurements	200 times or more on one set of fully-charged batteries
