Description

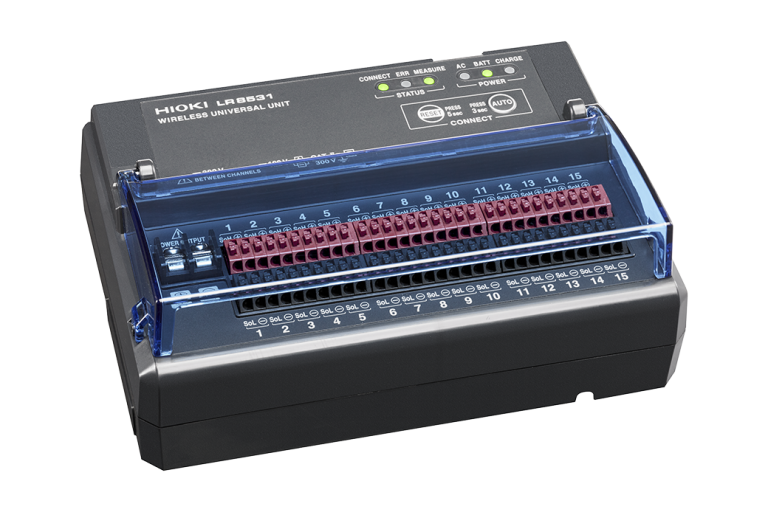

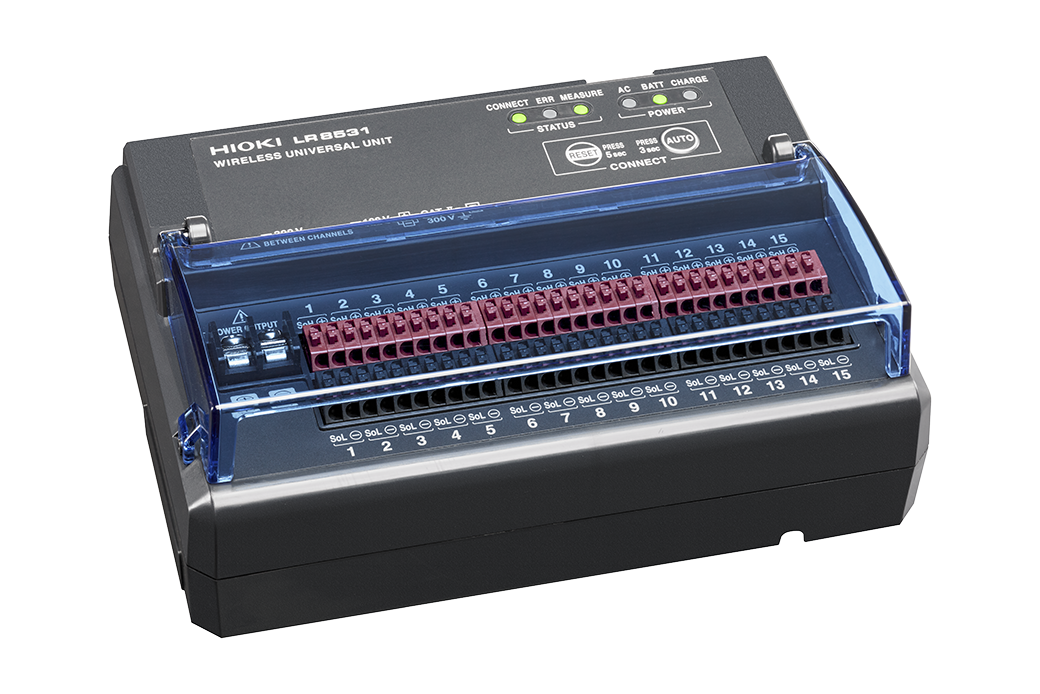

At MME, we offer the Hioki LR8531 Wireless Universal Unit, a cutting-edge device designed for efficient and reliable data acquisition. This unit connects wirelessly via the included Wireless LAN Adapter Z3230, allowing for seamless communication with the Memory HiLogger LR8450-01 (Wireless LAN model) instrument.

With a communication range of 30 m (line of sight) and a 4 M word communications buffer memory for data saving, this unit ensures uninterrupted data transfer even in challenging environments. The operating temperature range of -20°C to 55°C, 80% RH, makes it suitable for use in various applications.

Hioki LR8531 Key Features

The Hioki LR8531 Wireless Universal Unit boasts an impressive array of features, including:

Wireless connectivity via Wireless LAN Adapter Z3230 (included)
Memory HiLogger LR8450-01 (Wireless LAN model) connectable instrument
30 m communication range (line of sight)
4 M word communications buffer memory for data saving
Operating temperature range -20°C to 55°C, 80% RH
Number of input channels 15 ch
Input terminals push-button type terminal block (4 terminals per channel)
Resolution 10 mV f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)
Temperature measurement range K: -100.00℃ to 1350.0℃, J: -100.00℃ to 1200.0℃, E: -100.00℃ to 1000.0℃, T: -100.00℃ to 400.0℃, N: -100.00℃ to 1300.0℃, R: 0.00℃ to 1700.0℃, S: 0.00℃ to 1700.0℃, B: 400.0℃ to 1800.0℃, C: 0.00℃ to 2000.0℃
Resistance measurement range 10 Ω (0.5 mΩ), 20 Ω (1 mΩ), 100 Ω (5 mΩ), 200 Ω (10 mΩ)

Who Needs the Hioki LR8531?

The Hioki LR8531 Wireless Universal Unit is designed for professionals and researchers who require a reliable and efficient data acquisition system. This unit is ideal for use in various applications, including:

Electrical and electronics testing and measurement

Research and development

Quality control and assurance

Manufacturing and production

And more

Hioki LR8531 Applications

The Hioki LR8531 Wireless Universal Unit has a wide range of applications, including:

Electrical and electronics testing and measurement

Research and development

Quality control and assurance

Manufacturing and production

And more

Why Buy Hioki LR8531 from mme-ae?

Browse our electrical instruments. Read more in our electrical safety standards guide.

At mme-ae, we offer the Hioki LR8531 Wireless Universal Unit at competitive prices, along with excellent customer service and support. Our team of experts is always available to assist you with any questions or concerns you may have.

Whether you’re a professional or researcher, we invite you to explore our range of Hioki products, including the LR8531 Wireless Universal Unit. Contact us today to learn more about how we can help you achieve your goals.

Hioki LR8531 Specifications

Connectable instrument	Memory HiLogger LR8450-01 (Wireless LAN model)
Control communications method	Connect wirelessly via Wireless LAN Adapter Z3230 (included) Wireless LAN (IEEE 802.11b/g/n) Communication range: 30 m (line of sight) Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Available number of channels: 1 to 11
Communications buffer memory	4 M　word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored.
Operating temperature and humidity	-20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C)
Storage temperature and humidity	-20°C to 60°C, 80% RH (no condensation)
Vibration resistance	JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
LED display	Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
Automatic connection function	Available
Included accessories	Wireless LAN Adapter Z3230 × 1, Instruction manual × 1, AC Adapter Z1008 × 1, mounting plate × 1, M3×4 screw × 2 (for use with mounting plate)
Number of input channels	15 ch (Able to set voltage, temperature using the thermocouple or RTD, humidity, and resistance for each channel)
Input terminals	Push-button type terminal block (4 terminals per channel)
Measurement target	Voltage, temperature using the thermocouple or RTD, humidity, resistance
Input type	Scanning by semiconductor relays All channels isolated (Not isolated when measuring with RTD, resistance, and humidity)
Voltage measurement (resolution)	10 ｍV f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)
Temperature measurement (thermocouple)	K: -100.00℃ to 1350.0℃ J: -100.00℃ to 1200.0℃ E: -100.00℃ to 1000.0℃ T: -100.00℃ to 400.0℃ N: -100.00℃ to 1300.0℃ R: 0.00℃ to 1700.0℃ S: 0.00℃ to 1700.0℃ B: 400.0℃ to 1800.0℃ C: 0.00℃ to 2000.0℃
Temperature measurement (Pt)	Pt100：-100.00℃ to 800.0℃ JPt100：-100.00℃ to 500.0℃ Pt1000：-100.00℃ to 800.0℃
Resistance measurement (resolution)	10 Ω (0.5 mΩ), 20 Ω (1 mΩ), 100 Ω (5 mΩ), 200 Ω (10 mΩ)
