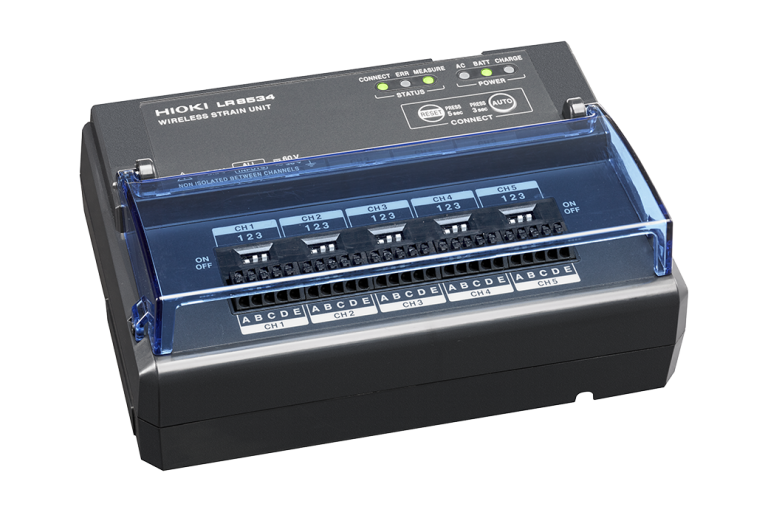

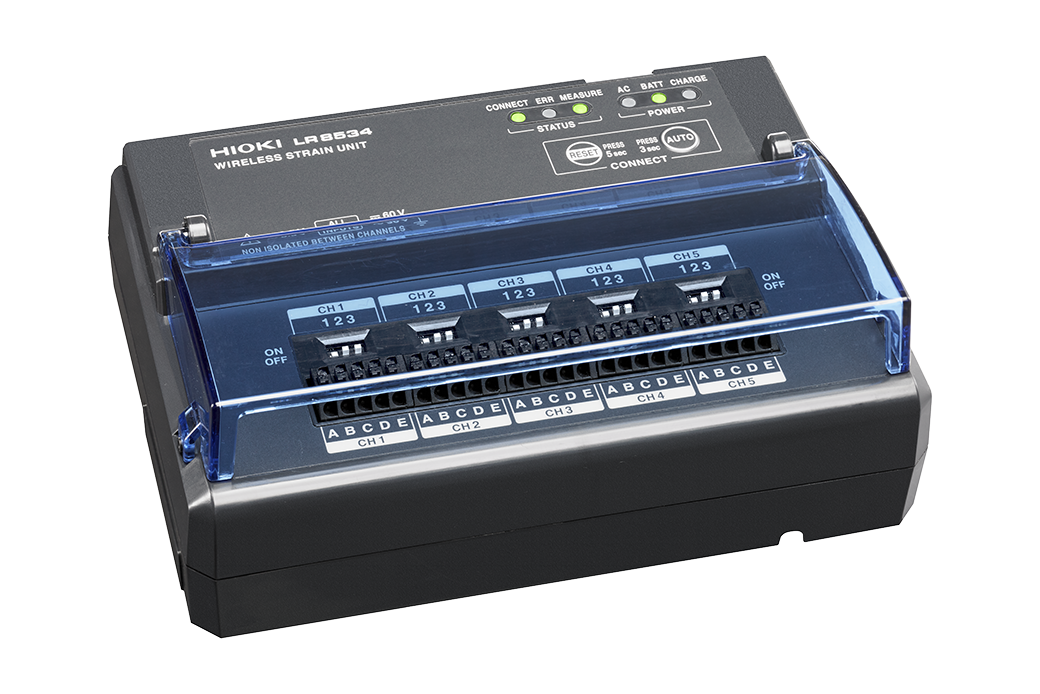

Hioki LR8534 Wireless Strain Unit - Wireless Strain Meter

The Hioki LR8534 Wireless Strain Unit represents a significant advancement in portable measurement technology, offering engineers and technicians the freedom to conduct strain and voltage measurements without the constraints of traditional cabling. This innovative wireless unit connects seamlessly to Hioki Memory HiLogger LR8450-01 systems via the included Wireless LAN Adapter Z3230, providing measurement flexibility across industrial environments, laboratories, and field applications where cable management presents challenges.

With its robust wireless connectivity operating on IEEE 802.11b/g/n standards, the LR8534 achieves reliable communication up to 30 meters in line-of-sight conditions, making it ideal for monitoring structures, machinery, and test specimens where wired connections would be impractical or obstructive. The unit features five dedicated input channels, each capable of measuring voltage or strain with selectable configurations including 1-gage, 2-gage adjacent, 2-gage non-adjacent, and 4-gage methods for comprehensive strain analysis.

Hioki LR8534 Key Features

The LR8534 combines advanced wireless technology with precise measurement capabilities in a compact design. Each of the five channels features push-button terminal blocks with terminal block covers, and DIP switches must be configured according to the specific measurement target whether voltage or strain gage transducer. The unit supports balanced differential input with simultaneous sampling of all channels, ensuring accurate data capture across all five channels simultaneously.

• Connectable Instrument: Memory HiLogger LR8450-01 (Wireless LAN model)
• Control Communications Method: Connect wirelessly via Wireless LAN Adapter Z3230 (included) Wireless LAN (IEEE 802.11b/g/n)
• Communication Range: 30 m (line of sight)
• Encryption Function: WPA-PSK/WPA2-PSK, TKIP/AES
• Available Number of Channels: 1 to 11
• Communications Buffer Memory: 4 M word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored.
• Operating Temperature and Humidity: -20°C to 55°C, 80% RH (no condensation)
• Vibration Resistance: JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
• LED Display: Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status
• Automatic Connection Function: Available

Who Needs the Hioki LR8534?

Engineering professionals working in structural health monitoring will find the LR8534 indispensable for assessing bridge integrity, building stability, and infrastructure safety without the limitations of fixed cabling. The wireless freedom allows for temporary installation on structures where permanent wiring would be disruptive or cost-prohibitive, making it perfect for short-term monitoring campaigns and prototype testing scenarios.

Research and development teams in laboratories benefit from the LR8534’s precise strain measurement capabilities ranging from 1,000 με to 200,000 με resolution, enabling detailed analysis of material behavior under stress. The unit’s ability to configure multiple gage methods on a single device reduces equipment costs and simplifies setup for complex testing protocols involving different strain measurement approaches.

Maintenance technicians conducting preventive maintenance on rotating equipment, motors, and mechanical systems can utilize the LR8534 to detect early signs of wear and misalignment. The wireless capability means measurements can be taken quickly without shutting down operations for cable installation, while the robust data buffer ensures no measurement data is lost even if temporary communication interruptions occur.

Hioki LR8534 Applications

The versatility of the Hioki LR8534 Wireless Strain Unit makes it suitable across numerous industries and measurement scenarios. In civil engineering, it enables monitoring of bridge deformation, building settlement, and dam movement where wireless deployment reduces installation time and disruption to existing structures.

• Structural health monitoring of bridges and buildings
• Seismic activity assessment
• Foundation settlement monitoring
• Wind turbine blade stress analysis
• Mechanical component vibration analysis
• Material testing and research
• Quality control in manufacturing processes

Why Buy Hioki LR8534 from mme-ae?

Browse our electrical instruments. Read more in our electrical safety standards guide.

When you purchase the Hioki LR8534 Wireless Strain Unit from MME, you gain access to genuine Hioki products supported by expert technical knowledge and comprehensive customer service. As a trusted distributor of Hioki instruments in the UAE, MME ensures that every unit comes with complete manufacturer warranty coverage and authentic accessories including the Wireless LAN Adapter Z3230, AC Adapter Z1008, and all mounting hardware required for immediate deployment.

Our team at mme-ae understands the technical requirements of strain measurement applications and can provide guidance on configuration, channel setup, and integration with your existing HiLogger systems. We stock genuine Hioki products with fast delivery across the UAE, ensuring your measurement equipment arrives when you need it most.

Secure your Hioki LR8534 Wireless Strain Unit from Mohammad Mahdi Electronics today and experience the freedom of wireless precision measurement. Our competitive pricing and stock availability make us the preferred choice for Hioki instruments in the region. Contact our sales team to discuss your specific measurement requirements and discover how the LR8534 can enhance your monitoring capabilities.

Hioki LR8534 Specifications
