Description

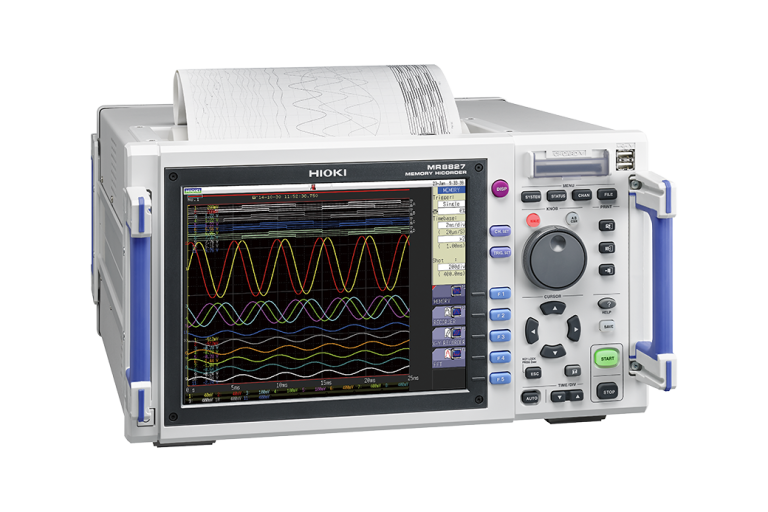

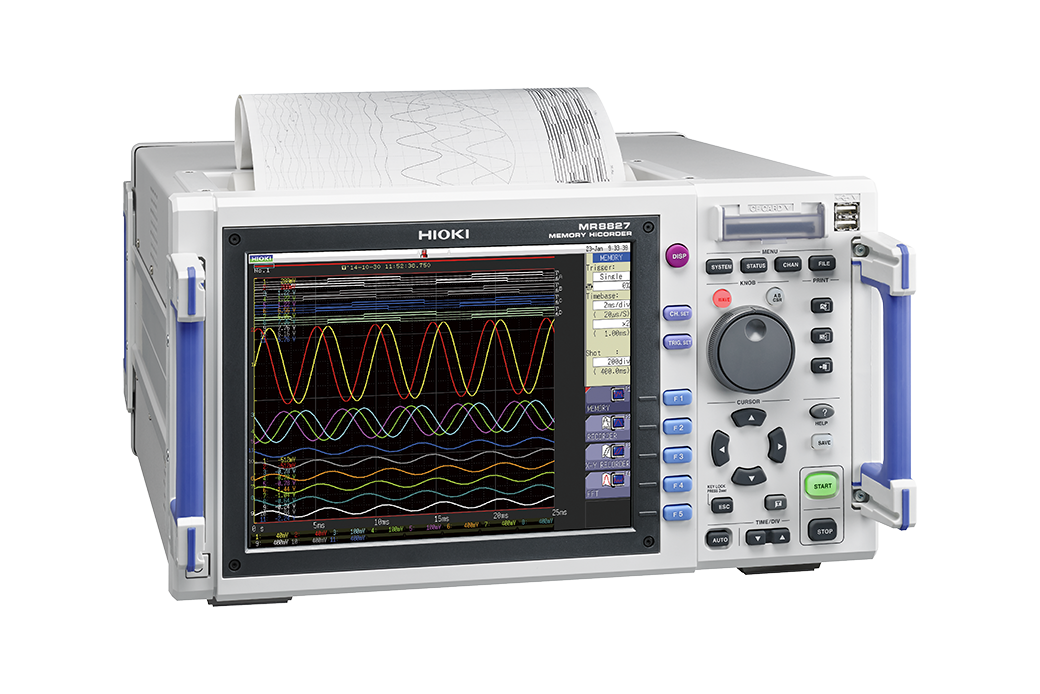

At mme-ae, we offer the Hioki MR8827 MEMORY HiCORDER, a high-resolution data recorder designed for a wide range of applications. With its ability to record up to 32 channels of analog and logic measurement, this device is ideal for use in industries such as electrical engineering, research, and development.

The Hioki MR8827 features a high-resolution data recording system with 16-bit A/D conversion, providing accurate and detailed measurements. The device also boasts a large memory capacity of 512MW, allowing for extended recording times and reduced data loss.

Hioki MR8827 Key Features

The Hioki MR8827 offers a range of key features, including:

32 channels of analog and logic measurement
High-resolution data recording with 16-bit A/D conversion
Large memory capacity with 512MW of total storage
USB, CF, and SSD data storage options
10.4-inch color LCD display for clear waveform viewing
LAN and USB connectivity for easy data transfer

Who Needs the Hioki MR8827?

The Hioki MR8827 is designed for use in a wide range of applications, including:

Electrical engineering and research

Development and testing

Industrial process monitoring and control

Academic and educational institutions

The Hioki MR8827 is ideal for anyone who requires a high-resolution data recorder with advanced features and capabilities.

Hioki MR8827 Applications

Electrical engineering and research
Development and testing
Industrial process monitoring and control
Academic and educational institutions

Why Buy Hioki MR8827 from Mohammad Mahdi Electronics?

Browse our recorders and dataloggers. Read more in our measurement guides.

At Mohammad Mahdi Electronics, we offer the Hioki MR8827 MEMORY HiCORDER at competitive prices, along with excellent customer service and support. Our team of experts is available to answer any questions you may have and provide guidance on the use and application of this device.

Whether you are a professional engineer, researcher, or student, the Hioki MR8827 is an excellent choice for anyone who requires a high-resolution data recorder with advanced features and capabilities.

Hioki MR8827 Specifications

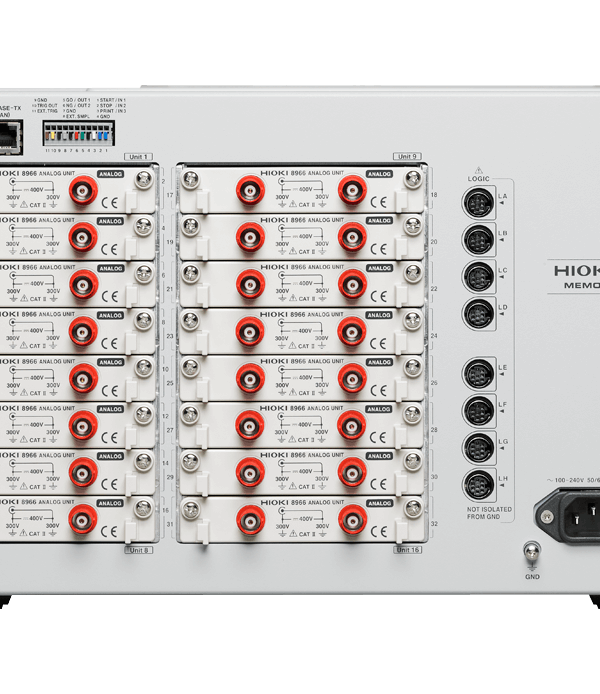

Max. Number of channels	32 ch analog + 32 ch logic, or 28 ch analog + 64 ch logic (when use with built-in logic input + plug-in logic unit 8973 × 2)
Number of slots	16 slots (Max. 16)
Number of logic channels	32 ch logic (logic probe terminal GND share a common GND with chassis) Built-in logic input not available when using DVM Unit MR8990 on slots 1, 2, 9, or 10. [Limitation on using built-in logic input] (with logic measurement ON) • Measurement resolution on slots 1, 2, 9, and slot 10 is limited up to 12 bits • Cannot use Frequency Unit 8970 on slots 1, 2, 9, or 10
Measurement ranges (20 div full-scale)	[Analog Unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D) [High Resolution Unit 8968]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/1600 of range (using 16-bit A/D)
Max. allowable input	400 V DC (using the 8966/8968)
Frequency characteristics	DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (-3 dB, using the 8968)
Time axis (Memory function)	5 µs to 5 min/div, 26 ranges, at 100 points/div resolution
Measurement functions	Memory (high-speed recording), Recorder (real-time recording), X-Y recorder, FFT
Other functions	Numerical calculation, Waveform processing, Waveform judgment (at Memory, or FFT function)
Memory capacity	128M-words/ch (using 4 Analog channels) to 16M-words/ch (using 32 Analog channels), Total capacity 512MW memory
Data storage media	USB memory stick, CF card, Built-in SSD unit (option, 128GB) Approx. 125 sec. when saving 100 MB of data Data of 100 MB in size can record 16,000 div waveforms across 32 channels.
Printing	[Built-in A4-size printer option]: 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s
Display	10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
External interfaces	LAN: 100BASE-TX, USB 2.0 series A receptacle 2 port (for USB memory, mouse) USB 2.0 series B receptacle (for communication with PC, mass storage)
Power supply	100 V to 240 V AC, 50/60 Hz (220 VA max., when using printer: 350 VA max.)
Dimensions and mass	401 mm (15.79 in)W × 233 mm (9.17 in)H × 388 mm (15.28 in)D (including protruding parts except handle), 12.6 kg (444.4 oz) (main unit only)
Included accessories	Instruction manual ×1, Power cord ×1, Input cord label ×1, Printer paper ×1 (when ordering printer unit), Roll paper attachment ×2 (when ordering printer unit)
