Description

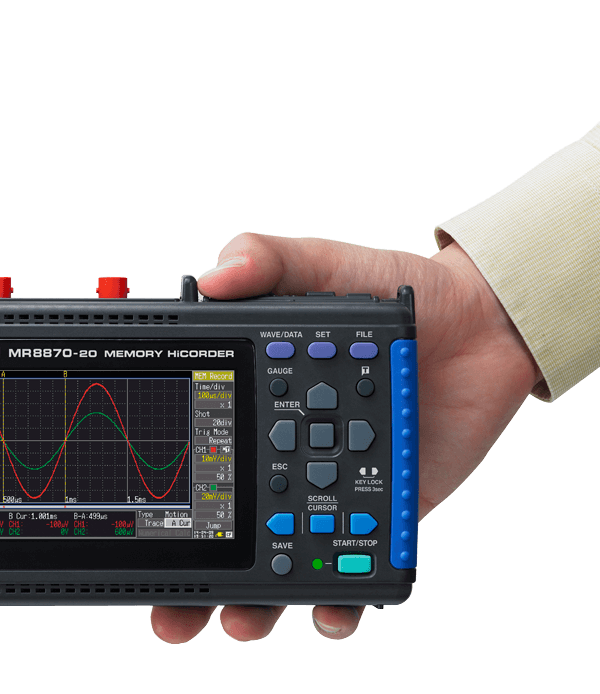

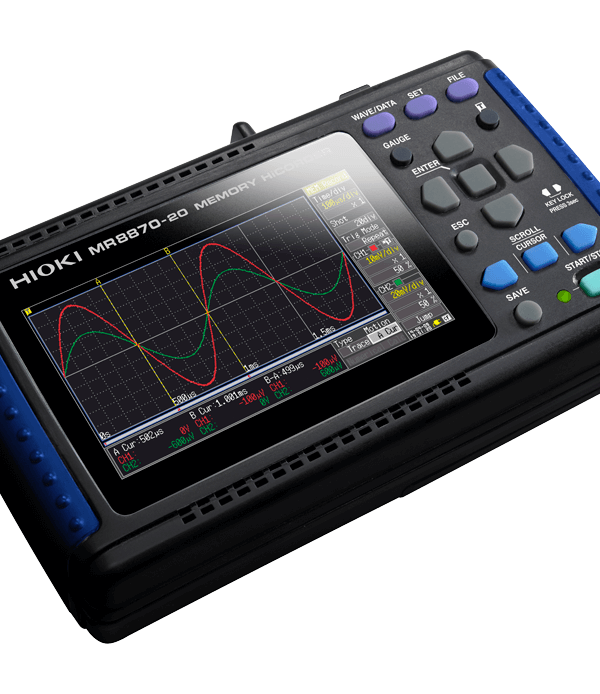

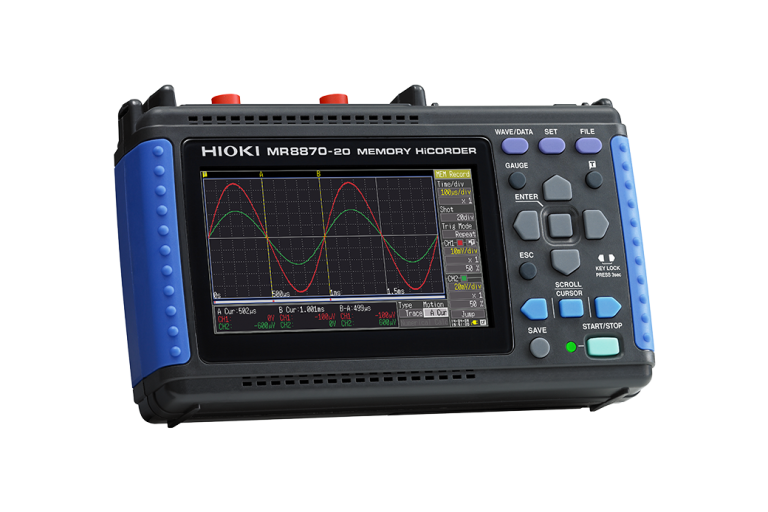

At Mohammad Mahdi Electronics, we offer the Hioki MR8870-20 MEMORY HiCORDER, a high-performance memory recorder designed for a wide range of applications. With its advanced features and user-friendly interface, this instrument is ideal for capturing and analyzing complex signals in various fields.

Whether you’re working in electrical engineering, research, or manufacturing, the Hioki MR8870-20 is a valuable tool for your team. Its high-speed recording capabilities and robust measurement functions make it an essential instrument for any laboratory or workshop.

Hioki MR8870-20 Key Features

The Hioki MR8870-20 boasts an impressive array of features, including:

2 analog channels + 4 logic channels (standard)
10 mV to 50 V/div measurement ranges
1/100 of range resolution
DC to 50 kHz frequency characteristics
100 µs to 5 min/div time axis
1 ms to 1 min recording intervals
Memory recorder and RMS recorder functions
12-bits × 2M-words/ch memory capacity

Who Needs the Hioki MR8870-20?

The Hioki MR8870-20 is designed for professionals and researchers who require a high-performance memory recorder for their work. This instrument is ideal for:

Electrical engineers and researchers who need to capture and analyze complex signals in various fields.

Manufacturing and quality control teams who require a reliable and accurate memory recorder for testing and inspection purposes.

Scientists and researchers who need to record and analyze data in various fields, including physics, chemistry, and biology.

Hioki MR8870-20 Applications

The Hioki MR8870-20 has a wide range of applications, including:

Electrical engineering and research
Manufacturing and quality control
Scientific research and experimentation
Testing and inspection

Why Buy Hioki MR8870-20 from mme-ae?

Browse our recorders and dataloggers. Read more in our measurement guides.

At mme-ae, we offer the Hioki MR8870-20 MEMORY HiCORDER at a competitive price, along with excellent customer service and support. Our team of experts is always available to answer any questions you may have and provide guidance on the use and maintenance of this instrument.

Whether you’re looking for a high-performance memory recorder for your work or research, the Hioki MR8870-20 is an excellent choice. Order now and take advantage of our competitive pricing and excellent customer service.

Hioki MR8870-20 Specifications

Number of channels	2 analog channels + 4 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND
Measurement ranges	10 mV to 50 V/div (10 div full-scale), 12 ranges, Resolution: 1/100 of range
Max. rated voltage	Between terminals: 400 V　DC, Between terminal to earth: 300 V　AC, DC CAT II
Frequency characteristics	DC to 50 kHz (-3 dB)
Time axis (Memory mode)	100 µs to 5 min/div, 20 ranges,at 100 points/div resolution, three steps of time-axis magnification from ×2 to ×10, and 9 steps of time-axis compression from ×1/2 to ×1/1,000
Recording intervals (RMS mode)	1 ms to 1 min., 16 settings, sampling period: 200 μs (fixed) (for AC voltage/current, 1,000 RMS values/sec.), envelope mode always on Note: Only the maximum value and minimum value for each recording interval are recorded.
Measurement functions	Memory recorder (high speed recording), RMS recorder (50/60 Hz, DC only)
Memory capacity	12-bits × 2M-words/ch (1 word = 2 bytes)
Removable storage	CF card TYPE I slot ×1 (Up to 2 GB)
Display	4.3-inch WQVGA-TFT color LCD (480 × 272 dots)
Displayable languages	English, Japanese
Interfaces	USB 2.0 mini-B receptacle ×1, Functionality: Connect the instrument to a PC to send files on the CF card to the PC. The instrument cannot be controlled from a PC.
Printer	N/A
Power supply	AC Adapter Z1005: 100 to 240 V　AC (50/60 Hz) , 30 VA max. (when using the AC adapter and charging the 9780 with the instrument) Battery Pack 9780: 3 VA, continuous operating time of approx. 2 hr. (25°C reference value; when used with the Z1005, the Z1005 takes priority), charging time of 200 min. using the AC adapter (25°C reference value) (option) External DC power: 10 to 16 V, 10 VA max. (connection cord of 3 m or less is available by special-order)
Dimensions and mass	176 mm (6.93 in.)W × 101 mm (3.98 in.)H × 41 mm (1.61 in.)D, 600 g (21.2 oz.) (with the Battery pack 9780 installed)
Included accessories	Instruction manual ×1, Measurement guide ×1, AC adapter Z1005 ×1, Strap ×1, USB cable L1003 ×1, Protection sheet 9809 ×1
