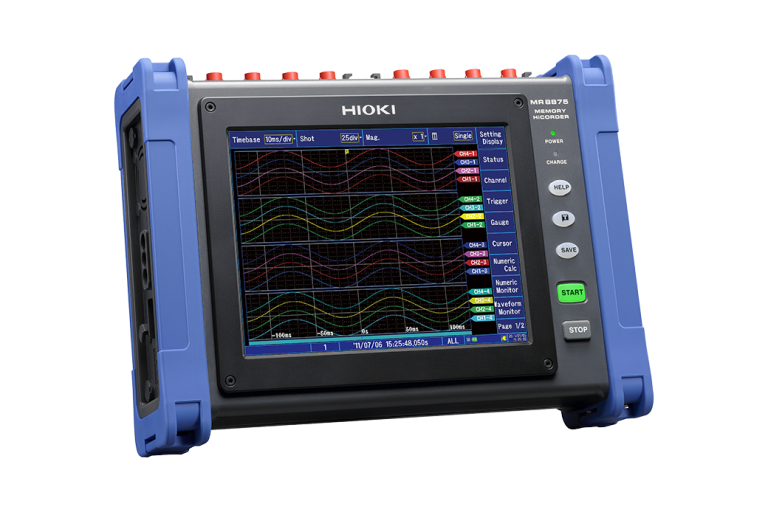

At Mohammad Mahdi Electronics, we offer the MEMORY HiCORDER MR8875 from Hioki, a leading manufacturer of electronic measurement and test equipment. This MEMORY HiCORDER is designed for recording and analyzing electrical signals in various applications.

The MEMORY HiCORDER MR8875 features up to 4 slots with Max. 16 analog channels and 8 logic channels, allowing for high-speed recording and real-time calculation between channels. It also supports external sampling with a 200 kS/s sampling rate.

Hioki MR8875-30 Key Features

The MEMORY HiCORDER MR8875 has several key features that make it an ideal choice for various applications.

Up to 4 slots with Max. 16 analog channels and 8 logic channels
21 ranges for time axis and 11 ranges for measurement ranges
External sampling possible with 200 kS/s sampling rate
Touch-panel operation with 8.4-inch SVGA-TFT color LCD
LAN and USB communication interfaces
Storage memory capacity of 32 M-words
Removable storage via SD card slot and USB 2.0 memory

Who Needs the Hioki MR8875-30?

The MEMORY HiCORDER MR8875 is designed for various applications, including recording and analyzing electrical signals in industrial, automotive, and medical fields.

It is ideal for research and development, quality control, and testing applications where high-speed recording and real-time calculation are required.

At mme-ae, we offer the MEMORY HiCORDER MR8875 from Hioki to help you meet your measurement and testing needs.

Hioki MR8875-30 Applications

The MEMORY HiCORDER MR8875 has various applications in different fields.

Industrial applications, such as recording and analyzing electrical signals in machinery and equipment
Automotive applications, such as recording and analyzing electrical signals in vehicles and components
Medical applications, such as recording and analyzing electrical signals in medical devices and equipment

Why Buy Hioki MR8875-30 from mme-ae?

Browse our recorders and dataloggers. Read more in our measurement guides.

At Mohammad Mahdi Electronics, we offer the MEMORY HiCORDER MR8875 from Hioki to help you meet your measurement and testing needs.

Our MEMORY HiCORDER MR8875 is designed for recording and analyzing electrical signals in various applications, and it features up to 4 slots with Max. 16 analog channels and 8 logic channels.

We also offer expert support and training to help you get the most out of your MEMORY HiCORDER MR8875.

Hioki MR8875-30 Specifications

Number of input units	Up to 4 slots
Number of channels	Max. 16 analog channels (Max. 60 channels when using the MR8902) + standard 8 logic channels + 2 pulse channels Note: For analog units, channels are isolated from each other and from the MR8875’s GND. For CAN unit ports or standard logic terminals or standard pulse terminals, all channels have common GND.
Measurement ranges (20 div full-scale)	5 mV to 10 V/div , 11 ranges (when using the MR8901), 500 mV to 50 V/div , 7 ranges (when using the MR8905), resolution : 1/1250 of range
Max. rated voltage	Between terminals: 150 V DC Between terminal to earth: 100 V AC, DC (when using the MR8901)
Frequency characteristics	DC to 100 kHz (-3 dB, when using the MR8901)
Time axis	200 µs to 5 min/div, 21 ranges, sampling period: 1/100 of range, External sampling possible
Max. sampling rate	[When using MR8901] 500 kS/s (2 μs period, all channels simultaneously) [When using MR8902] 10 ms (all input channels are scanned at high speed during every recording interval) [When using MR8903] 200 kS/s (5 μs period, all channels simultaneously) External sampling: 200 kS/s (5 μs period)
Measurement functions	High-speed function (high speed recording), Real-time calculation between channels, FFT calculation, or other functions
Storage memory capacity	Total 32 M-words (memory expansion: N/A, 8 MW each input unit) Note: 1 word = 2 bytes, therefore 32 Mega-words = 64 Mega-bytes. Note: Storage memory can be allocated depending on the number of channels used at each input unit
Removable storage	SD card slot ×1, USB 2.0 memory
Display	Touch-panel operation 8.4-inch SVGA-TFT color LCD (800 × 600 dots)
Communication interfaces	LAN: 100BASE-TX (DHCP, DNS supported, FTP server/ client, WEB server, send E-mail, command control) USB: USB 2.0 compliant, series mini-B receptacle ×1 (setting / measure with communication command, or file transfer SD card to PC), series A receptacle ×2 (USB memory, USB mouse/ key-board)
Power supply	1) AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 56 VA 2) Battery pack Z1003: 7.2 V DC, 36 VA, continuous operation time: 1 hour with back light ON (AC adapter has priority when used in combination with battery pack), Charges while installed in the MR8875, recharging time: 3 hours 3) External DC Power: 10 to 28 V DC, 56 VA
Dimensions and mass	298 mm (11.73 in.)W × 224 mm (8.82 in.)H × 84 mm (3.31 in.)D, 2.4 kg (84.7 oz.), (excluding input units and the Battery pack Z1003) Reference data: 3.47 kg/ 122.4 oz. (including the MR8901 ×4 units and the Battery pack Z1003)
Included accessories	Instruction manual ×1, Measurement guide ×1, AC adapter Z1002 ×1, Protection sheet ×1, USB cable L1003 ×1, Shoulder strap ×1
