Description

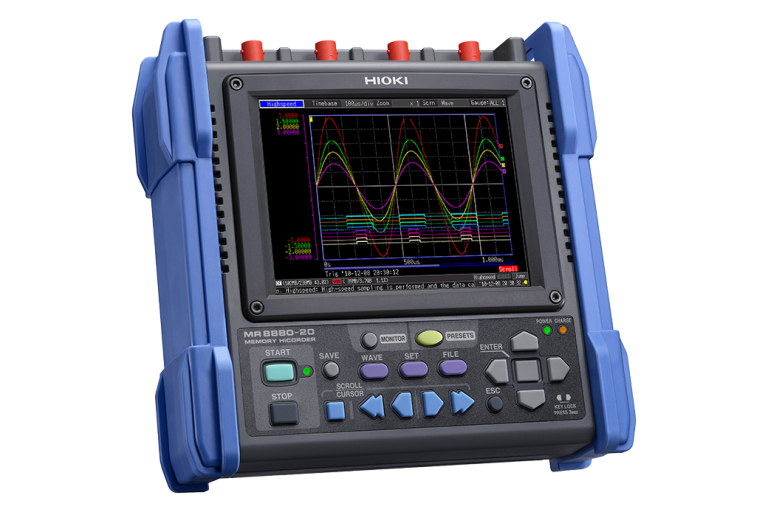

At MME, we offer the Hioki MR8880-20 MEMORY HiCORDER, a cutting-edge device designed for precise measurement and recording of electrical signals. With its advanced features and user-friendly interface, this recorder and datalogger is ideal for a wide range of applications, from electrical safety standards to industrial automation.

Whether you’re a professional engineer or a researcher, the Hioki MR8880-20 is an essential tool for capturing and analyzing complex electrical signals. Its high-speed function allows for fast and accurate recording, while its real-time function enables simultaneous sampling in all channels.

Hioki MR8880-20 Key Features

The Hioki MR8880-20 boasts an impressive array of features, including:

4 analog channels + 8 logic channels (standard)
Isolated analog channels, isolated input and frame, logic has common GND
Measurement ranges: 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range
RMS value mode: 30 Hz to 10 kHz, Crest factor: 2
Max. rated voltage: 600 V AC/DC, CAT III; 300 V AC/DC CAT IV
Frequency characteristics: DC to 100 kHz (±3dB)
Time axis: 100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range
Recording intervals: 100 µs to 1 minute, 19 selections

Who Needs the Hioki MR8880-20?

The Hioki MR8880-20 is designed for professionals and researchers who require precise measurement and recording of electrical signals. Its advanced features and user-friendly interface make it an ideal tool for a wide range of applications, including:

Electrical safety standards

Industrial automation

Research and development

Quality control

Hioki MR8880-20 Applications

The Hioki MR8880-20 is suitable for a variety of applications, including:

Electrical safety standards

Industrial automation

Research and development

Quality control

Why Buy Hioki MR8880-20 from MME?

Hioki MR8880-20 Specifications

Number of channels	4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND
Measurement ranges (10 div full-scale)	4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range RMS value mode: 30 Hz to 10 kHz, Crest factor: 2
Max. rated voltage	Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV
Frequency characteristics	DC to 100 kHz (±3dB)
Time axis (High-speed function)	100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range
Recording intervals (Real-time function)	100 µs to 1 minute, 19 selections (simultaneous sampling in all channels)
Measurement functions	High-speed function (high speed recording) Real-time function (actual time recording)
Memory capacity	14-bits × 1M-words/ch (1 word = 2 bytes)
Removable storage	CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1
Printing	[Printer unit is option] 112 mm (4.41 in.) × 18 m (59.06 ft.), thermal paper roll, Recording speed : 10 mm (0.39 in.)/sec Note: Printing is not supported when using alkaline batteries
Display	5.7-inch VGA-TFT color LCD (640 × 480 dots)
Displayable languages	English, Japanese, Chinese
Communication interfaces	USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control
Power supply	AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing) Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON) LR6 (AA) alkaline batteries ×8, Continuous use 40 minutes, (with back-light ON, cannot be used with the Printer unit) DC power supply: 10 to 28 V DC
Dimensions and mass	205 mm (8.07 in.)W × 199 mm (7.83 in.)H × 67 mm (2.64 in.)D, 1.66 kg (58.6 oz.) (with the Battery pack installed) When printer is combined – with main unit: 303 mm (11.93 in.)W × 199 mm (7.83 in.)H × 67 mm (2.64 in.)D, 2.16 kg (76.2 oz.) (with the Battery pack installed)
Included accessories	Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable L1003 ×1
