Description

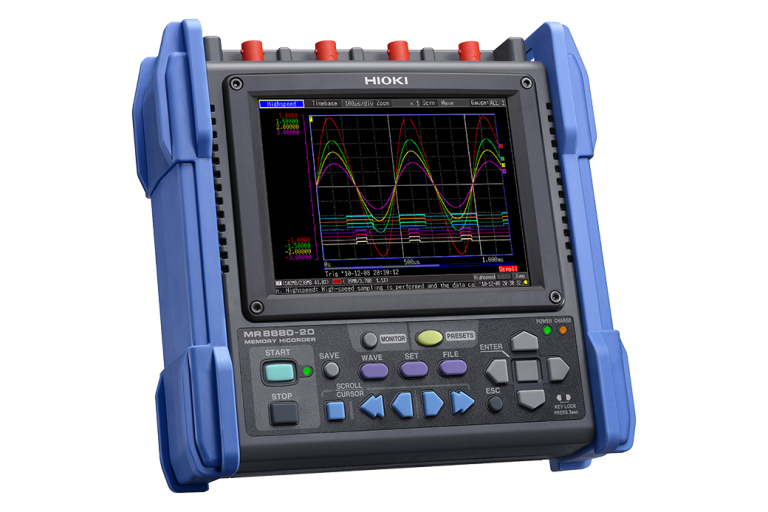

At Mohammad Mahdi Electronics, we offer the Hioki MR8880-21 MEMORY HiCORDER for precise measurement and data storage. This device features 4 analog channels + 8 logic channels for comprehensive measurement, making it ideal for various applications.

With its 14-bits × 1M-words/ch memory capacity, the MR8880-21 can store detailed data for further analysis. The device also comes with a CF card slot and USB 2.0 memory for flexible data transfer, ensuring seamless integration with your existing systems.

Hioki MR8880-21 Key Features

The Hioki MR8880-21 MEMORY HiCORDER boasts a range of key features, including:

4 analog channels + 8 logic channels for comprehensive measurement.
14-bits × 1M-words/ch memory capacity for detailed data storage.
CF card slot and USB 2.0 memory for flexible data transfer.
5.7-inch VGA-TFT color LCD for clear display.
Real-time and high-speed recording for precise measurement.
AC adapter and battery pack for convenient power supply.

Who Needs the Hioki MR8880-21?

The Hioki MR8880-21 MEMORY HiCORDER is designed for professionals who require precise measurement and data storage. This device is ideal for various applications, including:

Electrical engineers, researchers, and technicians who need to measure and record electrical signals.

Manufacturers who require detailed data storage for quality control and assurance.

Researchers who need to collect and analyze data for scientific studies.

Hioki MR8880-21 Applications

The Hioki MR8880-21 MEMORY HiCORDER has a wide range of applications, including:

Electrical measurement and recording.
Data storage and analysis.
Research and development.
Quality control and assurance.

Why Buy Hioki MR8880-21 from Mohammad Mahdi Electronics?

Browse our recorders and dataloggers. Read more in our measurement guides.

At Mohammad Mahdi Electronics, we offer the Hioki MR8880-21 MEMORY HiCORDER at competitive prices, along with excellent customer service and support. Our team of experts can help you choose the right device for your needs and provide training and maintenance services to ensure optimal performance.

Whether you’re looking for a reliable measurement device or a comprehensive data storage solution, the Hioki MR8880-21 MEMORY HiCORDER is an excellent choice. Contact us today to learn more about this device and how it can benefit your business.

Hioki MR8880-21 Specifications

Number of channels	4 analog channels + 8 logic channels (standard) Note: Isolated analog channels, isolated input and frame, logic has common GND
Measurement ranges (10 div full-scale)	4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range RMS value mode: 30 Hz to 10 kHz, Crest factor: 2
Max. rated voltage	Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV
Frequency characteristics	DC to 100 kHz (±3dB)
Time axis (High-speed function)	100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range
Recording intervals (Real-time function)	100 µs to 1 minute, 19 selections (simultaneous sampling in all channels)
Measurement functions	High-speed function (high speed recording) Real-time function (actual time recording)
Memory capacity	14-bits × 1M-words/ch (1 word = 2 bytes)
Removable storage	CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1
Printing	[Printer unit is option] 112 mm (4.41 in.) × 18 m (59.06 ft.), thermal paper roll, Recording speed : 10 mm (0.39 in.)/sec Note: Printing is not supported when using alkaline batteries
Display	5.7-inch VGA-TFT color LCD (640 × 480 dots)
Displayable languages	English, Japanese, Chinese
Communication interfaces	USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control
Power supply	AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing) Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON) LR6 (AA) alkaline batteries ×8, Continuous use 40 minutes, (with back-light ON, cannot be used with the Printer unit) DC power supply: 10 to 28 V DC
Dimensions and mass	205 mm (8.07 in.)W × 199 mm (7.83 in.)H × 67 mm (2.64 in.)D, 1.66 kg (58.6 oz.) (with the Battery pack installed) When printer is combined – with main unit: 303 mm (11.93 in.)W × 199 mm (7.83 in.)H × 67 mm (2.64 in.)D, 2.16 kg (76.2 oz.) (with the Battery pack installed)
Included accessories	Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable L1003 ×1
