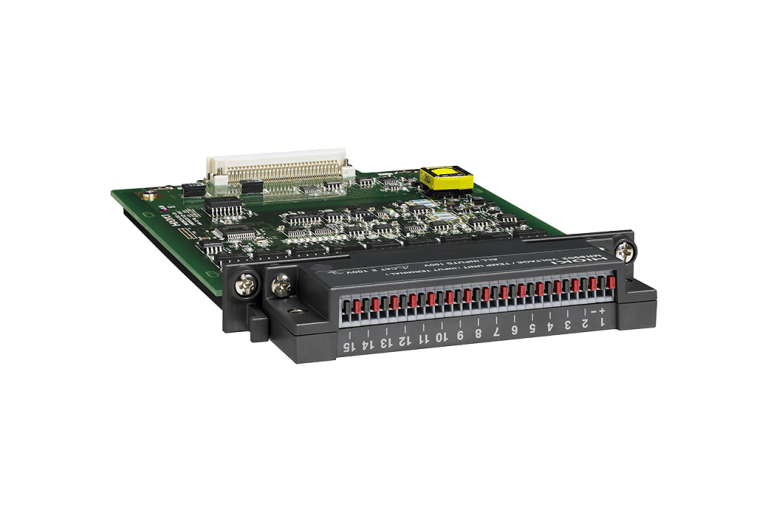

Hioki MR8902 Voltage/Temp Unit — Electrical Recorder and Datalogger

At mme-ae, we offer the Hioki MR8902 Voltage/Temp Unit, a versatile and reliable electrical recorder and datalogger designed for various applications. Whether you’re working in the field or in a laboratory setting, this unit is perfect for measuring voltage and temperature with high accuracy.

With its compact design and lightweight construction, the Hioki MR8902 is easy to carry and use, making it an ideal choice for professionals and hobbyists alike. The unit features 15 channels for voltage/temperature measurement, allowing you to collect data from multiple sources simultaneously.

Hioki MR8902 Key Features

The Hioki MR8902 offers a range of key features that make it an excellent choice for electrical measurement and data logging. Some of its key features include:

• Functions: selectable for each channel
• Input connectors: voltage/thermocouple input: push button terminal
• Recommended wire diameter: single-wire φ 0.32 mm to φ 0.65 mm, stranded wire 0.08 to 0.32 mm2 (conductor wire diameter min. φ 0.12 mm), AWG 28 to 22
• Input resistance: 1 MΩ
• Max. rated voltage to earth: 100 V AC, DC
• Voltage measurement ranges: 500 μV to 5 V/div, 9 ranges, full scale: 20 division
• Resolution: 1/1000 of measurement range (using 16-bit A/D converter)
• Accuracy: ±0.1 % f.s. (with digital filter ON, Zero position accuracy included)
• Temperature measurement range: Reference junction compensation: Internal/ External (selectable)
• Thermocouple broken-wire detection: ON/OFF (selection applies to entire unit)
• Thermocouple type: K, J, E, T, N, R, S, B, WRe5-26
• Digital filter: 50 Hz, 60 Hz, or OFF
• Data refresh rate: 10 ms (with filter OFF, burn-out detection OFF) 20 ms (with filter OFF, burn-out detection ON) 500 ms (with filter ON, data refresh rate: Fast) 2 s (with filter ON, data refresh rate: Normal)
• Max. allowable input: 100 V DC

Who Needs the Hioki MR8902?

The Hioki MR8902 is designed for professionals and hobbyists who require a reliable and accurate electrical recorder and datalogger. Whether you’re working in the field or in a laboratory setting, this unit is perfect for measuring voltage and temperature with high accuracy.

Some of the industries that can benefit from the Hioki MR8902 include:

Electrical engineering

Power generation and distribution

Industrial automation

Research and development

Hioki MR8902 Applications

The Hioki MR8902 has a wide range of applications, including:

• Electrical measurement and data logging
• Power quality analysis
• Temperature measurement and control
• Industrial automation and control
• Research and development

Why Buy Hioki MR8902 from Mohammad Mahdi Electronics?

Browse our recorders and dataloggers. Read more in our measurement guides.

At Mohammad Mahdi Electronics, we offer the Hioki MR8902 at a competitive price, along with excellent customer service and support. Our team of experts is always available to help you with any questions or concerns you may have.

Whether you’re looking for a reliable electrical recorder and datalogger or just need some advice on which product to choose, we’re here to help. Contact us today to learn more about the Hioki MR8902 and how it can benefit your business or project.

Hioki MR8902 Specifications
