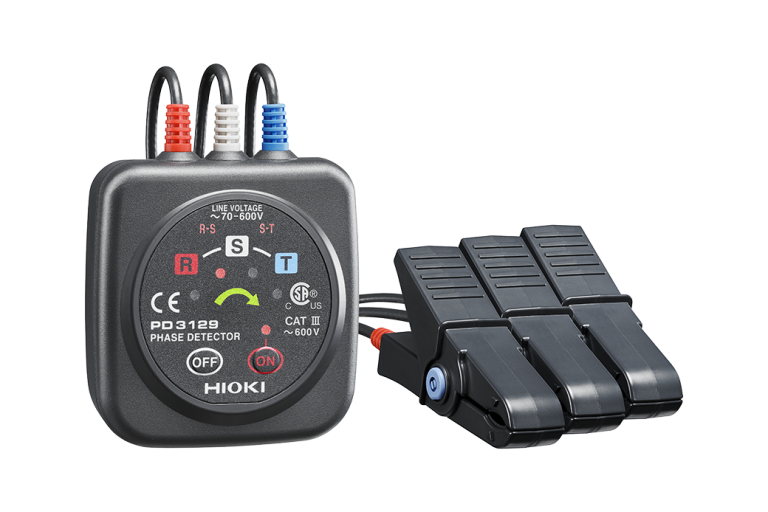

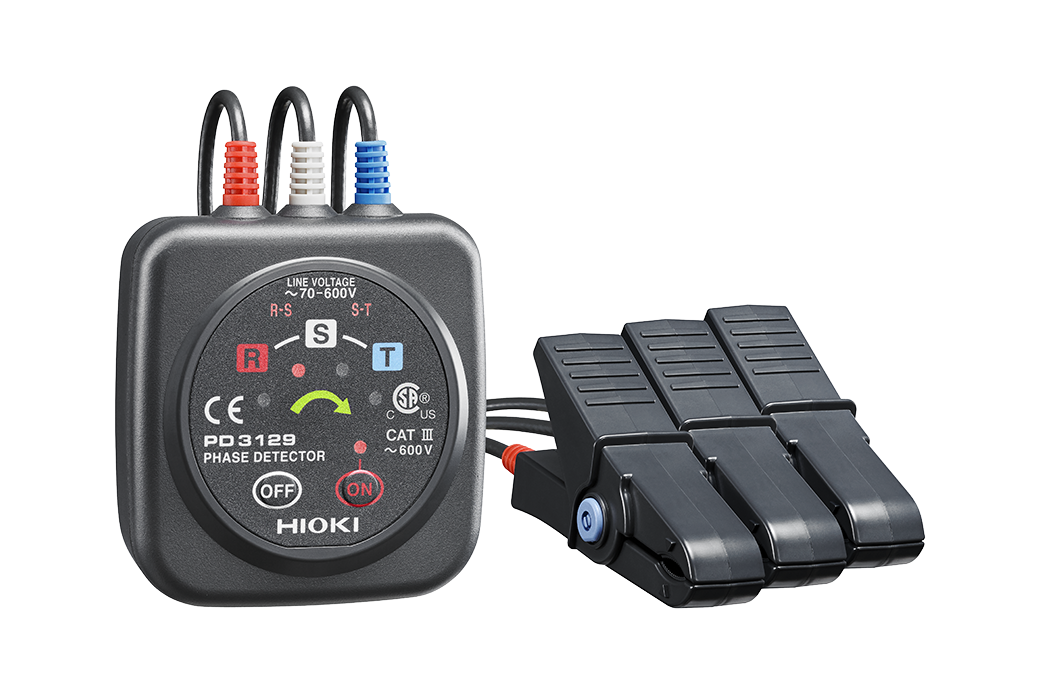

At Mohammad Mahdi Electronics, we offer the Hioki PD3129-31 Phase Detector, a reliable and accurate tool for electrical professionals. This phase detector is designed to measure phase angles and detect voltage levels in electrical systems.

With its static induction voltage detection method, the Hioki PD3129-31 can accurately measure voltage levels from 70 to 600 V AC (50/60 Hz). The device also features a frequency range of 45 Hz to 66 Hz, making it suitable for a wide range of applications.

Hioki PD3129-31 Key Features

The Hioki PD3129-31 Phase Detector is equipped with a range of features that make it an essential tool for electrical professionals. These include:

Phase detection (positive and negative)
Voltage detection method: Static induction
Voltage range: 70 to 600 V AC (50/60 Hz) (sine wave, continuous input)
Frequency range: 45 Hz to 66 Hz
Display: Phase detection (4 LEDs, buzzer)
Battery check function: Power ON lamp (blinks for low battery)
Auto power off: 15 minutes of inactivity
Power supply: 2 x AA alkaline battery (LR6)

Who Needs the Hioki PD3129-31?

The Hioki PD3129-31 Phase Detector is designed for electrical professionals who need to measure phase angles and detect voltage levels in electrical systems. This includes electricians, electrical engineers, and maintenance personnel.

The device is suitable for a wide range of applications, including electrical safety testing, maintenance, and troubleshooting. Its accuracy and reliability make it an essential tool for any electrical professional.

Hioki PD3129-31 Applications

The Hioki PD3129-31 Phase Detector has a range of applications in electrical systems. These include:

Electrical safety testing
Maintenance and troubleshooting
Electrical system design and installation

Why Buy Hioki PD3129-31 from MME?

Browse our electrical instruments. Read more in our electrical safety standards guide. See other Hioki instruments.

At Mohammad Mahdi Electronics, we offer the Hioki PD3129-31 Phase Detector at competitive prices. Our team of experts can provide you with the support and guidance you need to get the most out of your device.

We also offer a range of accessories and services to support your electrical testing and measurement needs. Whether you’re a professional or a DIY enthusiast, we have the tools and expertise to help you get the job done.

Hioki PD3129-31 Specifications

Functions	Phase detection (positive and negative)
Voltage detection method	Static induction
Voltage range	70 to 600 V AC (50/60 Hz) (sine wave,continuous input)
Frequency range	45 Hz to 66 Hz
Object to be connected	2.4 mm (0.09 in) to 17 mm (0.67 in) of insulated wiring
Display	Phase detection :Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously
Battery check function	Power ON lamp: lights up (Power ON), blinks (Battery LOW)
Auto power off	Auto shut off if no activity is detected after power is turned ON for 15 minutes
Power supply	AA alkaline battery(LR6) x 2, Continuous use: 200 hr
Dimensions and mass	70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 200 g (7.1 oz), Cord length : 0.7 m (2.30 ft)
Included accessories	Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, AA alkaline battery(LR6) x 2
