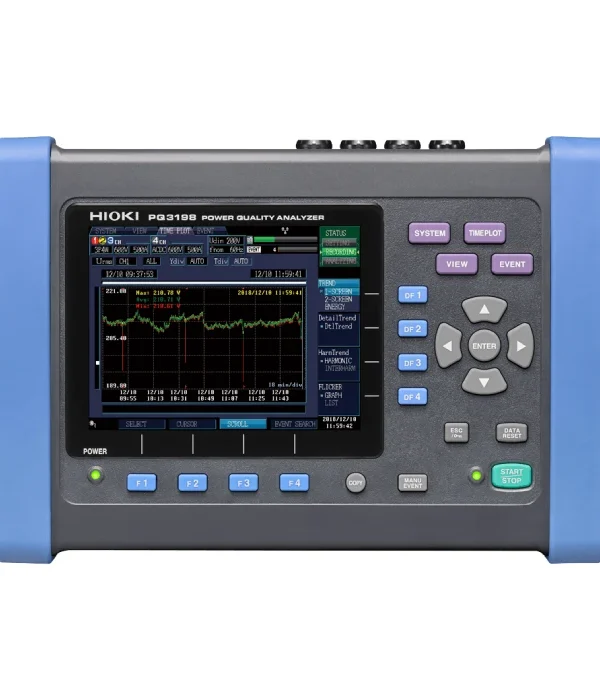

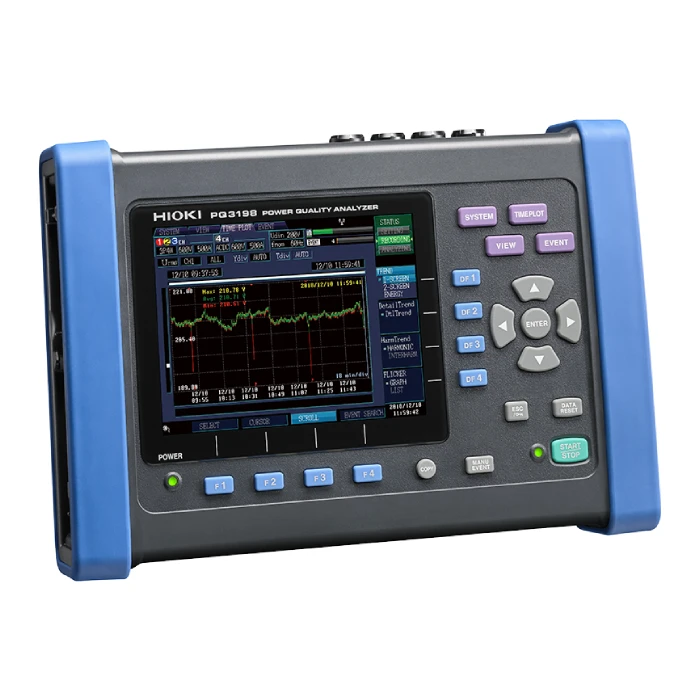

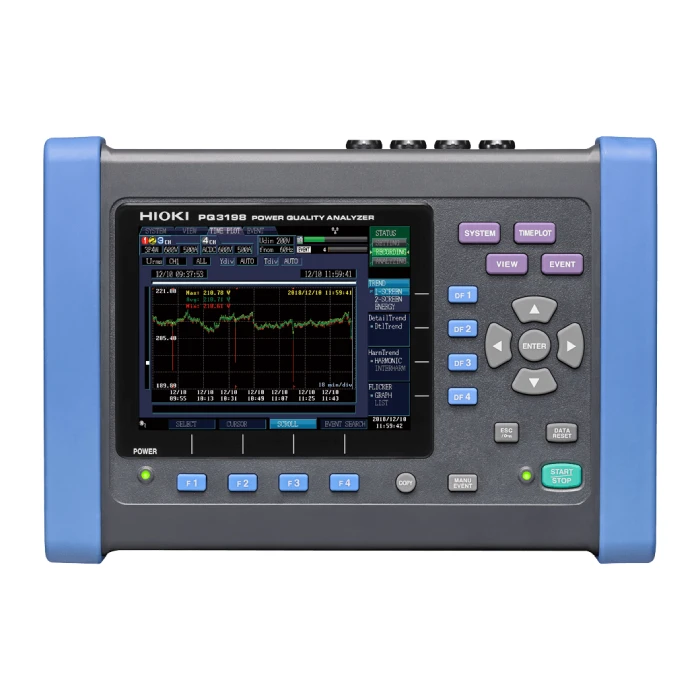

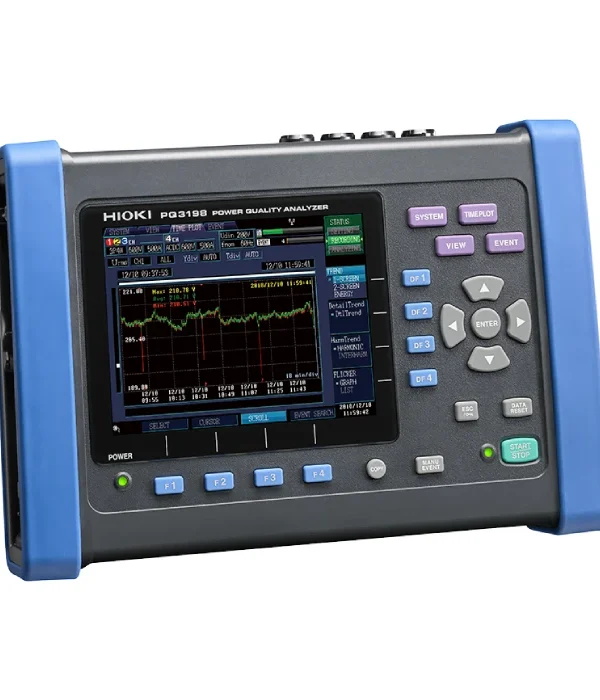

Hioki PQ3198-94 Power Quality Analyzer Kit

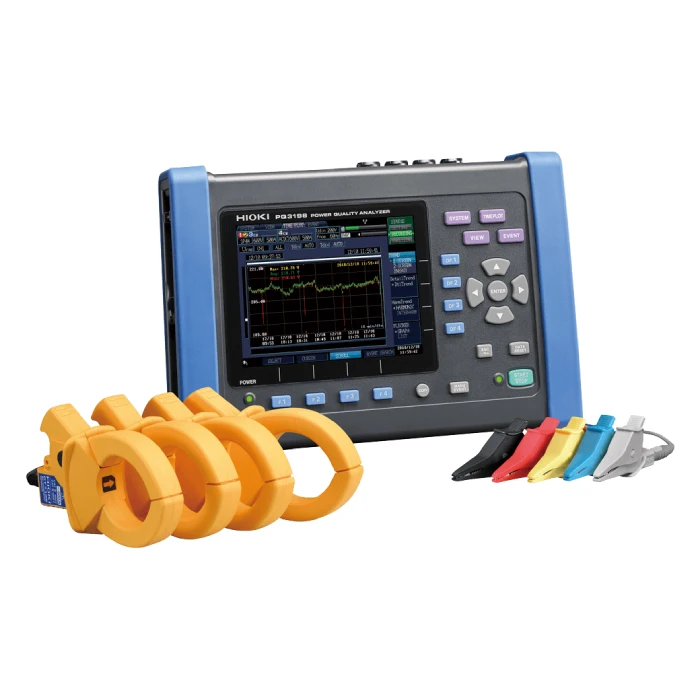

Overview The Hioki Hioki PQ3198-94 is a complete power quality analyzer kit built around the flagship PQ3198, supplied with four flexible 6000 A current sensors. Compliant with the strict IEC 61000-4-30 Ed.

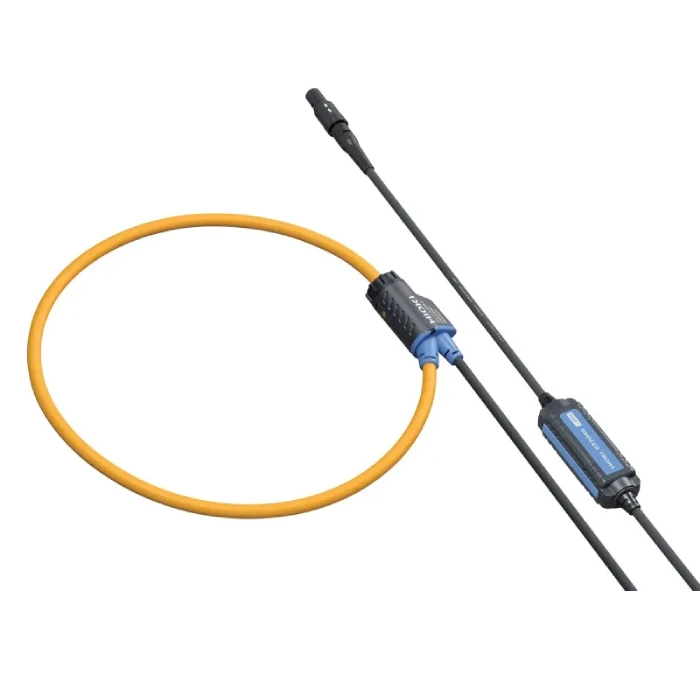

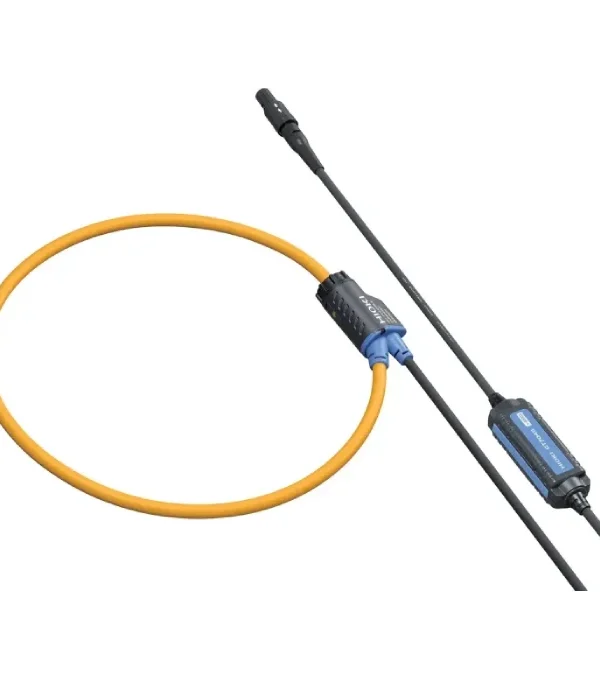

3 Class A standard, it detects power-supply anomalies with the highest reliability. The 180 mm-diameter flexible sensor loops wrap easily around thick cables and busbars in crowded cabinets where rigid clamps cannot fit. Sampling voltage at 2 MHz, the PQ3198 captures transient overvoltages as fast as 0.

Overview

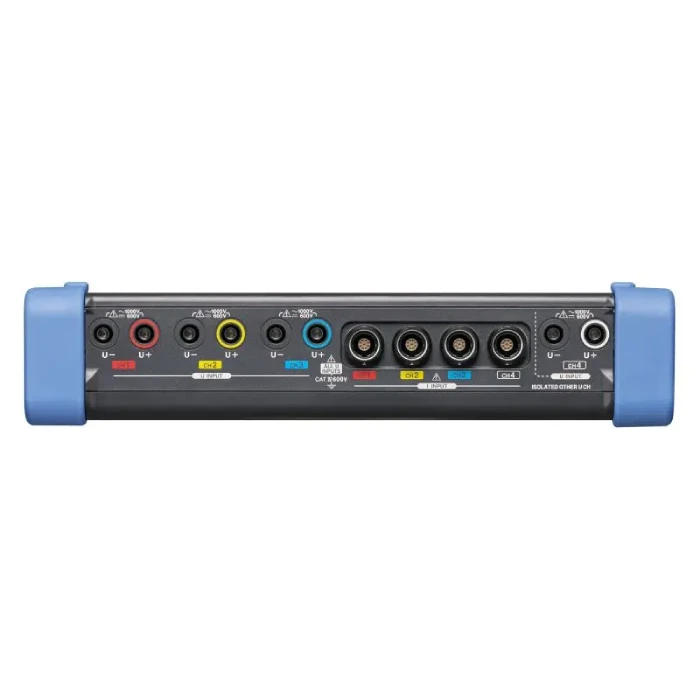

Overview The Hioki PQ3198-94 is a complete power quality analyzer kit built around the flagship PQ3198, supplied with four flexible 6000 A current sensors. Compliant with the strict IEC 61000-4-30 Ed. 3 Class A standard, it detects power-supply anomalies with the highest reliability. The 180 mm-diameter flexible sensor loops wrap easily around thick cables and busbars in crowded cabinets where rigid clamps cannot fit. Sampling voltage at 2 MHz, the PQ3198 captures transient overvoltages as fast as 0.5 µs (up to 6000 V peak), and its isolated voltage channels let you measure two circuits simultaneously — ideal for EV-charger primary and secondary measurement. Key Features Flagship PQ3198 analyzer, IEC 61000-4-30 Ed. 3 Class A Supplied with 4 flexible 6000 A current sensors (180 mm loops) Flexible loops fit thick cables and busbars in crowded cabinets 2 MHz voltage sampling captures 0.5 µs transients up to 6000 V peak Isolated voltage channels for two-circuit simultaneous measurement Ideal for EV-charger and high-power power-quality analysis Applications Class A power-quality analysis of high-current systems EV-charger primary and secondary measurement Transient-overvoltage and anoma

Key Features

• Official Hioki specifications — see table below.

Hioki PQ3198-94 Applications

• Production inspection — Use the PQ3198-94 where Hioki accuracy and repeatability matter on the line.
• R&D validation — Confirm behavior against official Hioki ranges for the PQ3198-94.
• Maintenance — Keep calibrated Hioki instruments ready for troubleshooting in UAE facilities.
• Incoming QA — Verify parts using manufacturer-stated measurement parameters.
• Lab benches — Pair with compatible Hioki fixtures or probes when required.

Hioki PQ3198-94 Specifications

Specifications available on request from Hioki documentation.

Buy the Hioki PQ3198-94 in the UAE from Mohammad Mahdi Electronics — request a quote on mme-ae.com for availability and delivery support from Mohammad Mahdi Electronics / MME.
