Description

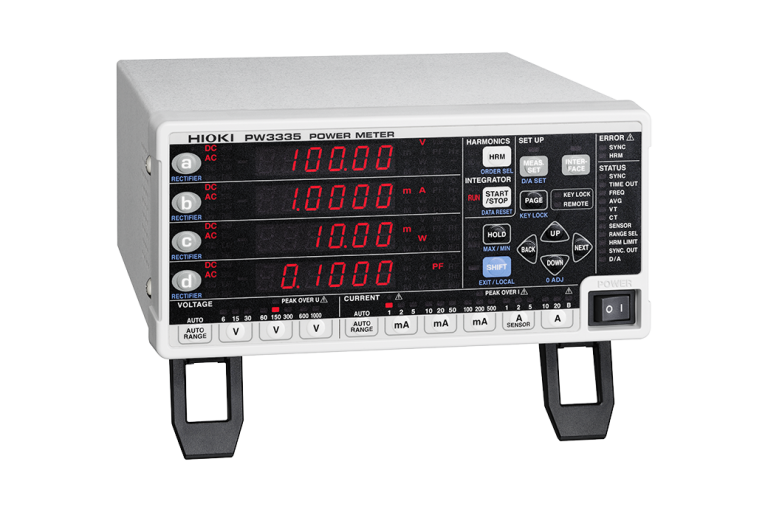

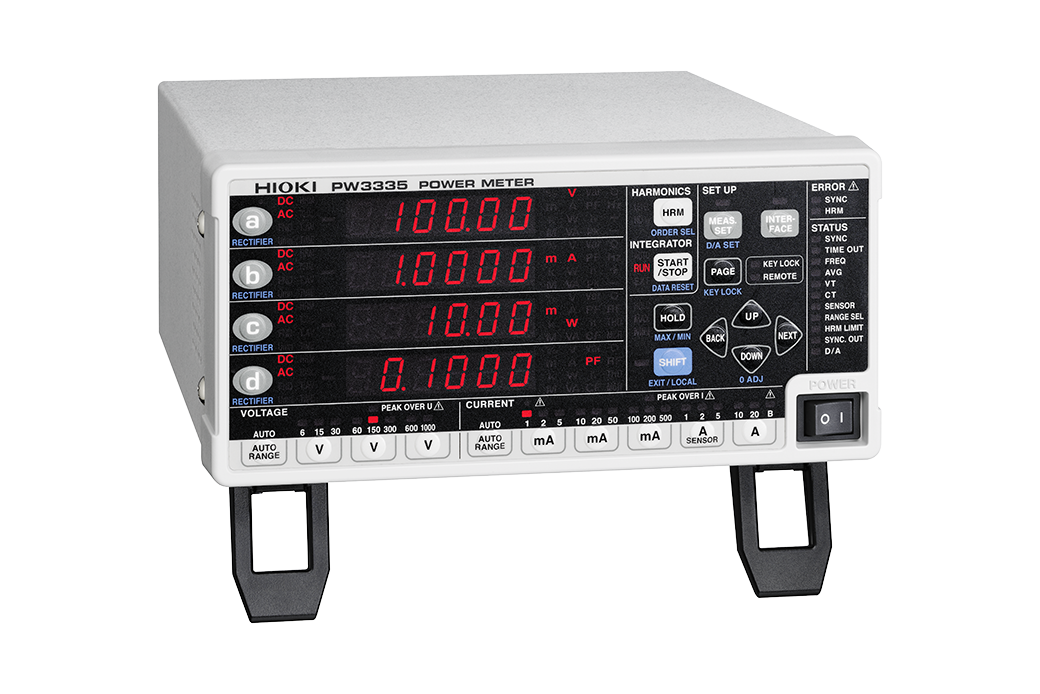

The Hioki PW3335-02 POWER METER is a versatile and accurate instrument for measuring power in various applications. With its ability to measure single-phase/two-wires, it is ideal for use in power quality analyzers and other electrical systems.

At MME, we understand the importance of accurate power measurements. That’s why we offer the Hioki PW3335-02 POWER METER, which features 14 ranges of current and 8 ranges of voltage measurement.

Hioki PW3335-02 Key Features

The Hioki PW3335-02 POWER METER offers a range of key features that make it an ideal choice for power measurements. These include:

Harmonic analysis up to the 50th order with total harmonic distortion measurement.
Integration measurement with 10,000 hours of data storage.
Basic accuracy of ±0.1% rdg. ±0.1% f.s.
DC to 100 kHz frequency characteristics.
7 channels of D/A output for waveform and level output.

Who Needs the Hioki PW3335-02?

The Hioki PW3335-02 POWER METER is ideal for use in a range of applications, including Hioki instruments and other electrical systems. It is particularly useful for measuring power in single-phase/two-wires systems.

At Mohammad Mahdi Electronics, we understand the importance of accurate power measurements. That’s why we offer the Hioki PW3335-02 POWER METER, which is designed to provide reliable and accurate measurements in a range of applications.

Hioki PW3335-02 Applications

The Hioki PW3335-02 POWER METER has a range of applications, including:

Power quality analysis.
Electrical system monitoring.
Power measurement in single-phase/two-wires systems.

Why Buy Hioki PW3335-02 from MME?

At Mohammad Mahdi Electronics, we offer a range of benefits when you buy the Hioki PW3335-02 POWER METER from us. These include:

Accurate power measurements with the Hioki PW3335-02 POWER METER.

Reliable and durable construction.

Easy-to-use interface.

Range of applications, including power quality analysis and electrical system monitoring.

Competitive pricing.

Expert support and after-sales service.

Hioki PW3335-02 Specifications

Measurement lines	Single-phase/ two-wires
Measurement items	Voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, maximum current ratio, current integration, active power integration, integration time, voltage waveform peak value, current waveform peak value, voltage crest factor, current crest factor, time average current, time average active power, voltage ripple rate, current ripple rate
Harmonic parameters	Synchronization frequency range : 10 Hz to 640 Hz Maximum analysis order : 50th Harmonic voltage RMS value, harmonic current RMS value, harmonic active power, total harmonic voltage distortion, total harmonic current distortion, fundamental wave voltage, fundamental wave current, fundamental wave active power, fundamental wave apparent power, fundamental wave reactive power, fundamental wave power factor (displacement power factor), fundamental wave voltage current phase difference, harmonic voltage content percentage, harmonic current content percentage, harmonic active power content percentage (The following parameters can be downloaded as data with only PC communications : Harmonic voltage phase angle, harmonic current phase angle, harmonic voltage current phase difference)
Measurement ranges	[Voltage] AC/DC 6 V to 1000 V, 8 ranges [Current] AC/DC 1 mA to 20 A, 14 ranges [Power] 6.0000 mW to 20.000 kW (Depends on combination of voltage and current range) Effect of power factor : ±0.1% f.s. or less (45 to 66 Hz, at power factor = 0)
Integration measurement (Integration time up to 10,000 hours)	Switchable between fixed-range integration and auto-range integration. [Current] No. of displayed digits: 6 digits (from 0.00000 mAh, polarity-independent integration and sum value) [Active power] No. of displayed digits: 6 digits (from 0.00000 mWh, polarity-independent integration and sum value)
Input resistance (50/60 Hz)	[Voltage input terminal] 2 MΩ [Current input terminal] 520 mΩ or less (at 1 mA to 100 mA range), 15 mΩ or less (at 200 mA to 20 A range)
Basic accuracy (Active power)	±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at input < 50% f.s.) ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ input)
Display refresh rate	5 times/s to 20 seconds (depend on average times settings)
Frequency characteristics	DC, 0.1 Hz to 100 kHz
D/A output (-02/-04 models only)	7 channels (selectable from the following items): level output DC ±2 V f.s. or 5 V f.s., waveform output 1 V f.s., level output, instantaneous waveform output (voltage, current, active power), level output (apparent power, reactive power, power factor, or other), high-speed level output (voltage, current, active power)
Functions	[Rectification method] AC+DC, AC+DC Umn, AC, DC, FND, Auto-range, Average, VT or CT ratio settings, Synchronized control, MAX/MIN, and more
Logger connectivity	Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 1.1 and later, the PW3335-01 is not supported

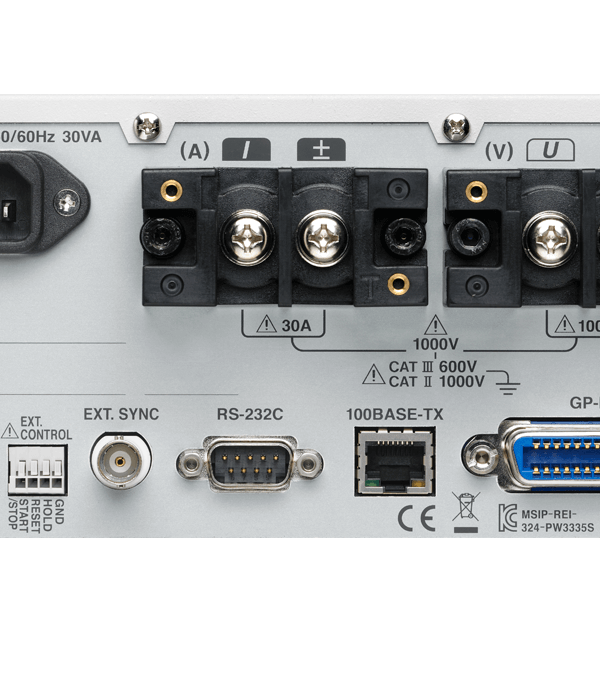

Interfaces	LAN (all models), RS-232C (except -01 model, for communication/LR8410 link), GP-IB (-01, -04 models only)
Power supply	100 V to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions and mass	210 mm (8.27 in)W × 100 mm (3.94 in)H × 245 mm (9.65 in)D, 3 kg (105.8oz)
Included accessories	Instruction manual ×1, power cord ×1, voltage and current input terminal safety cover ×2, safety cover installation screws (M3 × 6 mm) ×4
