Description

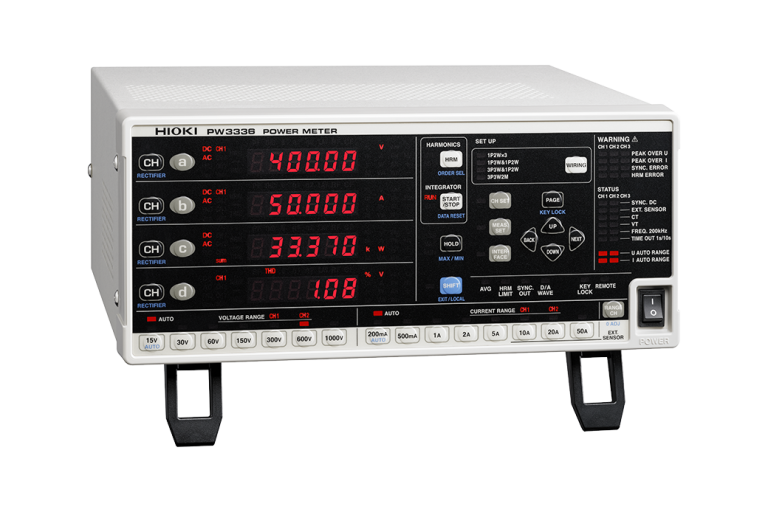

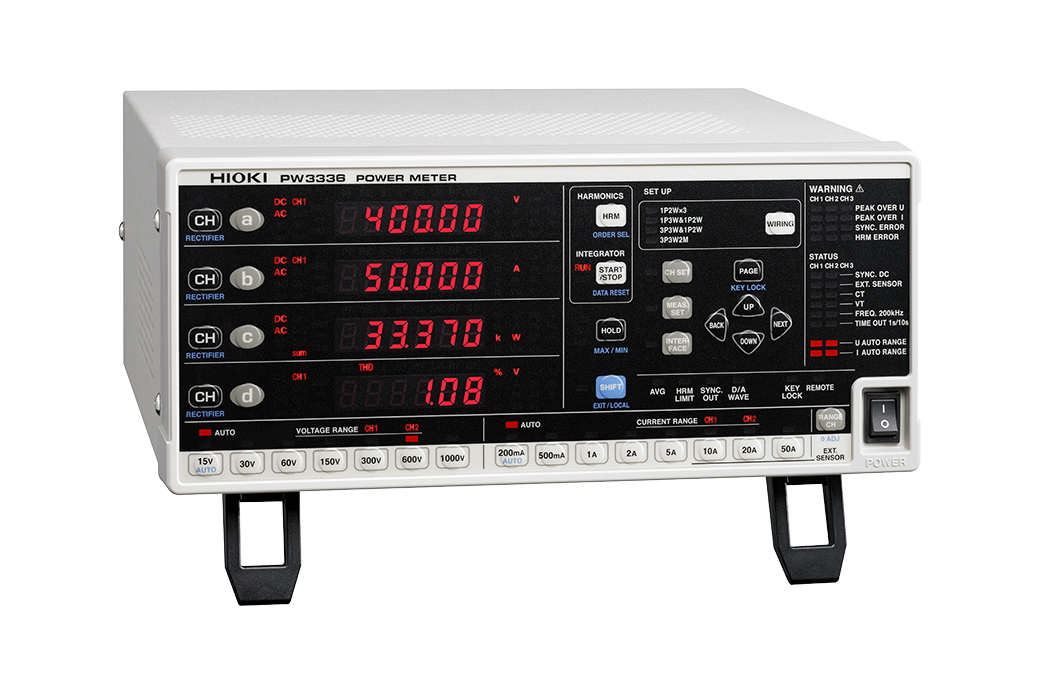

At MME, we offer the Hioki PW3336 POWER METER for precise power quality analysis. This advanced power meter is designed to measure various parameters, including voltage, current, active power, and reactive power, making it an essential tool for electrical engineers and technicians.

With its ability to measure single-phase 2-wires, single-phase 3-wires, and 3-phase 3-wires, the Hioki PW3336 is suitable for a wide range of applications, from residential to industrial settings. Its harmonic parameters, such as synchronization frequency range and analysis order up to 50th Harmonic voltage RMS value, make it an ideal choice for power quality analysis.

Hioki PW3336 POWER METER Key Features

The Hioki PW3336 power meter features a measurement range of [Voltage] 0.15 V to 1000 V AC/DC and [Current] 2 mA to 65 A AC/DC. It also offers integration measurement capabilities, including [Current] 6 digits (from 0.00000 mAh) and [Active power] 6 digits (from 0.00000 mWh).

Measurement lines: Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires
Measurement items: Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration
Harmonic parameters: Synchronization frequency range, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power
Measurement range: [Voltage] 0.15 V to 1000 V AC/DC, [Current] 2 mA to 65 A AC/DC
Integration measurement: [Current] 6 digits (from 0.00000 mAh), [Active power] 6 digits (from 0.00000 mWh)
Basic accuracy: ±0.1% rdg. ±0.1% f.s. (DC), ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz)

Who Needs the Hioki PW3336-01?

The Hioki PW3336 power meter is designed for electrical engineers and technicians who require precise power quality analysis. Its advanced features make it an ideal choice for a wide range of applications, including residential, commercial, and industrial settings.

Whether you’re working on a new project or troubleshooting an existing system, the Hioki PW3336 power meter is an essential tool to have in your arsenal. Its ease of use and advanced features make it a valuable asset for anyone working with electrical systems.

Hioki PW3336 POWER METER Applications

The Hioki PW3336 power meter is suitable for a wide range of applications, including:

Residential power quality analysis
Commercial power quality analysis
Industrial power quality analysis
Power system design and development
Power system troubleshooting and maintenance

Why Buy Hioki PW3336 POWER METER from MME?

Browse our power quality analyzers. Read more in our best power quality analyzers.

At mme-ae, we offer the Hioki PW3336 POWER METER for precise power quality analysis. Our team of experts is dedicated to providing the best possible service and support to ensure that you get the most out of your purchase.

Whether you’re looking for a reliable power meter for your next project or need help troubleshooting an existing system, we’re here to help. Contact us today to learn more about the Hioki PW3336 POWER METER and how it can benefit your work.

Hioki PW3336 POWER METER Specifications

Measurement lines	Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, (voltage / current measurement range set for each wiring mode)
Measurement items	Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
Harmonic parameters	Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content % , Harmonic current content % , Harmonic active power content % (The following parameters can be downloaded as data during PC communication but not displayed: Harmonic voltage phase angle, Harmonic current phase angle, Harmonic voltage current phase difference)
Measurement range (*1)	[Voltage] 0.15 V to 1000 V AC/DC [Current] Direct input: 2 mA to 65 A AC/DC For AC/DC measurement using the CT6877A as an example: 4 A to 2000 A AC/DC (typical accuracy ±0.348%) For AC measurement using the CT9667-01 as an example: 10 A to 5000 A AC (typical accuracy ±2.6%)
Integration measurement (Integration time up to 10,000 hours)	[Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value) [Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
Input resistance (50/60 Hz)	[Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
Basic accuracy (Active power)	±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input < 50% f.s.) ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
Display refresh rate	5 times/s to 20 seconds (depend on average times settings)
Frequency characteristics	DC, 0.1 Hz to 100 kHz
D/A output (-02/-03 model only)	16 channels (selectable from following items), Level output DC ±2 V, Waveform output 1 V f.s. Level output, instantaneous waveform output (voltage, current, active power) Level output (apparent power, reactive power, power factor, or other) High-speed active power level output
Functions	[Rectification method] AC+DC, AC+DC Umn, AC, DC, FND, Auto-range, Average, VT or CT ratio settings, Synchronized control, MAX/MIN, or other functions

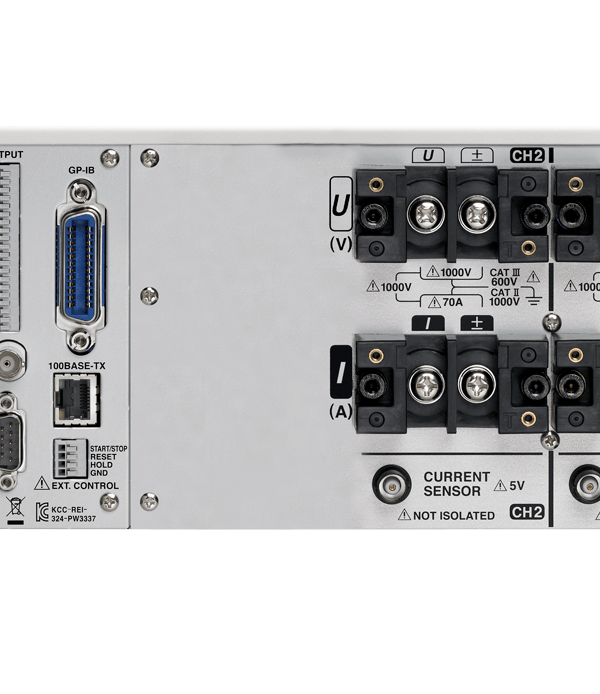

Interfaces	RS-232C / LAN standard, (-01/-03 model also includes GP-IB)
Power supply	100 to 240 V AC, 50/60 Hz, 40 VA max.
Dimensions and mass	305 mm (12.01 in) W × 132 mm (5.20 in) H × 256 mm (10.08 in) D, 5.2 kg (183.4 oz)
Included accessories	Instruction manual ×1, Measurement guide ×1, Power cord ×1
