Description

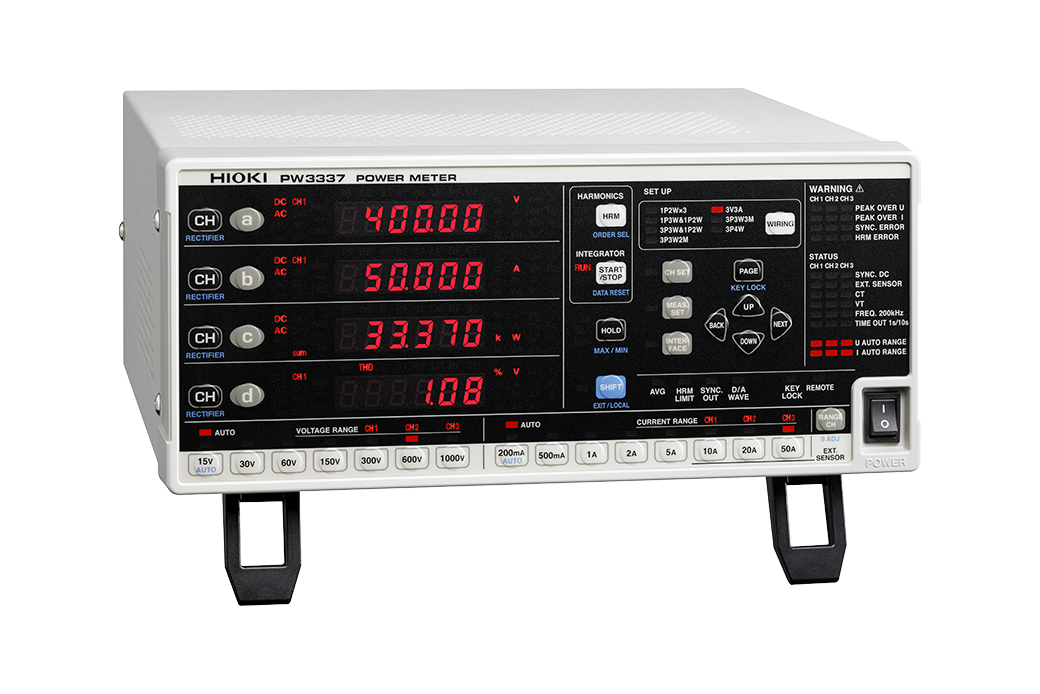

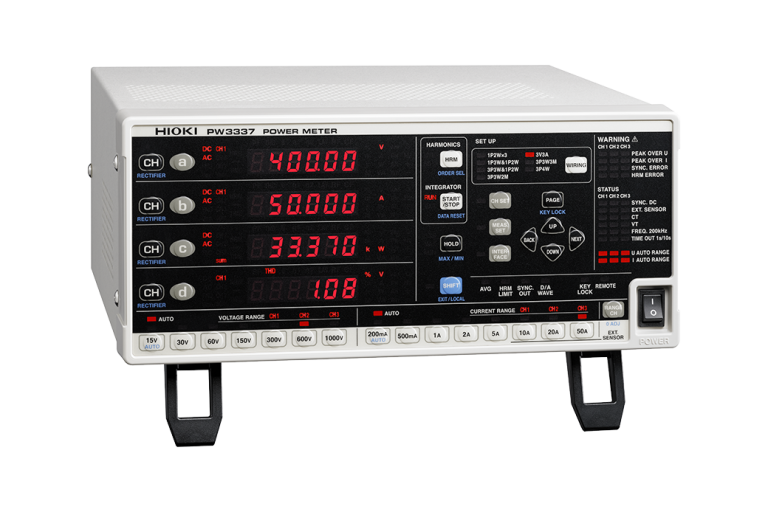

At Mohammad Mahdi Electronics, we offer the Hioki PW3337-03 POWER METER, a powerful tool for accurate power measurements. With its wide range of measurement lines and items, this power meter is ideal for a variety of applications, from power quality analysis to research and development.

The Hioki PW3337-03 POWER METER features harmonic analysis capabilities, allowing for in-depth power quality analysis and identification of potential issues. With a basic accuracy of ±0.1% rdg. ±0.1% f.s., this power meter provides high-precision measurement results.

Hioki PW3337-03 Key Features

The Hioki PW3337-03 POWER METER offers a range of key features, including:

Measurement lines: Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, 3-phase 4-wires
Measurement items: Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
Harmonic parameters: Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content %, Harmonic current content %, Harmonic active power content %
Measurement range: [Voltage] 0.15 V to 1000 V AC/DC, [Current] Direct input: 2 mA to 65 A AC/DC, For AC/DC measurement using the CT6877A as an example: 4 A to 2000 A AC/DC (typical accuracy ±0.348%), For AC measurement using the CT9667-01 as an example: 10 A to 5000 A AC (typical accuracy ±2.6%)
Integration measurement: [Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value), [Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
Input resistance: [Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
Basic accuracy: ±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
Display refresh rate: 5 times/s to 20 seconds (depends on average times settings)
Frequency characteristics: DC, 0.1 Hz to 100 kHz
D/A output: 16 channels (selectable)

Who Needs the Hioki PW3337-03?

The Hioki PW3337-03 POWER METER is ideal for a variety of applications, including:

Power quality analysis and research and development

Industrial and commercial power monitoring and control

Electrical engineering and consulting

Academic and research institutions

Hioki PW3337-03 Applications

The Hioki PW3337-03 POWER METER has a wide range of applications, including:

Power quality analysis
Research and development
Industrial and commercial power monitoring and control
Electrical engineering and consulting
Academic and research institutions

Why Buy Hioki PW3337-03 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki PW3337-03 POWER METER at a competitive price, with fast shipping and excellent customer service. We are a trusted supplier of Hioki instruments and offer a wide range of power quality analyzers and other electrical measurement equipment.

Whether you are looking for a power meter for power quality analysis, research and development, or industrial and commercial power monitoring and control, the Hioki PW3337-03 POWER METER is an excellent choice. Contact us today to learn more about this powerful tool and how it can benefit your business or research.

Hioki PW3337-03 Specifications

Measurement lines	Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, 3-phase 4-wires (voltage / current measurement range set for each wiring mode)
Measurement items	Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
Harmonic parameters	Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content % , Harmonic current content % , Harmonic active power content % (The following parameters can be downloaded as data during PC communication but not displayed: Harmonic voltage phase angle, Harmonic current phase angle, Harmonic voltage current phase difference)
Measurement range (*1)	[Voltage] 0.15 V to 1000 V AC/DC [Current] Direct input: 2 mA to 65 A AC/DC For AC/DC measurement using the CT6877A as an example: 4 A to 2000 A AC/DC (typical accuracy ±0.348%) For AC measurement using the CT9667-01 as an example: 10 A to 5000 A AC (typical accuracy ±2.6%)
Integration measurement (Integration time up to 10,000 hours)	[Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value) [Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
Input resistance (50/60 Hz)	[Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
Basic accuracy (Active power)	±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input < 50% f.s.) ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
Display refresh rate	5 times/s to 20 seconds (depends on average times settings)
Frequency characteristics	DC, 0.1 Hz to 100 kHz
D/A output (-02/-03 model only)	16 channels (selectable from following items), Level output DC ±2 V, Waveform output 1 V f.s. Level output, instantaneous waveform output (voltage, current, active power) Level output (apparent power, reactive power, power factor, or other) High-speed active power level output
Functions	[Rectification method] AC+DC, AC+DC Umn, AC, DC, FND, Auto-range, Average, VT or CT ratio settings, Synchronized control, MAX/MIN, or other functions

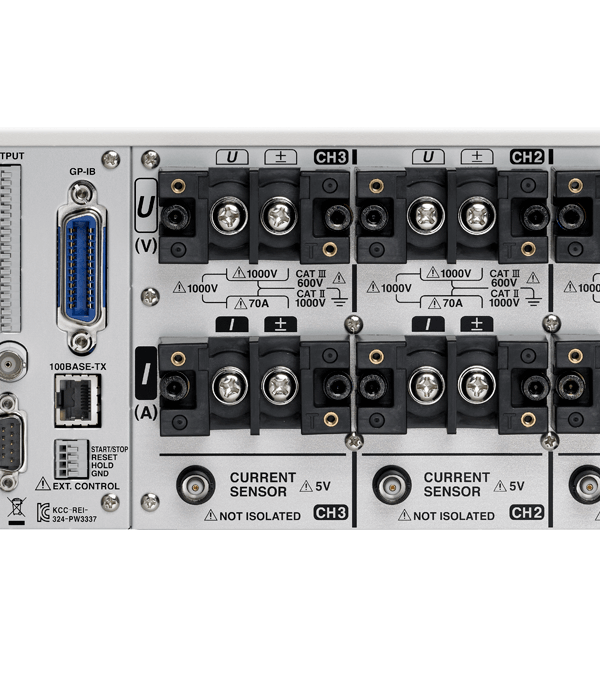

Interfaces	RS-232C / LAN standard, (-01/-03 model also includes GP-IB)
Power supply	100 to 240 V AC, 50/60 Hz, 40 VA max.
Dimensions and mass	305 mm (12.01 in) W × 132 mm (5.20 in) H × 256 mm (10.08 in) D, 5.6 kg (197.5 oz)
Included accessories	Instruction manual × 1, Measurement guide × 1, Power cord × 1
